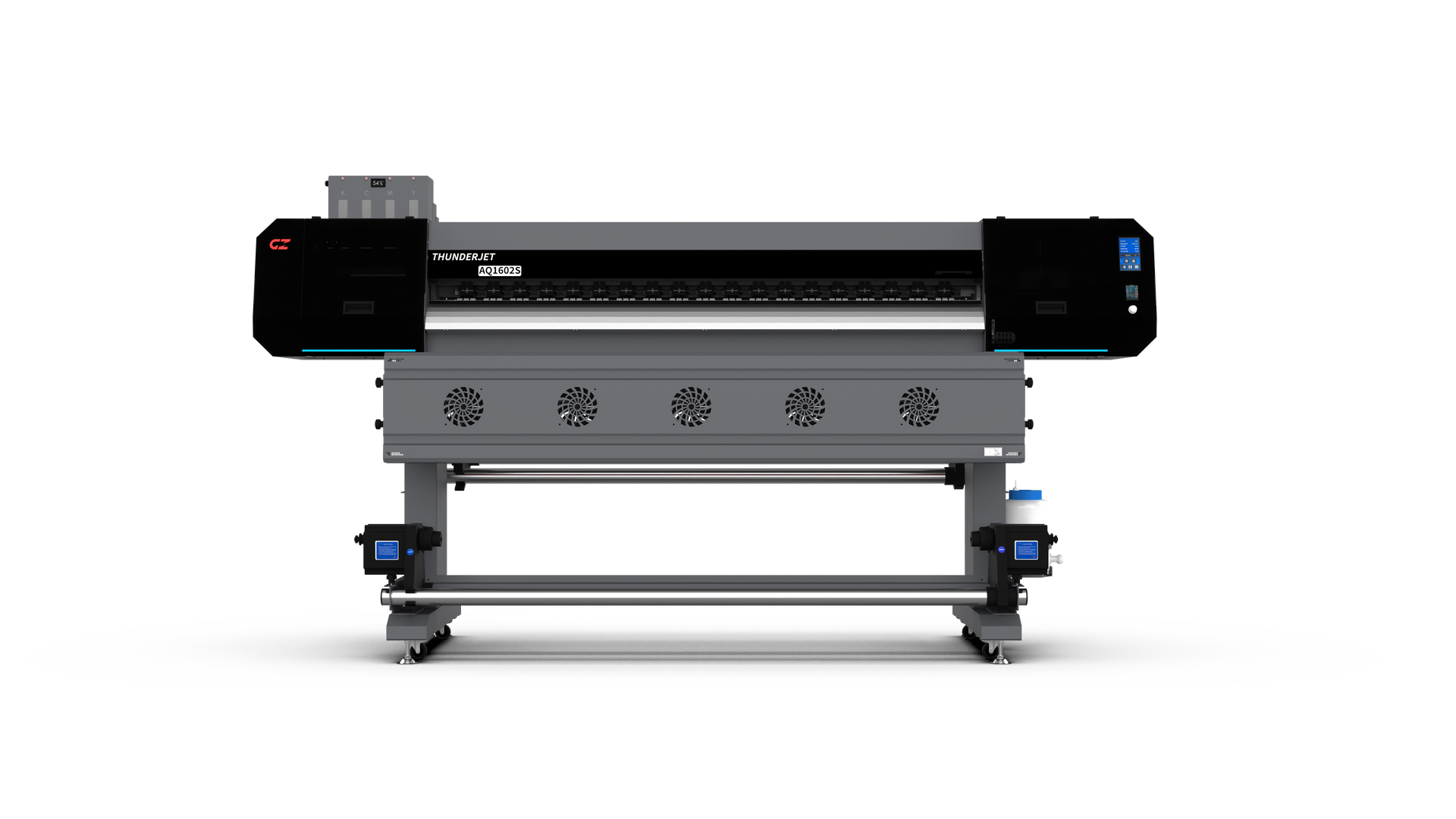

ThunderJet AQ1602S
Entry-Level 1.6m Eco-Solvent Printer
ThunderJet AQ1602S

Core Features

  • Dual Epson i3200-E1 heads  – double output capacity with sharp, vibrant image quality.
  • High-speed eco-solvent printing – up to 71 m²/h for banners, posters, and signage.
  • Optimised cleaning system – reduces downtime and extends print head life for reliability.
  • Intelligent heating unit – ensures stable media handling and strong ink adhesion.
  • GZ variable dot technology – produces smooth gradients, fine text, and rich colour depth.
  • Anti-collision unit – protects print heads and ensures reliable operation during long production runs.

ThunderJet AQ1602S

Core Features

Dual Epson i3200 heads

71 m²/h draft speed

Variable dot technology

EPI2-2 Years Durability Eco Solvent Ink

Intelligent heating system


Anti-collision protection

Specifications:

ThunderJet AQ1601S

Print Head:

Dual Epson i3200-E1 Print Head

Print Width:

Max. 1600mm Width

Ink:

EPI2-2 Years Durability Eco Solvent Ink

Media Type:

Banner, Coated PP, Vinyl, PVC film...

Colour
Config:

K.C.M.Y

Media System:

Precision Adjustable Stepping System

Ink Supply System:

Bulk Ink Supply System with Ink Cartridges

Drying System:

IR Dryer and Intelligent Heating Unit

Roll
Weight:

Max. 50kgs

Roll Diameter:

Max. 300mm

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Env:

Temp:        23℃ - 29℃

Humidity:  50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

N.W. / G.W. :

190kgs / 290 kgs

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 6.7A (Printer) + 14.6A (IR Dryer)

Dimensions:
(Installed / Packeded)

LxWxH(mm): 2760x810x1530 / 2920x1000x750

Printing Speeds

Draft:

360 x 1200 dpi     37㎡/h

Production:

360 x 1800 dpi     27㎡/h

High-Res:

720 x 1200 dpi     21㎡/h

Photo:

720 x 1800 dpi     17㎡/h
