UV Flatbed Solutions

GZ Australia’s UV printers deliver premium-quality printing on glass, acrylic, metal, and signage media. Equipped with Epson i3200 or Ricoh G5 industrial printheads and UV LED curing technology, they produce sharp, durable results using CMYK + White + Varnish layers. From compact flatbeds like the A3HD to large-format H1612EI, each machine offers instant drying, precision motion, and low-maintenance reliability. Ideal for Australian signmakers, packaging producers, and décor printers seeking long-lasting UV performance.

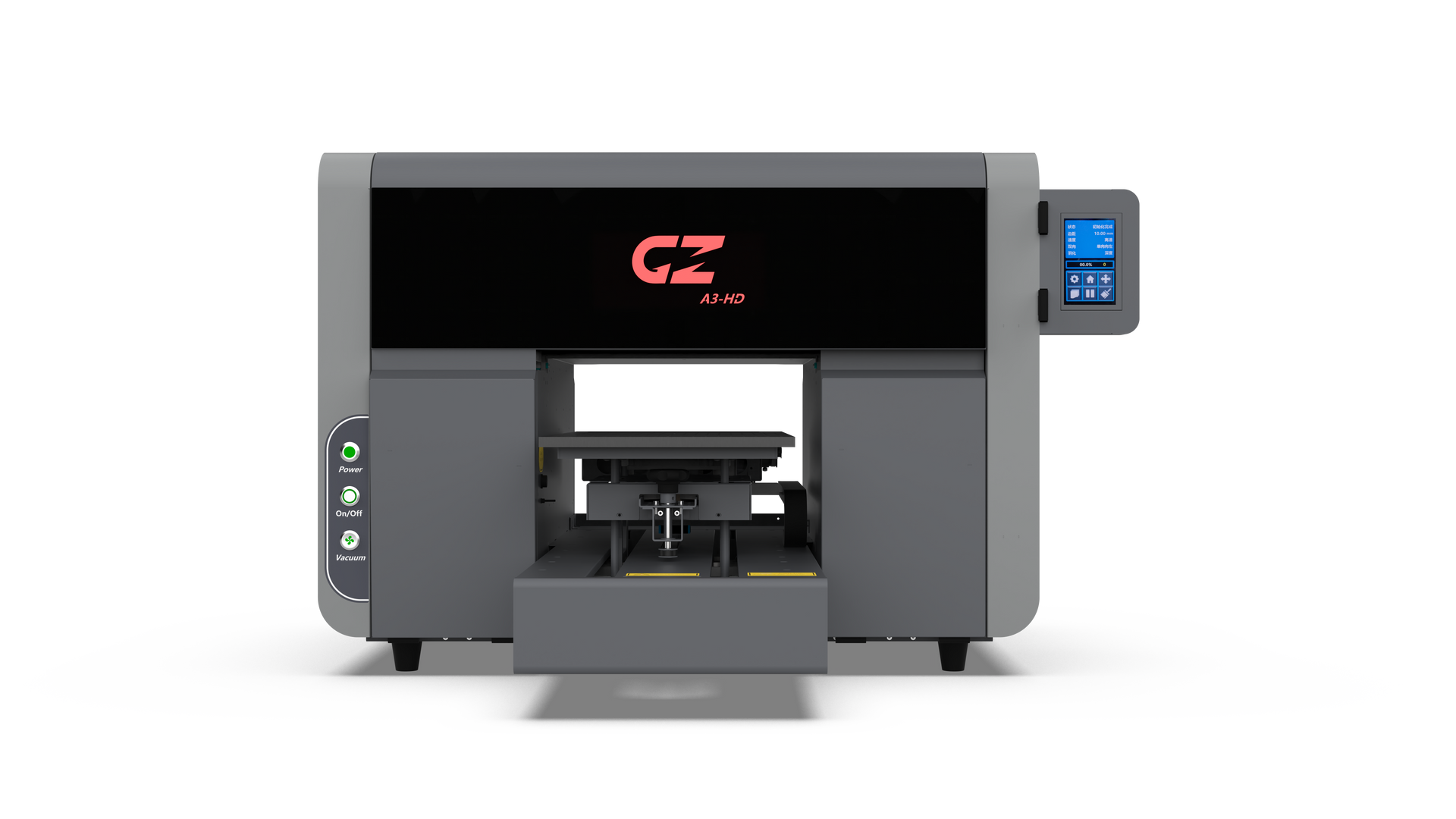

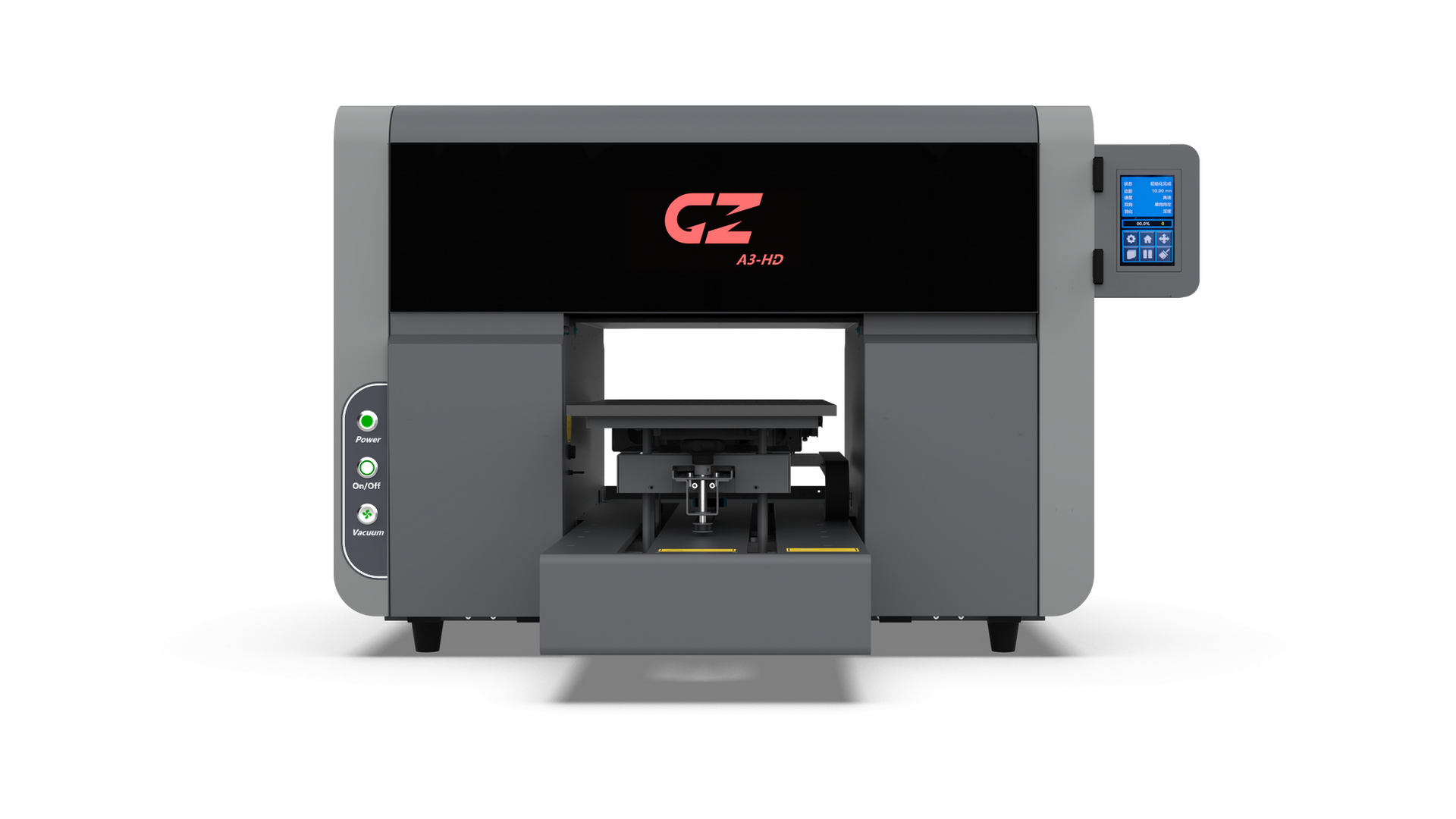

A3HD

Desktop A3 UV Flatbed Printer - Australia

  • Single Epson i3200-U1HD printhead, 8 channels
  • 300x420mm print bed, media up to 85mm thick
  • CMYK + White + Varnish for textured 2.5D effects
  • 720x1200 to 720x1800dpi, Greenguard Gold REI-3 ink
  • Laser auto height detection, rotary kit for bottles and tumblers
Learn More

H6090EP

600x900mm UV Flatbed Printer - Australia

  • 3x Epson i1600-U1 printheads
  • 600x900mm vacuum table, media up to 180mm thick
  • CMYK + White + Varnish configuration
  • 720x900 to 720x1200dpi, LED UV curing
  • 4.2 min/sheet draft speed in CMYK + White + Varnish
Learn More

H6090EI

600x900mm Industrial UV Flatbed - Australia

  • 3x Epson i3200-U1 printheads, about 45% faster than i1600
  • 600x900mm vacuum table, media up to 180mm thick
  • CMYK + White + Varnish, 720x1200 to 720x1800dpi
  • Laser media detector and constant-temperature head heating
  • LED UV curing, anti-collision protection
Learn More

H9060EI

900x600mm Industrial UV Flatbed - Australia

  • 2-3x Epson i3200 printheads
  • 900x600mm vacuum table for wide rigid substrates
  • White + CMYK + Varnish configuration
  • Top-down laser calibration with anti-collision protection
  • Built-in 75cm cylinder kit for bottles and tumblers
Learn More

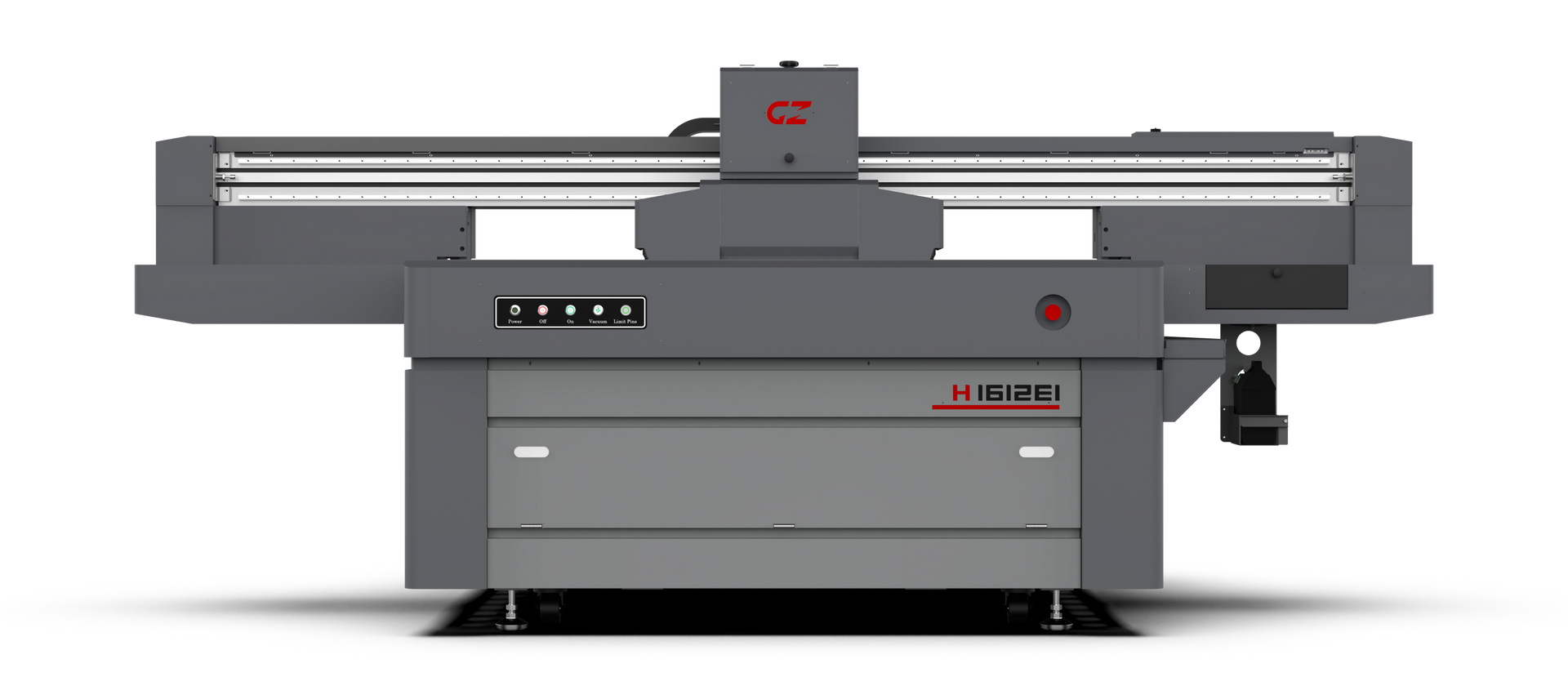

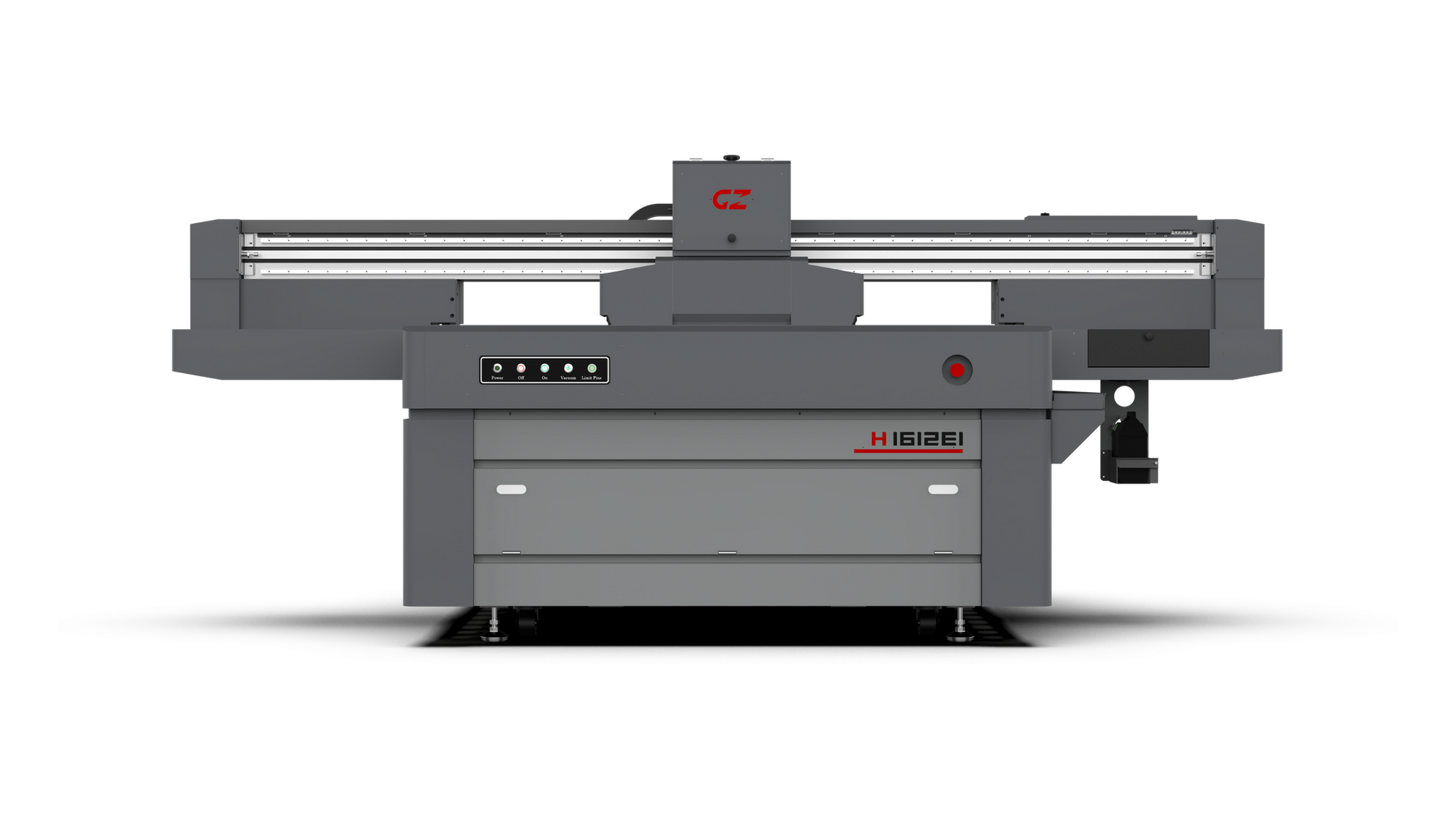

H1612EI

1.6x1.2m Large Format UV Flatbed - Australia

  • 2-4x Epson i3200-U1 printheads
  • 1600x1200mm vacuum table, media up to 150mm thick
  • CMYK + White + Varnish, 2.5D texture printing
  • Up to 59.8 sqm/h draft in 4xKCMY configuration
  • LED UV curing, anti-collision protection
Learn More

H1612GI

1.6x1.2m Ricoh UV Flatbed - Australia

  • 2-4x Ricoh G5i Hi-jetting printheads
  • 1600x1200mm vacuum table, media up to 150mm thick
  • CMYK + White + Varnish configuration
  • Up to 34 sqm/h draft in 4xKCMY configuration
  • LED UV curing, anti-collision protection
Learn More

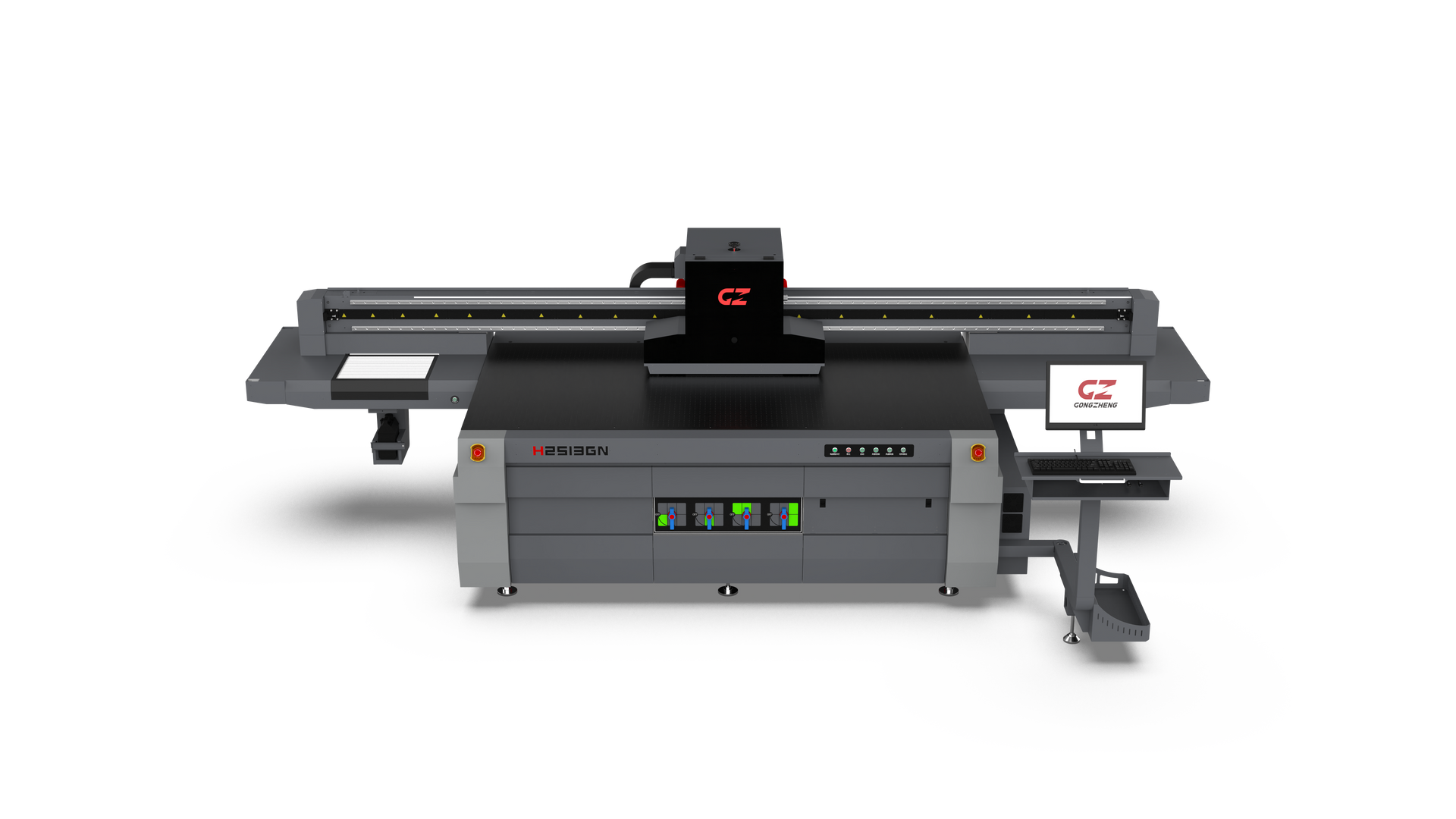

H2513GN

Industrial 2.5x1.3m UV Flatbed - Australia

  • 4-12 Ricoh Gen6 printheads, scalable configuration
  • 2500x1300mm print area on a 2650x1325mm vacuum table
  • Substrates up to 100mm thick
  • RKA-3 UV ink, Greenguard Gold certified
  • Dual water-cooled LED UV curing, anti-collision and auto height detection
Learn More

H2513GN PRO

Industrial 2.5x1.3m UV Flatbed - H2513GN PRO - Australia

  • 7-18 Ricoh Gen6 printheads, scalable configuration
  • 2500x1300mm print area, substrates up to 100mm thick
  • 108 sqm/h draft speed (6xKCMY), 84 sqm/h production
  • RKA-3 UV ink, Greenguard Gold certified
  • Dual water-cooled LED UV curing, EU standard safety light curtains
Learn More
