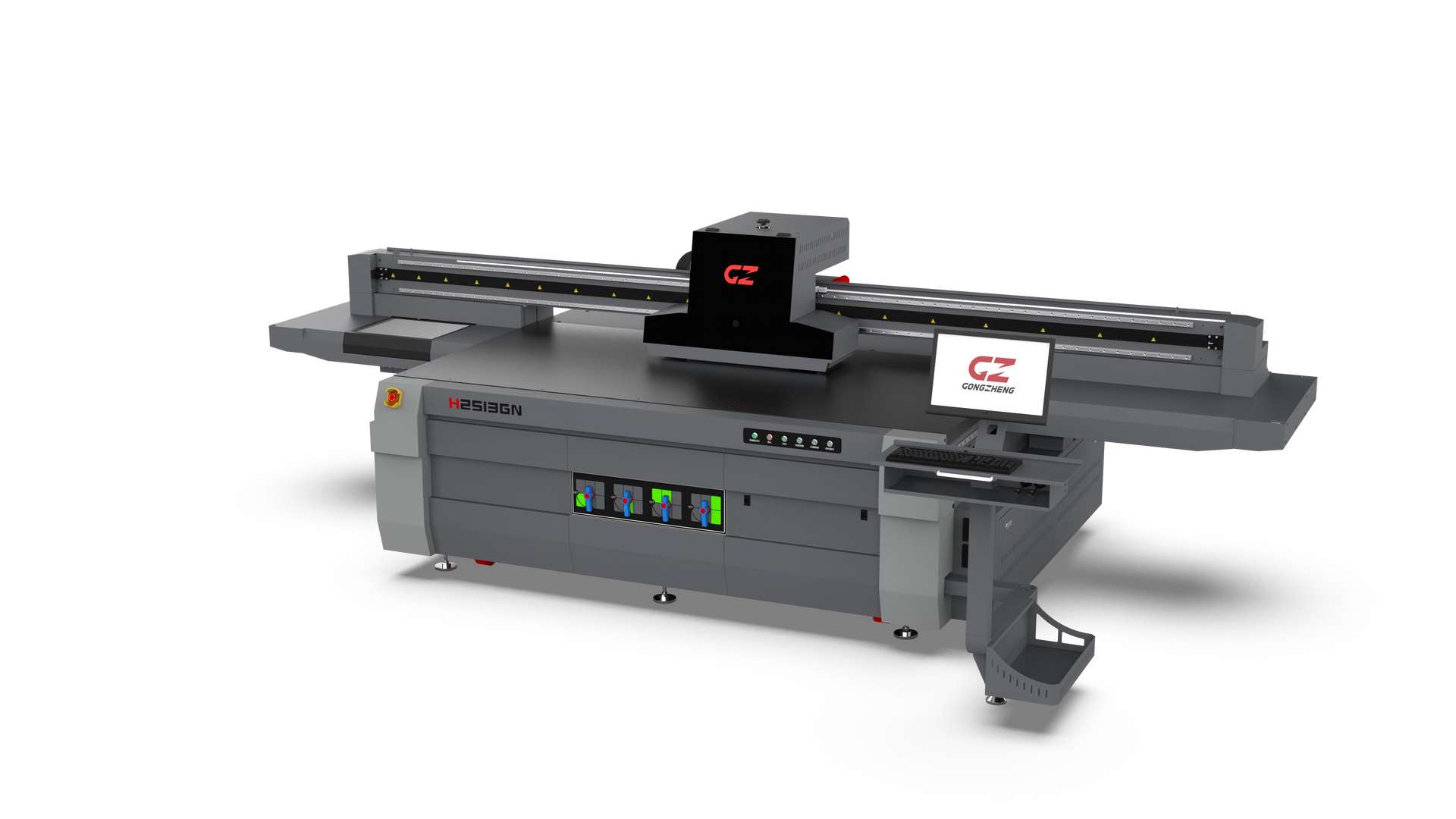

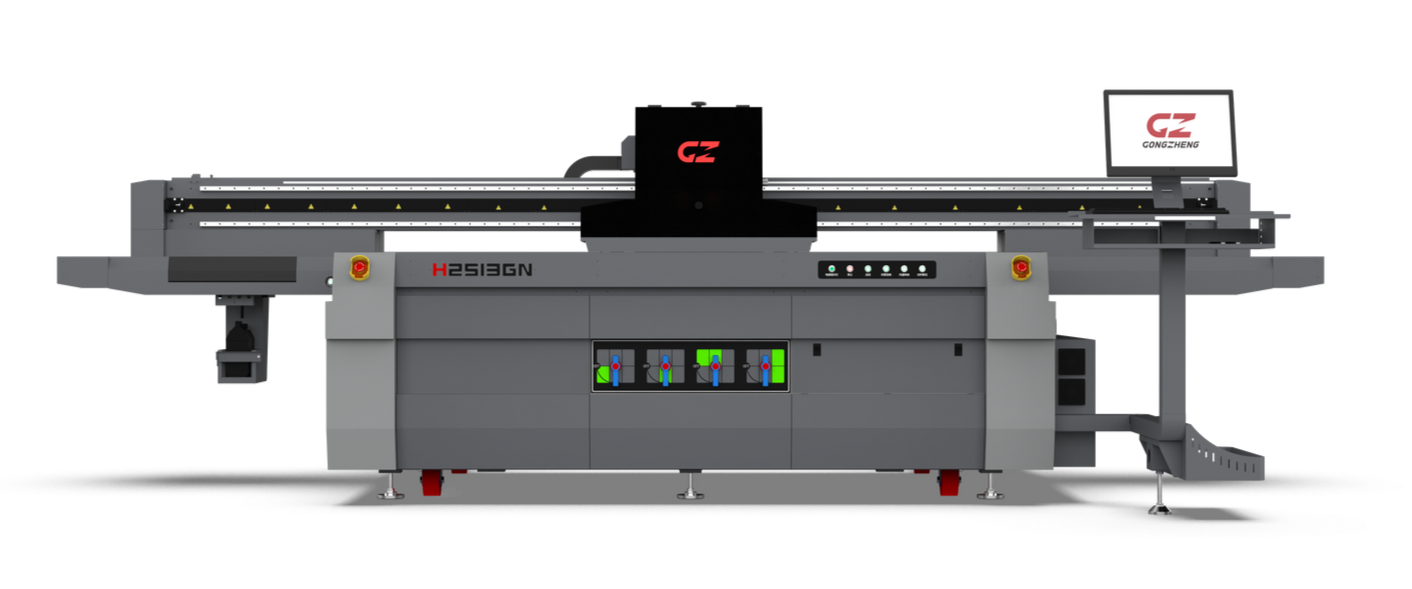

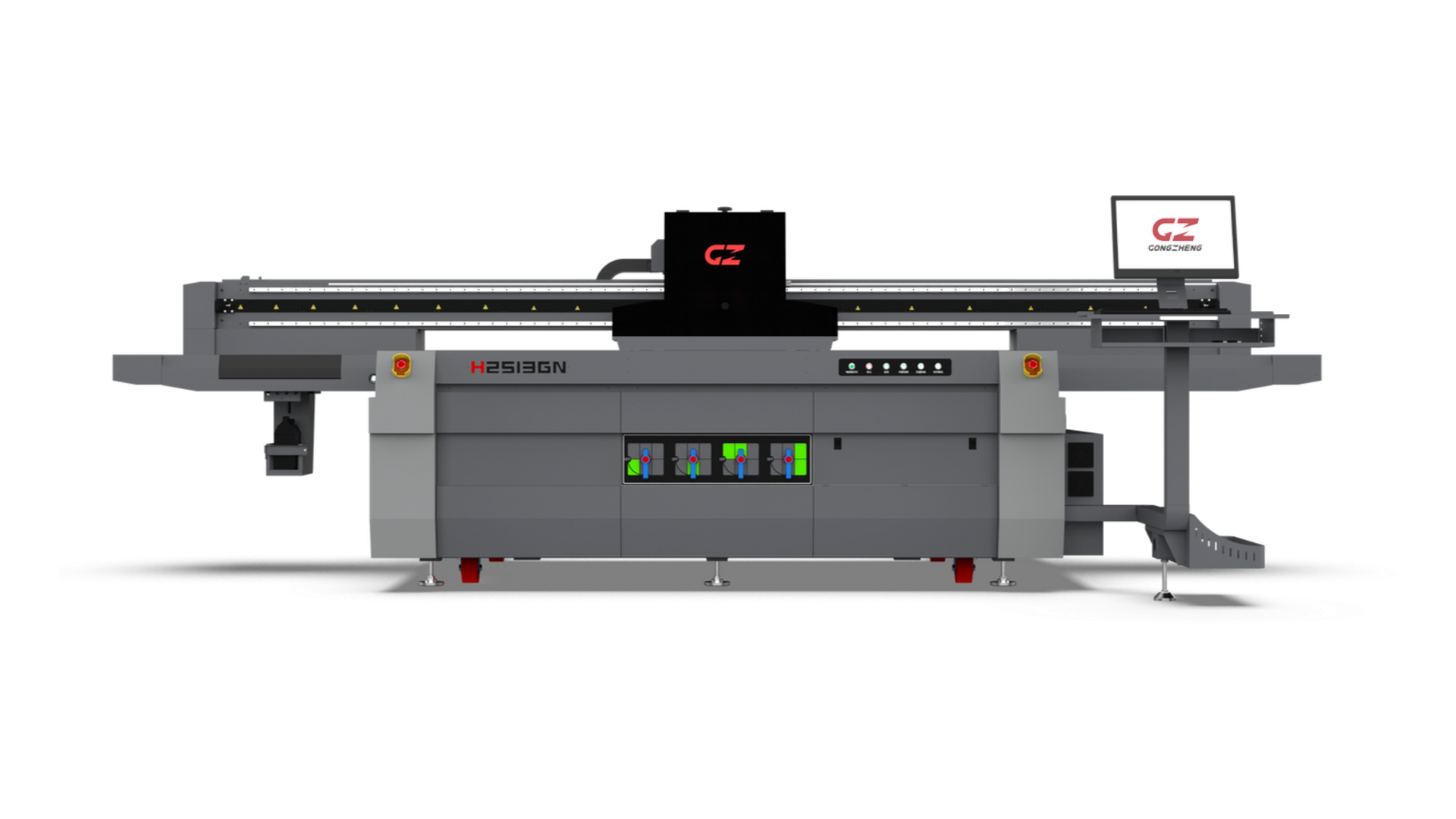

H2513GN
Industrial 2.5x1.3m UV Flatbed with Ricoh Gen6 Heads
H2513GN

Features:

  • Up to 8 Ricoh Gen6 heads – delivers outstanding industrial productivity.
  • 2.5x1.3m vacuum table – handles large rigid substrates up to 100mm thick.
  • Dual water-cooling LED UV – cures ink instantly during high speed printing.
  • Anti-collision device – protects print heads during operation.
  • 4-zone vacuum platen – with media alignment pins and blowing function.
  • Optional linear motor – for extremely accurate and quiet movement.
H2513GN

Core Features

Up to 8 Ricoh Gen6 Heads
2.5x1.3m Vacuum Table
Auto Height Detector
4-Zone Vacuum Platen
Anti-Collision Protection
Up to 100mm Substrate

Specifications:

H2513GN

Print Head:

3-8 Ricoh Gen6 Print Heads

Print Area:

2500x1300mm (Table: 2650x1325mm)

Ink:

UV Curable Ink

Media Thickness:

Up to 100mm

Ink Supply System:

Gntek Negative Pressure System with White Ink Circulation

Curing System:

Dual Water Cooling LED UV Lamps

Media Type:

Acrylic, Aluminium, Foam Board, PVC, Glass, Wood, Ceramic

Working Environment:

Temp: 20℃ - 30℃
Humidity: 35% - 65%

Data
Interface:

External: USB 3.0
Internal: Fiber Optical

Software:

FlexiPRINT UV + GZ Control Console

GW.N.W:

1200kg / 1606kg

Power Consumption:

Power
Req:

Single Phase AC 220V, 13A (Printer) + 21A (Vacuum)

Dimensions:
(Installed / Packed)

LxWxH(mm)4452x2040x1495 / 4700x2300x1750

Printing Speeds:

Production:

720 x 1200 dpi Colour (3-Head): 53.9m²/h Colour (4-Head): 72m²/h CMYK (4-Head): 72m²/h

Draft:

720 x 900 dpi Colour (3-Head): 67.3m²/h Colour (4-Head): 88m²/h CMYK (4-Head): 88m²/h

High-Res:

38㎡/h  ·  720 × 900 dpi  ·  KCMY

Photo:

720 x 1200 dpi Colour (3-Head): 29.9m²/h Colour (4-Head): 40.1m²/h CMYK (4-Head): 40.1m²/h
