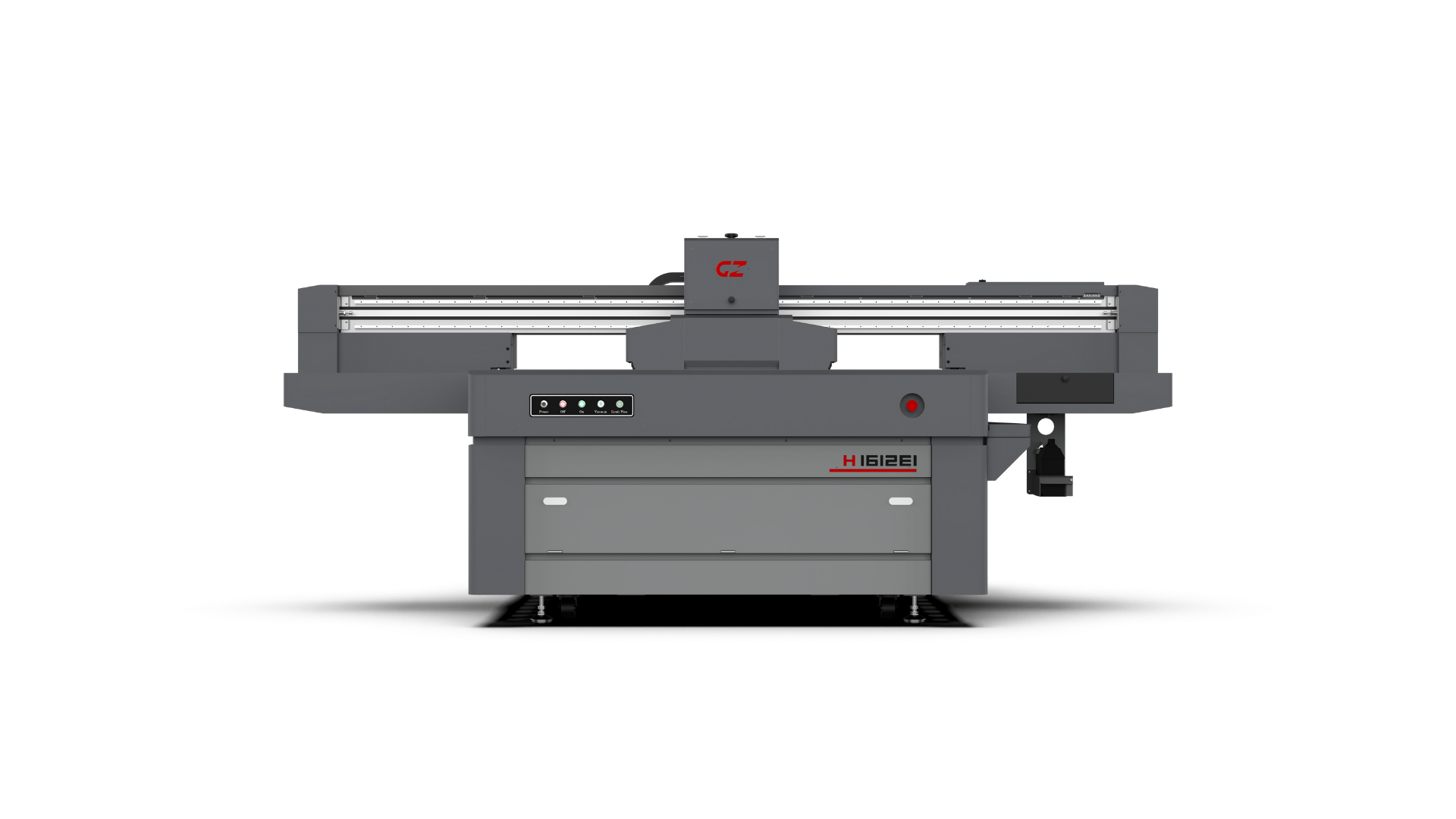

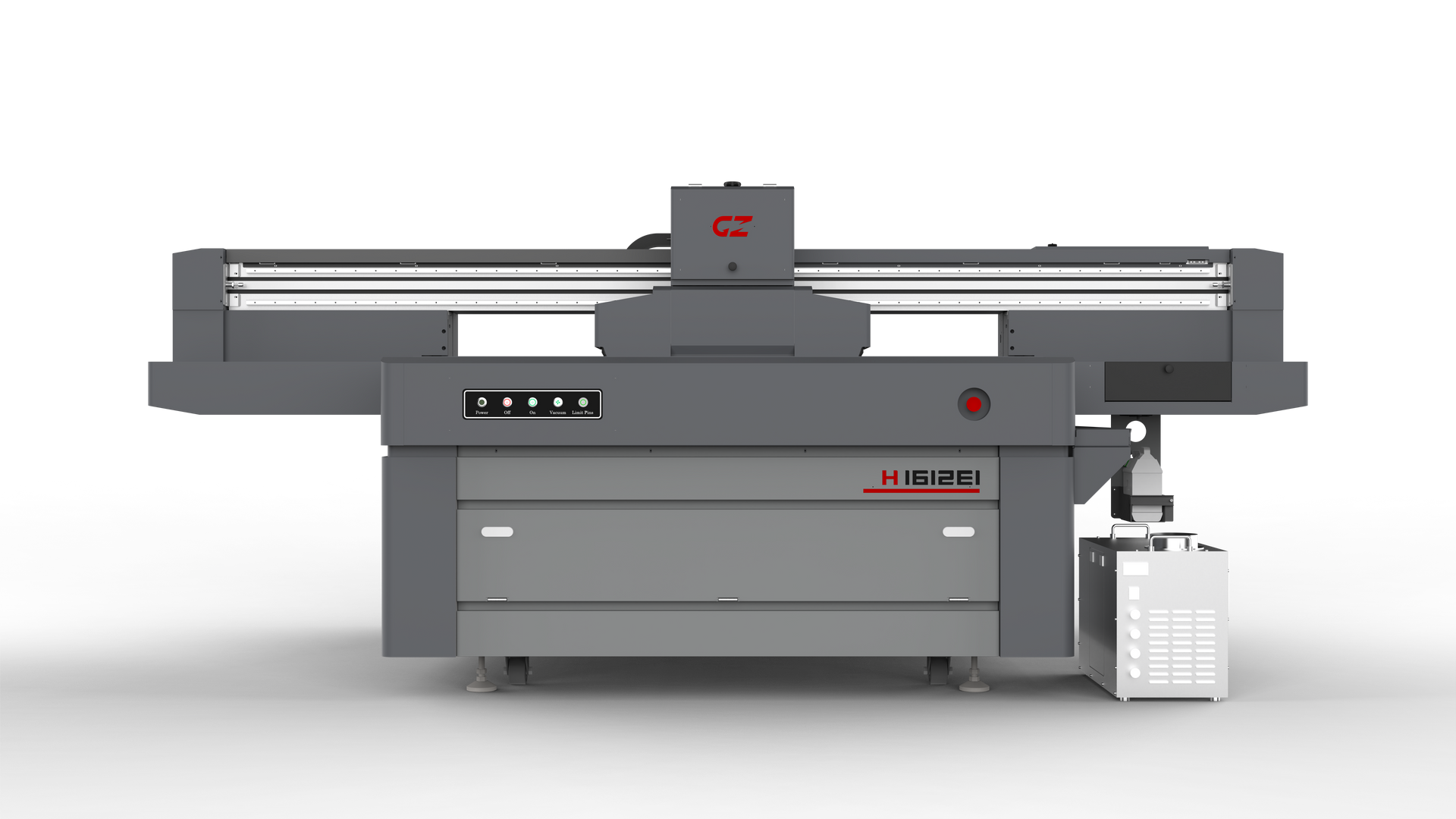

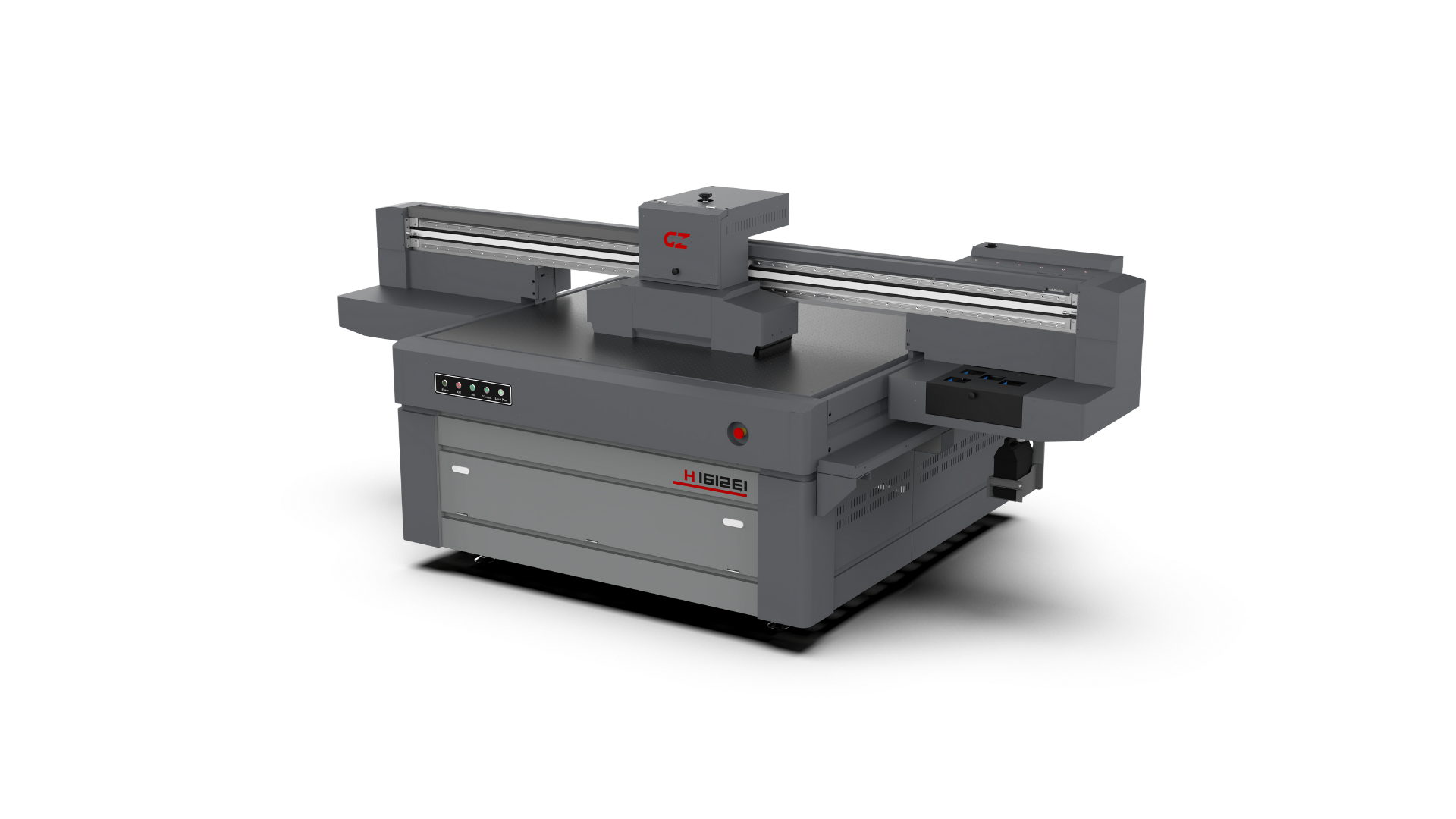

H1612EI
1600x1200mm Flatbed UV Printer
H1612EI

Core Features

  • 2-4 Epson i3200-U1 Print Heads– advanced printhead delivers precise droplet placement and sharp, high-quality results.
  • Negative Ink Pressure Supply System – maintains consistent ink flow, preventing leaks and ensuring reliable head performance.
  • 4 Water-Chilled LED UV Lamps – efficient curing with water cooling extends lamp life and system reliability.
  • Optional Magnetic Linear Motor – high-speed motor upgrade delivers smoother motion and greater printing precision.
  • Optional CPS (Camera Positioning System) – advanced camera improves media alignment and ensures accurate job positioning.
  • Optional Cylinder Printing Kit – rotary system enables cylindrical object printing with stable, detailed output.

Core Features

Epson l3200-U1 Print Heads (About 45% Faster Than Epson I1600 Model)

Unique Designed Compacted Body

Laser Media Detector

Constant Temperature Print Head Heater

White Ink Recirculation System

Enhanced Aluminum Structure

Specifications

H1612EI

Print Head:

2-4 Epson i3200-U1 Print Heads

Print
Area:

1600 x 1200mm

Ink:

REI-3 Rigid or Flexible UV Ink or

GZ TPU Ink + Film

Media Thickness:

Up to 180mm

Ink Supply System:

2L Bulk Supply System with White Ink Recirculation System

Curing System:

4 x Water Chilled LED UV Lamp

Media Type:

Acrylic, Aluminum, Foam / PVC Board, Leather, Glass Drink bottles, Wood, Ceramic...

Working Env:

Temp:       20℃ - 30℃

Humidity: 35% - 65%

Data
Interface:

External: Ethernet

Internal:  Fiber Optical

Software:

FlexiPRINT Mini UV + GZ Control Console

GW.N.W:

1100 kgs / 1460kgs

Power Draw:

Printer:             1100W

UV Controller:  800W

Vacuum:           2200W

Power
Req:

Single-phase , AC 220V ± 10%, 50 / 60Hz, 10A

Dimensions:
(Installed / Packed)

LxWxH(mm): 3290x1940x1456 / 3600x2300x1775

Printing Speed:

Draft:

720x1200dpi     W + 2 x CMYK + V     31.5㎡/ hour     4 x CMYK     59.8㎡/ hour

Production:

720x1200dpi     W + 2 x CMYK + V     22.4㎡/ hour     4 x CMYK     42.6㎡/ hour

High-Res:

720x1800dpi     W + 2 x CMYK + V     18.6㎡/ hour     4 x CMYK     35.3㎡/ hour

Photo:

720x2400dpi     W + 2 x CMYK + V     11.5㎡/ hour     4 x CMYK     21.9㎡/ hour
