A3HD

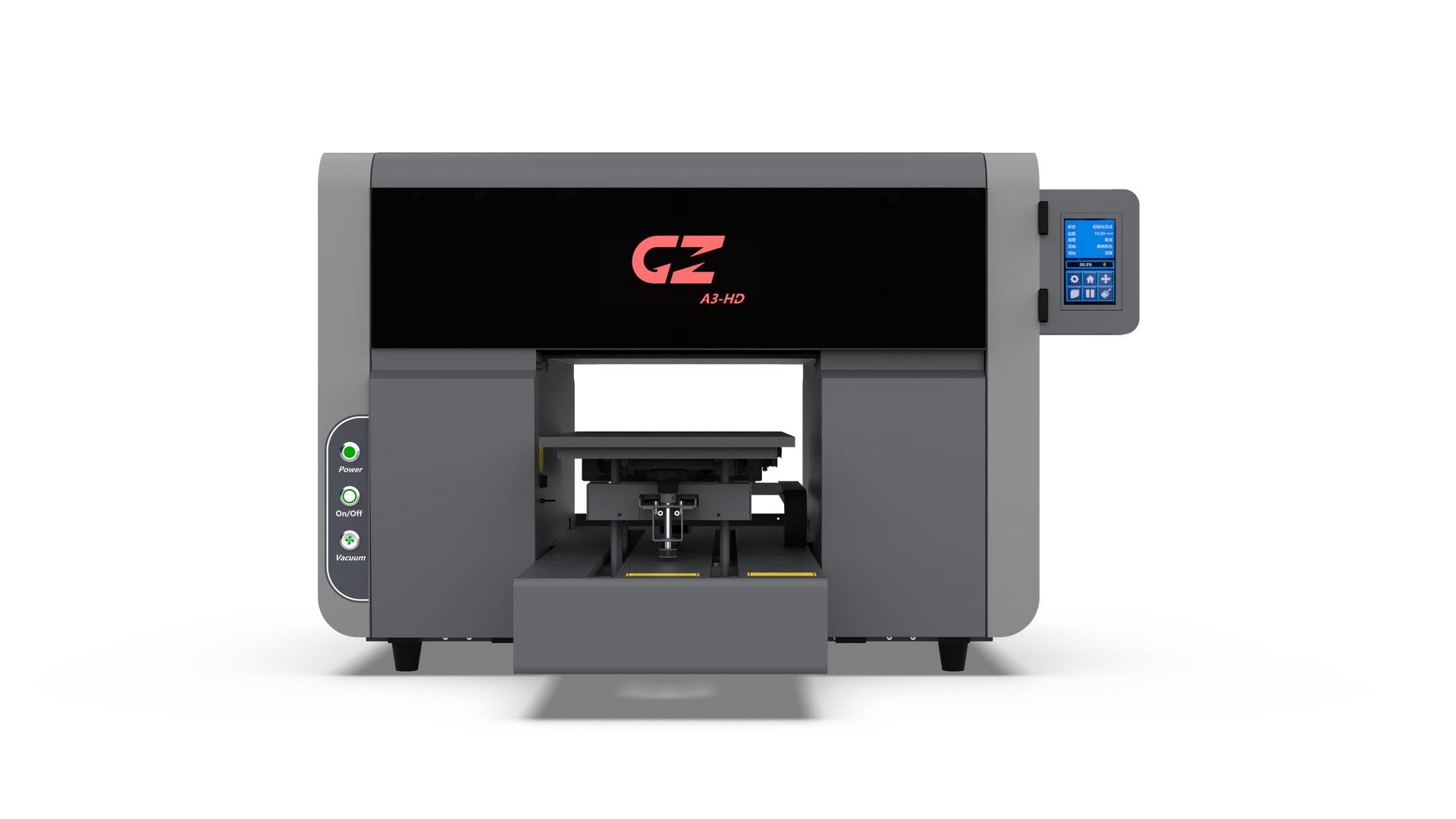

Desktop A3 Flatbed UV Printer
A3HD

Core Features

  • 8-Colour Epson i3200-U1HD Print Head – delivers vibrant, precise colour reproduction with up to 2400dpi output
  • Ultra Compact Desktop Design – saves valuable workspace while offering full professional printing capability anywhere.
  • Auto-Height Detection System – automatically adjusts for media thickness ensuring flawless, consistent print quality.
  • Inbuilt Rotary System and Vacuum Platen – secure media handling enables stable, accurate, and versatile print performance.
  • Optional Roll Take-up System - Jam pack your possibilities with additional roll-to-roll film printing option

Core Features

8-Colour Print Capabilities

Robust Desktop Design

Film Take-up System

Smart-Touch Screen

Rotary Print Attachment

Stable Vacuum Platen


Specifications

A3HD

Print Head:

8 - Channel i3200HD-U1

Print
Area:

300 x 420mm

Ink:

REI-3 Rigid or Flexible UV Ink or

GZ TPU Ink + Film

Media Thickness:

Up to 100mm

Ink Supply System:

1L Bulk Supply System with White Ink Recirculation System

Curing System:

Air Chilled LED UV Lamp

Media Type:

Acrylic, Aluminum, Foam, PVC, Leather, Glass, Wood, Ceramic...

Working Env:

Temp:       20℃ - 30℃

Humidity: 35% - 65%

Data
Interface:

External: Ethernet

Internal:  Fiber Optical

Software:

FlexiPRINT Mini UV + GZ Control Console

GW.N.W:

140 kgs / 212 kgs

Power Draw:

500W

Power
Req:

Single-phase , AC220V ± 10%, 50/60Hz, 10A

Dimensions:
(Installed / Packed)

LxWxH(mm): 900x640x660 / 1320x1120x930

Printing Speed:

Draft:

720 x 1200dpi     CMYK  6.0min/Sheet

Production:

720 x 1200dpi      CMYK  14.4min/Sheet

High-Res:

720 x 1800dpi     CMYK  10.1min/Sheet

Photo:

720 x 1800dpi     CMYK  21.6min/Sheet
