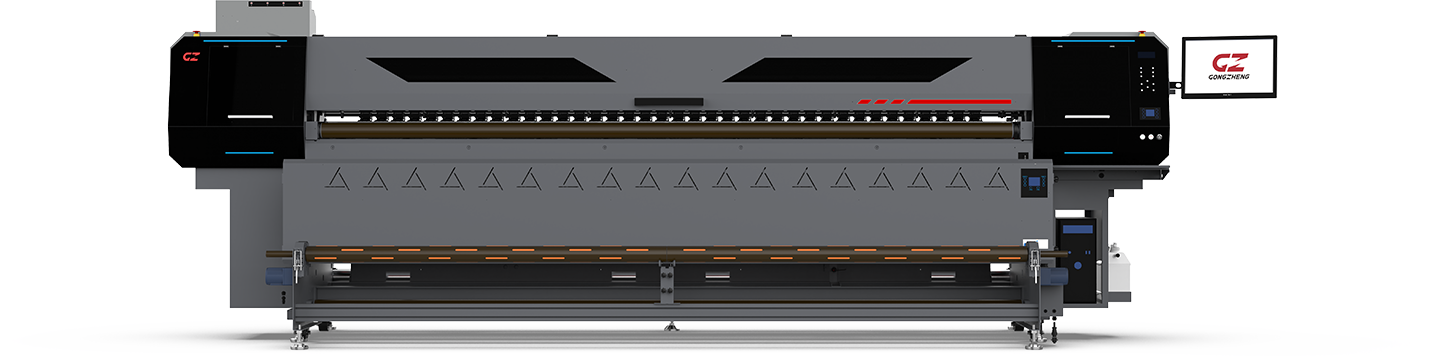

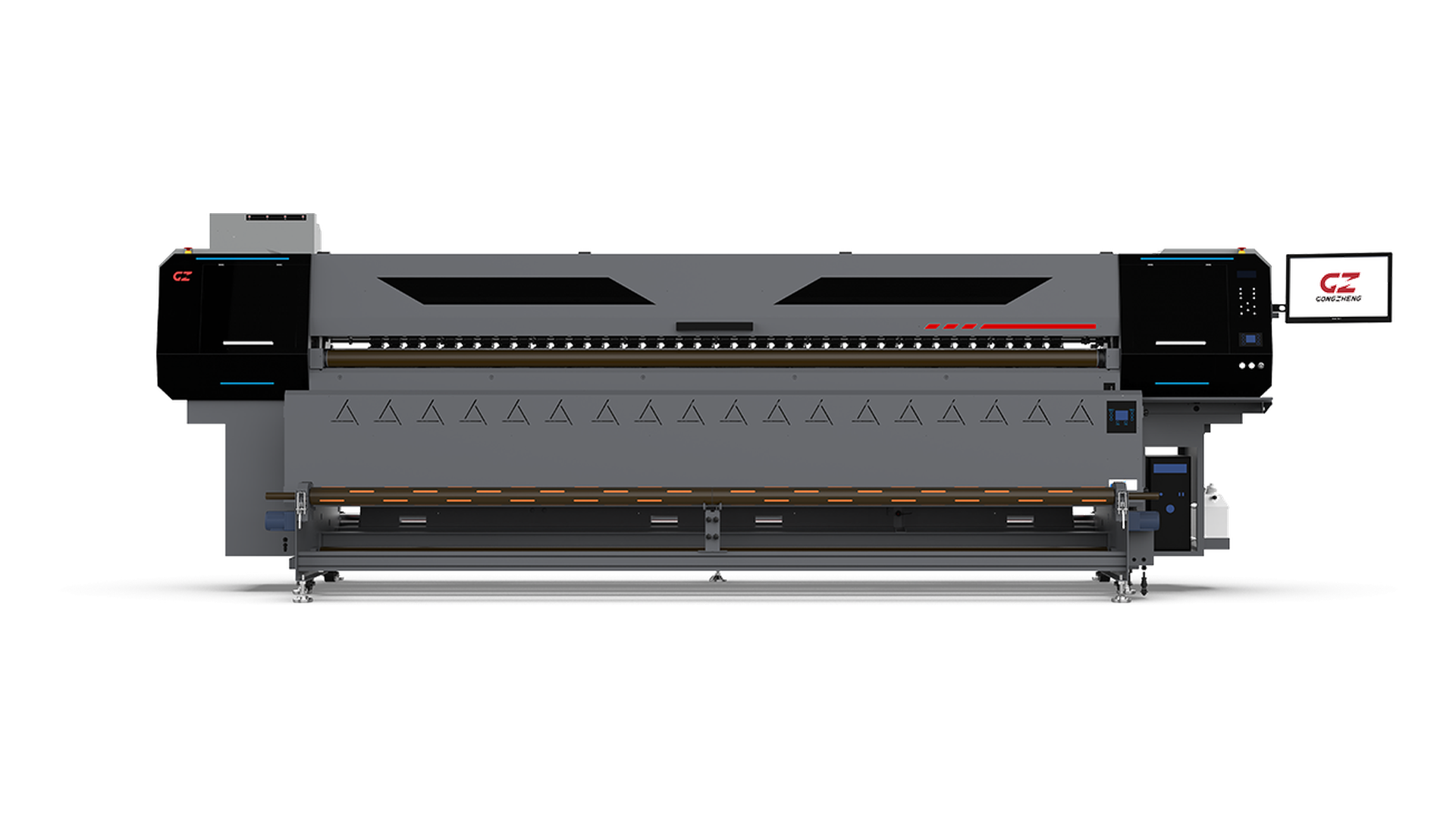

ThunderJet AQ3204S
High Speed and High Quality 3-2m Eco-Solvent Printer
ThunderJet AQ3204S

Core Features

  • 4 Epson i3200-E1 heads  – staggered configuration delivers ultra-high productivity with outstanding print quality.
  • 3.2m super-wide format – perfect for billboards, bus shelters, vehicle wraps, and large signage.
  • High-speed eco-solvent printing  – up to 110 m²/h for maximum efficiency in production runs.
  • Optimised capping station – reduces downtime and extends printhead life with reliable maintenance.
  • Dual IR dryers with triple heaters – fast curing ensures vibrant, durable prints at high speeds.
  • Anti-collision unit – safeguards printheads for smooth, reliable operation during continuous printing.

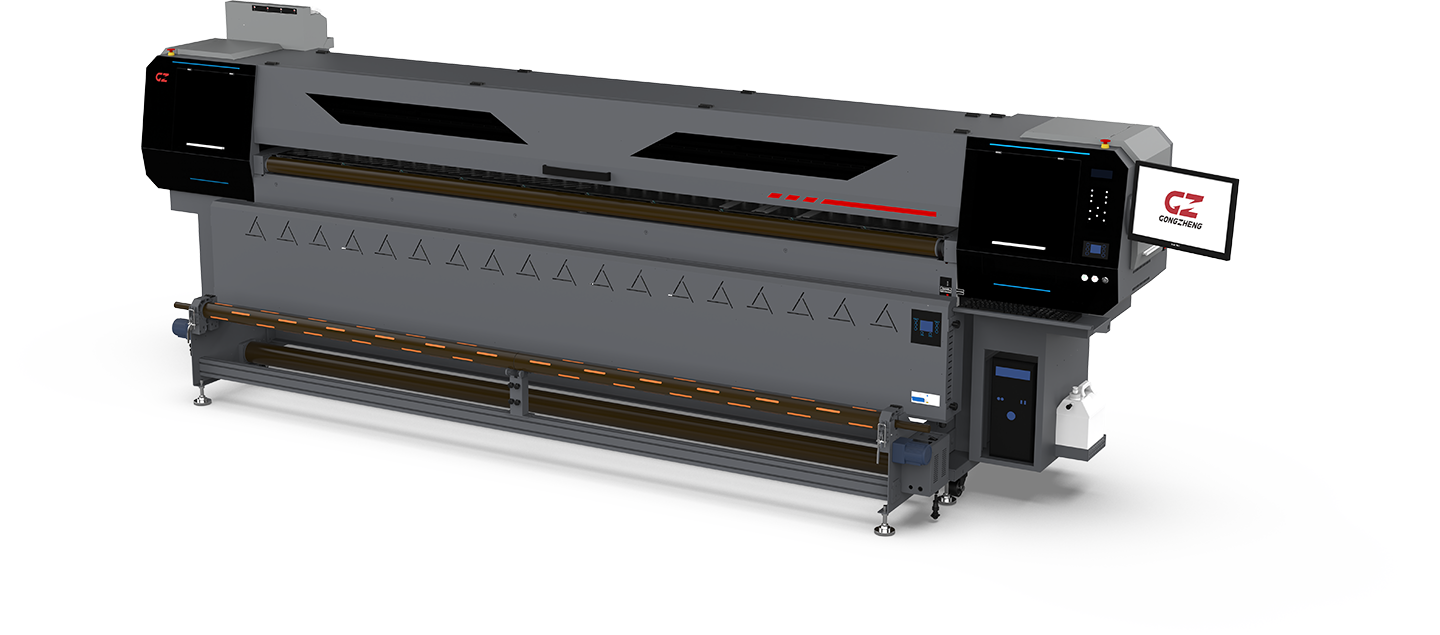

ThunderJet AQ3402S

Core Features

Quad Epson i3200-E1 Print Head

Air-Assisted Media Take-Up

Synchronous Dual IR Dryers

GZ Variable Dot Jetting Technology

Precision Stepping Control

Multi-Media Roll Feeding System

Specifications:

ThunderJet AQ3204S

Print Head:

4 x Epson i3200-E1 Print Head

Print Width:

Max. 3200mm Width

Ink:

EPI2-2 Years Durability Eco Solvent Ink

Media Type:

Banner, Coated PP, Vinyl, PVC film...

Colour
Config:

K.C.M.Y

Media System:

Optimised Roller Platform with Electric Pinch Rollers

Ink Supply System:

Bulk Ink Supply System with Ink Cartridges

Drying System:

Three Internal Heaters and Dual IR Dryers

Roll
Weight:

Max. 150kgs

Roll Diameter:

Max. 300mm

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Env:

Temp:        23℃ - 29℃

Humidity:  50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

N.W. / G.W. :

903kgs / 1192kgs

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 6.7A (Printer) + 2 x 17A (IR Dryer)

Dimensions:
(Installed / Packeded)

LxWxH(mm): 2760x810x1530 / 2920x1000x750

Printing Speeds:

Draft:

110 m²/h

360 × 1800 dpi

Production:

82 m²/h

720 × 1200 dpi

High-Res:

64 m²/h

720 × 1200 dpi

Photo:

55 m²/h

720 × 1800 dpi

Product Video
