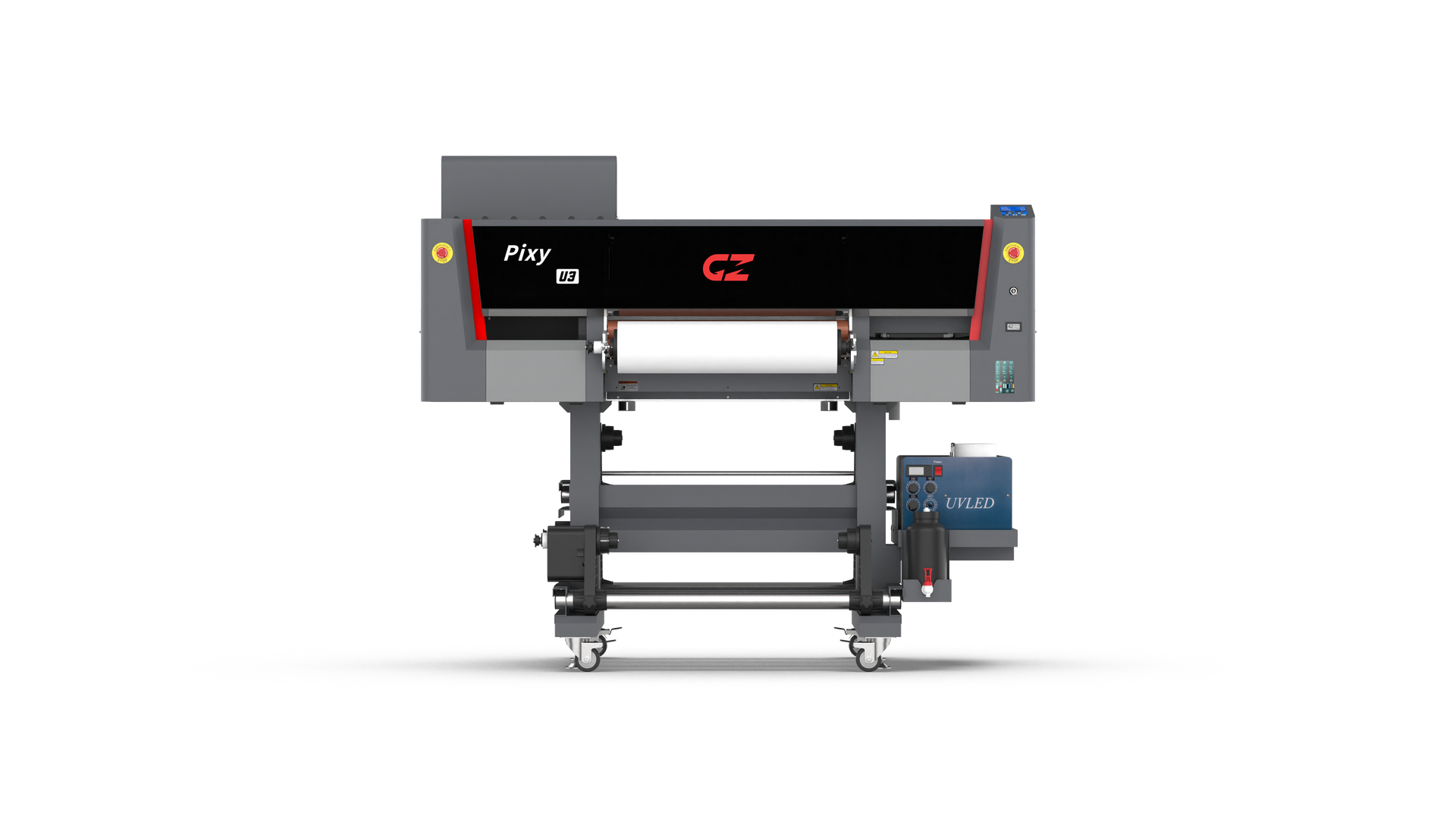

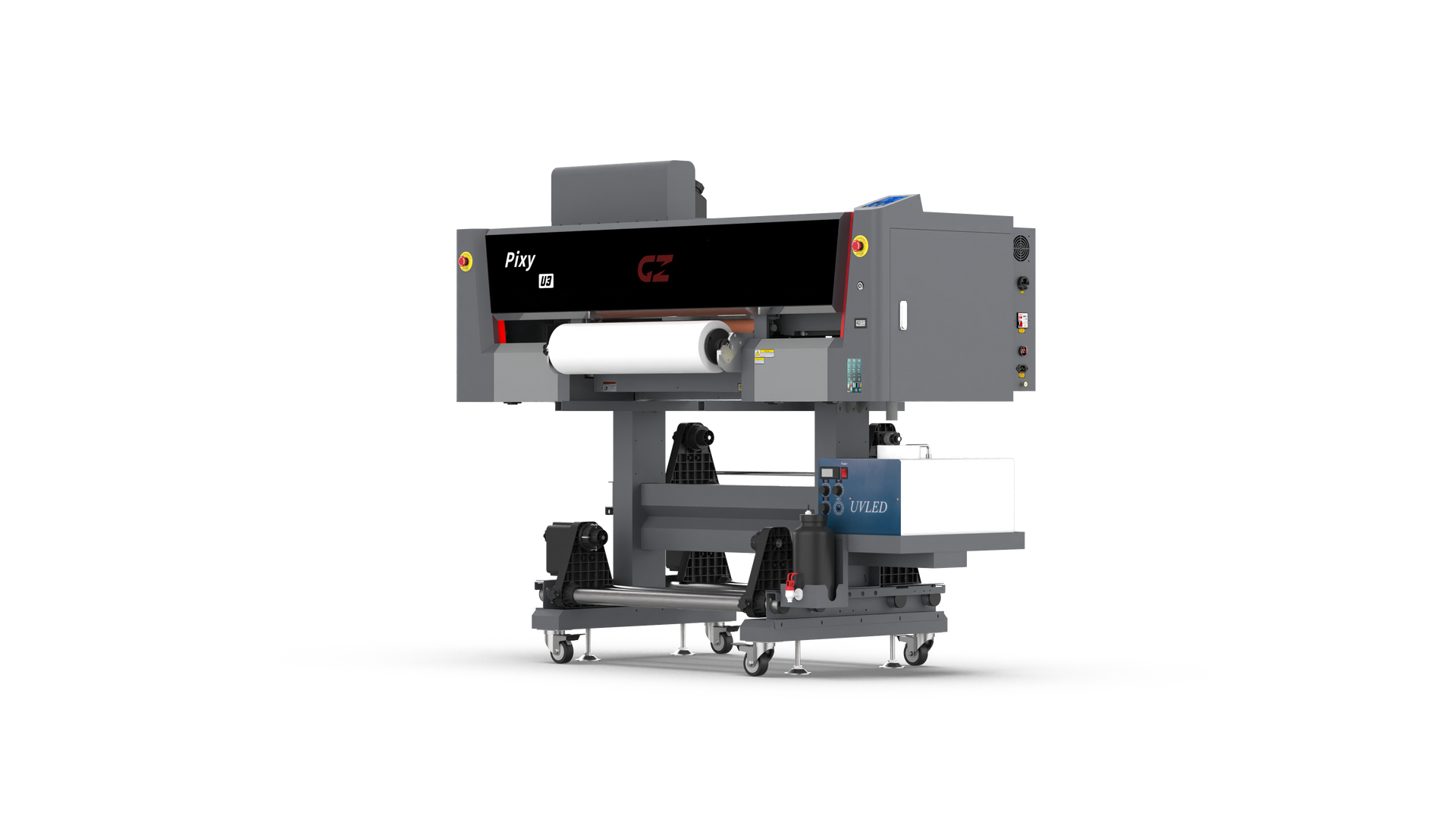

Pixy U3
60cm UV DTF Printer
Pixy U3

Pixy U3

  • Three Epson i3200-U1 heads – deliver precision, speed, and long-lasting performance.
  • 60cm UV DTF film support – print wide, vibrant designs with ease.
  • Multi-layer printing – enables colour, white, and varnish combinations in one pass.
  • Dual heated rubber rollers – ensure smooth inline lamination without wrinkles.
  • Smart touch-screen control – intuitive interface for effortless operation.
  • Up to 2400dpi resolution – crisp, detailed prints for professional-grade results.

Core Features:

Five-Layer Print Capability

Hybrid-Flatbed Conveyor Belt

Smart Touch Control

Photo-Definition Detail

Static Guard Protection

Commercial 10㎡/hr Capacity

Specifications:

Pixy U3

Print Head:

Epson i3200-U1 Print Heads

Media Width:

600mm Width

Ink:

GZ REI-3 Flexible UV Ink

Film Type:

A+B UV DTF Film

Curing System:

Dual Water Chilled UV Lamps

Cleaning System:

GZ Optimised Capping Station

Multi-Layer Printing:

Colour, C.W.C, C.W.V, C.W.C.W.C

Colour Config:

K. C. Y. M. + White + Varnish

Ink Supply System:

6-Colour Bulk Ink Supply System with White Recirculation and Alarm

Ink Tank Capacity:

1800ml

N.W. / G.W:

180kg / 304kg

Dimensions:
(Installed / Boxed)

LxWxH(mm)1800x863x1520 / 2300x1010x790

Data Interface:

External: Ethernet

Internal: Fiber Optical

Working Climate:

Temp: 20℃ - 30℃

Humidity: 40% - 60%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm)1800x863x1520 / 2300x1010x790

Installed / Packed Dimensions:

Printing Speed:

Production:      720×1200 dpi     10㎡/h

 High-Res:      720×1800 dpi     7.0㎡/h

Photo:      720×2400 dpi     4.0㎡/h
