ThunderJet AQ1601UV
Entry-Level 1.6m Roll-to-Roll UV Printer

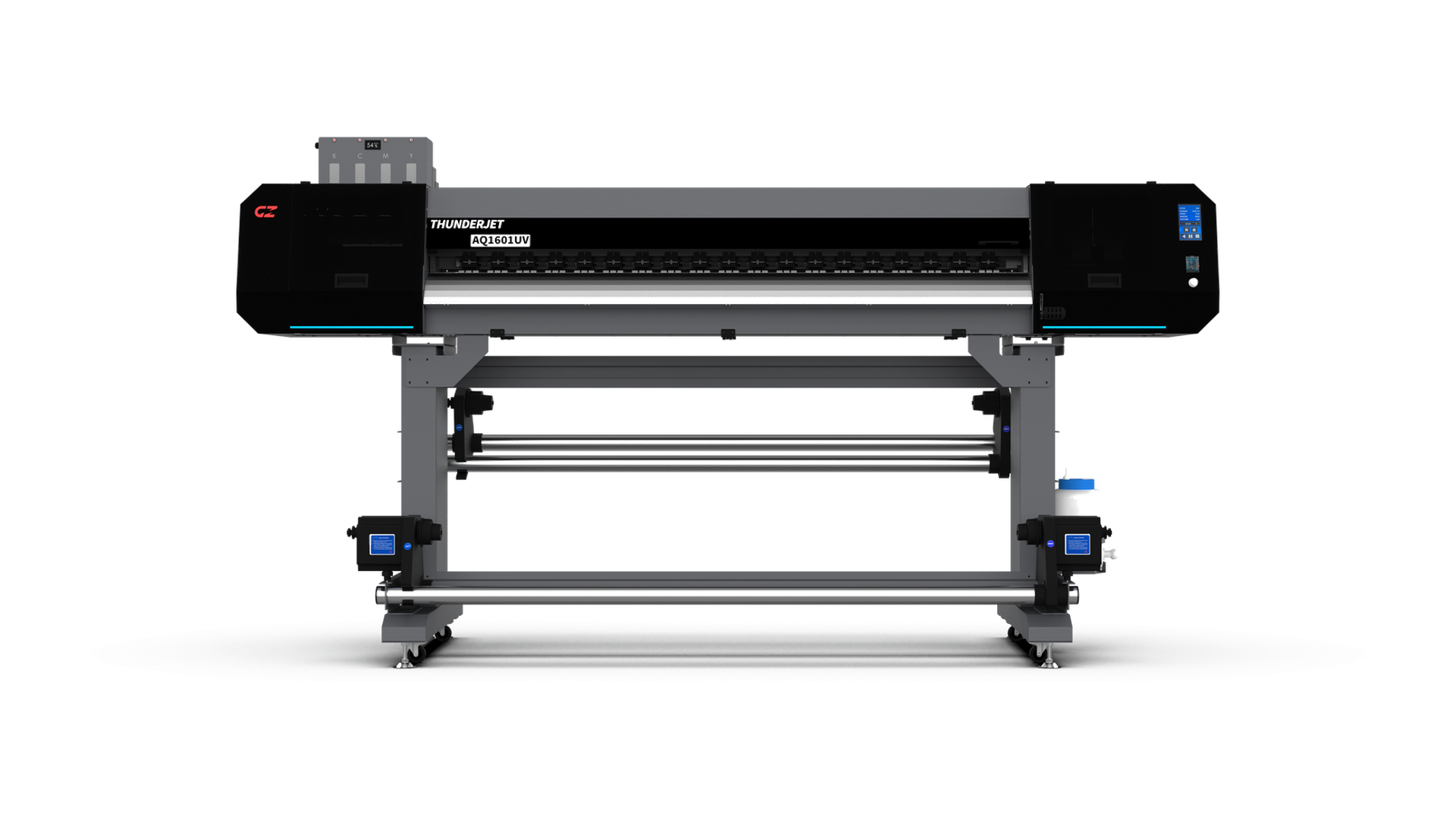

ThunderJet AQ1601UV

ThunderJet AQ1601UV

  • Genuine Epson i3200-U1 head – PrecisionCore MicroTFP at a native 600dpi for smooth, high-speed output.
  • REI-3 Greenguard Gold UV ink – 3 years outdoor durability with a wide colour gamut.
  • Adjustable stepping system – one-piece serrated roller and individual pinch rollers keep media feeding straight and wrinkle-free.
  • Optimised cleaning system – one-pass wiper and capping station cuts the time spent on head maintenance.
  • Intelligent heating unit – warms ink supply and head for stable flow from the first print of the day.
  • 1.6m roll platform – handles 50kg rolls on 2″ or 3″ cores.
  • Compact footprint – single-head body that fits a small shop without giving up print width.

Core Features:

Genuine Epson i3200 U1 Print Head
Adjustable Stepping System
Intelligent Heating Control Unit
Optimised Capping & Wiping System
Intelligent Touch-Screen Control
Compact Single-Head Footprint

Specifications:

ThunderJet AQ1601UV

Print Head:

Epson i3200 U1 Print Head

Media Width:

1630mm Maximum

Ink:

REI-3 Greenguard Gold UV Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Single C.M.Y.K.

Colour Config:

K.C.Y.M.

Ink Supply System:

Bulk Ink Supply System

Ink Tank Capacity:

1500ml

Curing System:

Air-Cooled LED UV Lamp

Roll Diameter:

220mm Maximum

N.W. / G.W:

342kgs / 242kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2787x815x1524 / 2920x1050x750

Data Interface:

External: Ethernet

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT 22 mini / ONYX RIPCenter (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 2.4A
LxWxH(mm): 2787x815x1524 / 2920x1050x750

Installed / Packed Dimensions:

Printing Speeds:

Draft:

15 m²/h
720 × 1200 dpi

Production:

10.8 m²/h
720 × 1200 dpi

High-Res:

7.5 m²/h
720 × 1800 dpi

Photo:

5 m²/h
720 × 1800 dpi
