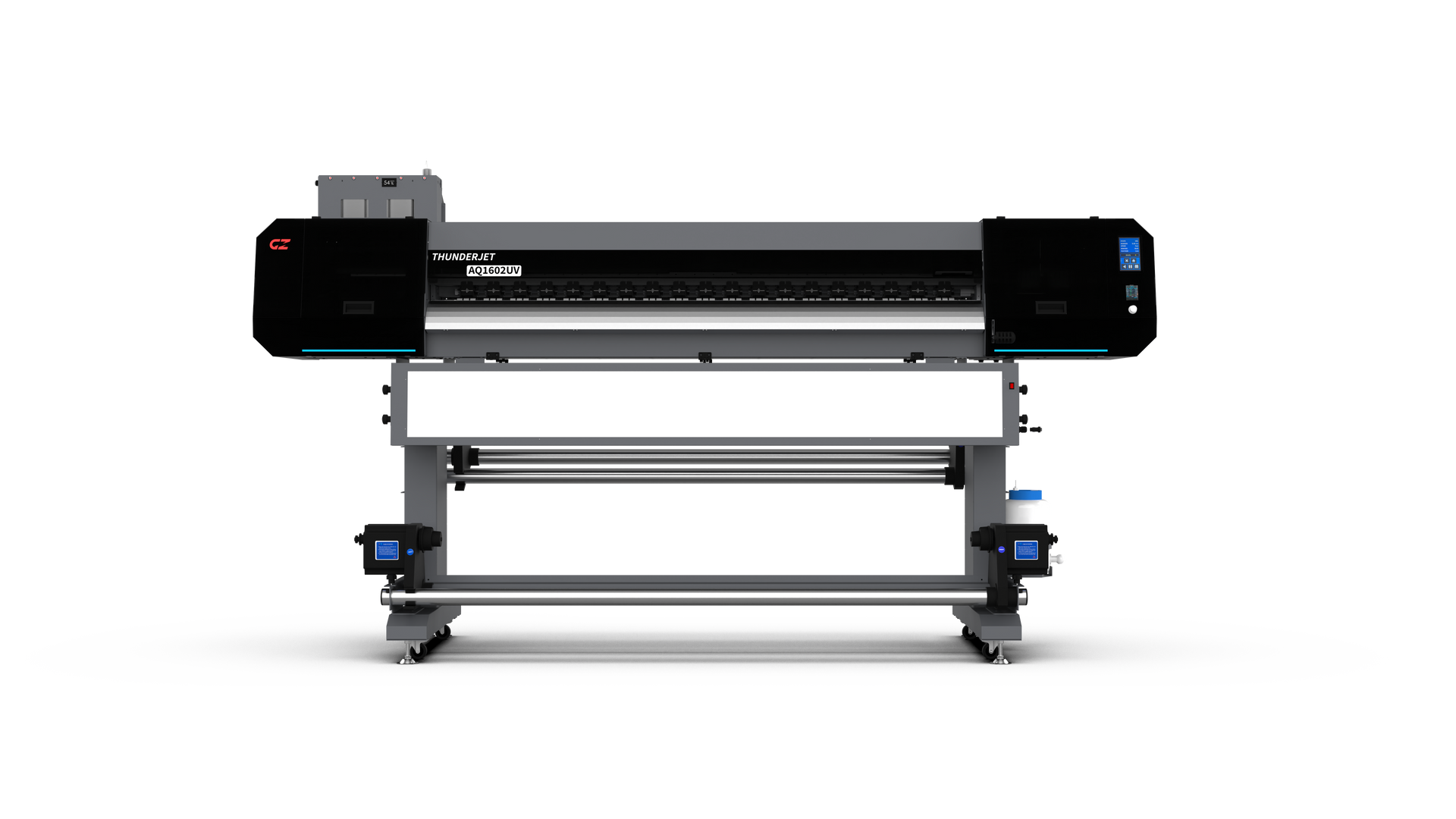

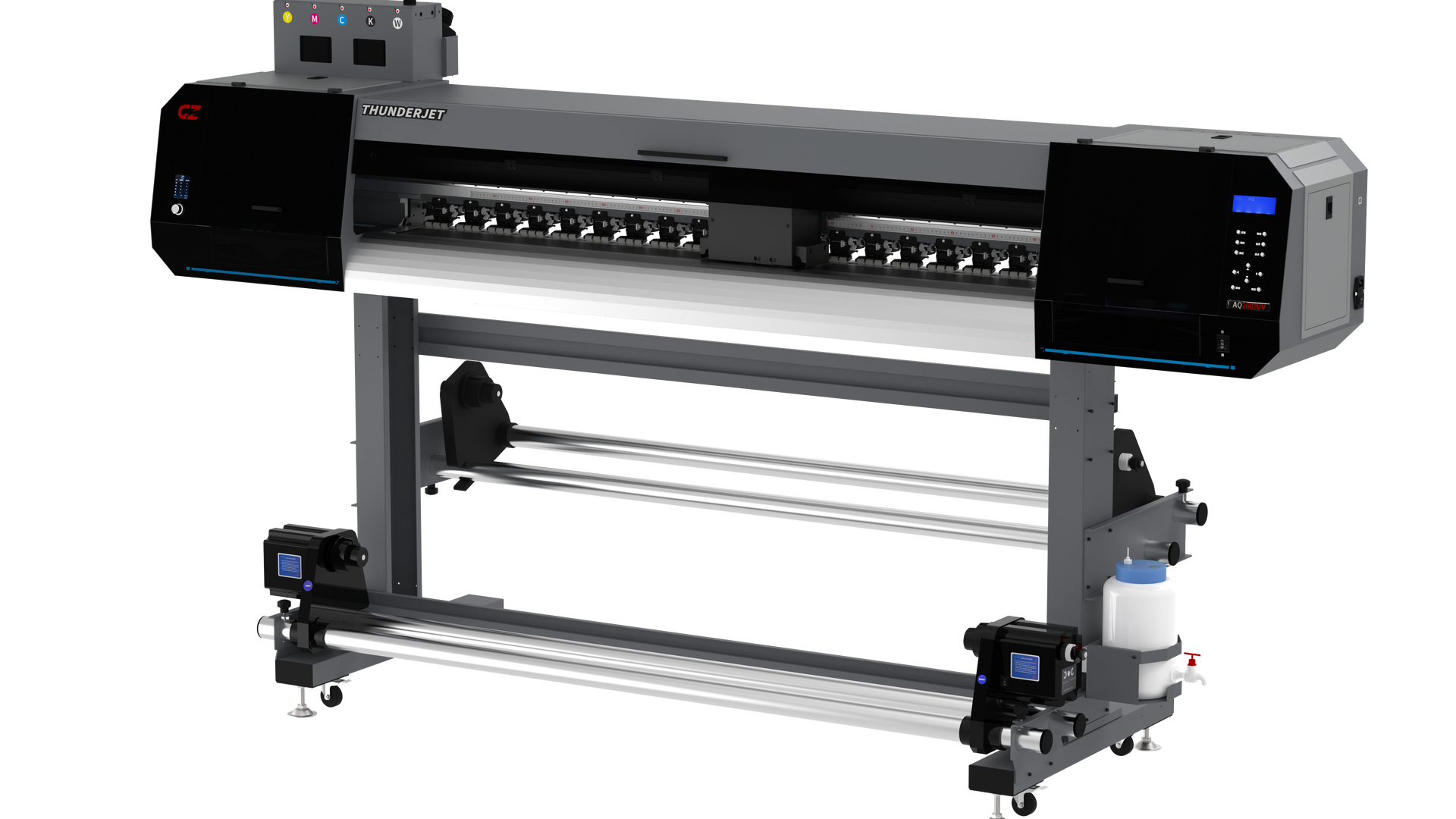

ThunderJet AQ1602UV
Entry-Level 1.6m Roll-to-Roll UV Printer
ThunderJet AQ1602UV

ThunderJet AQ1602UV

  • 1–2 Epson i3200-U1 heads – high-resolution output with UV flexible inks.
  • Multiple ink options – CMYK, dual-CMYK, or CMYK + White configurations.
  • Water-cooled LED curing – fast drying with minimal heat on roll media.
  • Bulk ink with white recirculation – prevents settling, ensures consistent flow.
  • Accurate feed system – stable alignment across coated films and textiles.
  • 1.6 m roll platform – supports 50 kg rolls, 2″/3″ cores.
  • Head safety and stable data – anti-collision carriage with Ethernet/fiber link..

Core Features:

1 or 2 Epson i3200 U1 Print Heads
Electric Driven Pinch-Rollers
Intelligent Heating Control Unit
GZ Variable Dot Jetting Technology
Precision Step Adjustment System
Water-Chilled Anti-Wrinkle Platen

Specifications:

ThunderJet AQ1602UV

Print Head:

Epson i3200 U1 Print Head

Media Width:

1600mm Maximum

Ink:

REI-3 Greenguard Gold UV Flexible Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Single or Dual C.M.Y.K.

Colour Config:

K.C.Y.M; 2 x K.C.Y.M; W + K.C.Y.M;

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation System

Ink Tank Capacity:

1000ml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

190kgs / 290kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2783x767x1558 / 2920x1000x750

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm): 2783x767x1558 / 2920x1000x750

Installed / Packed Dimensions:

Printing Speed:

Draft:

720 x 1200 dpi   One Head:   10.5m²/h   Two Head:  19m²/h

Production:

720 x 1200 dpi   One Head:    8.5m²/h    Two Head:   17m²/h

High-Res:

720 x 1800 dpi   One Head:     6m²/h      Two Head:   13m²/h

Photo:

720 x 1800 dpi   One Head:     5m²/h      Two Head:   11m²/h
