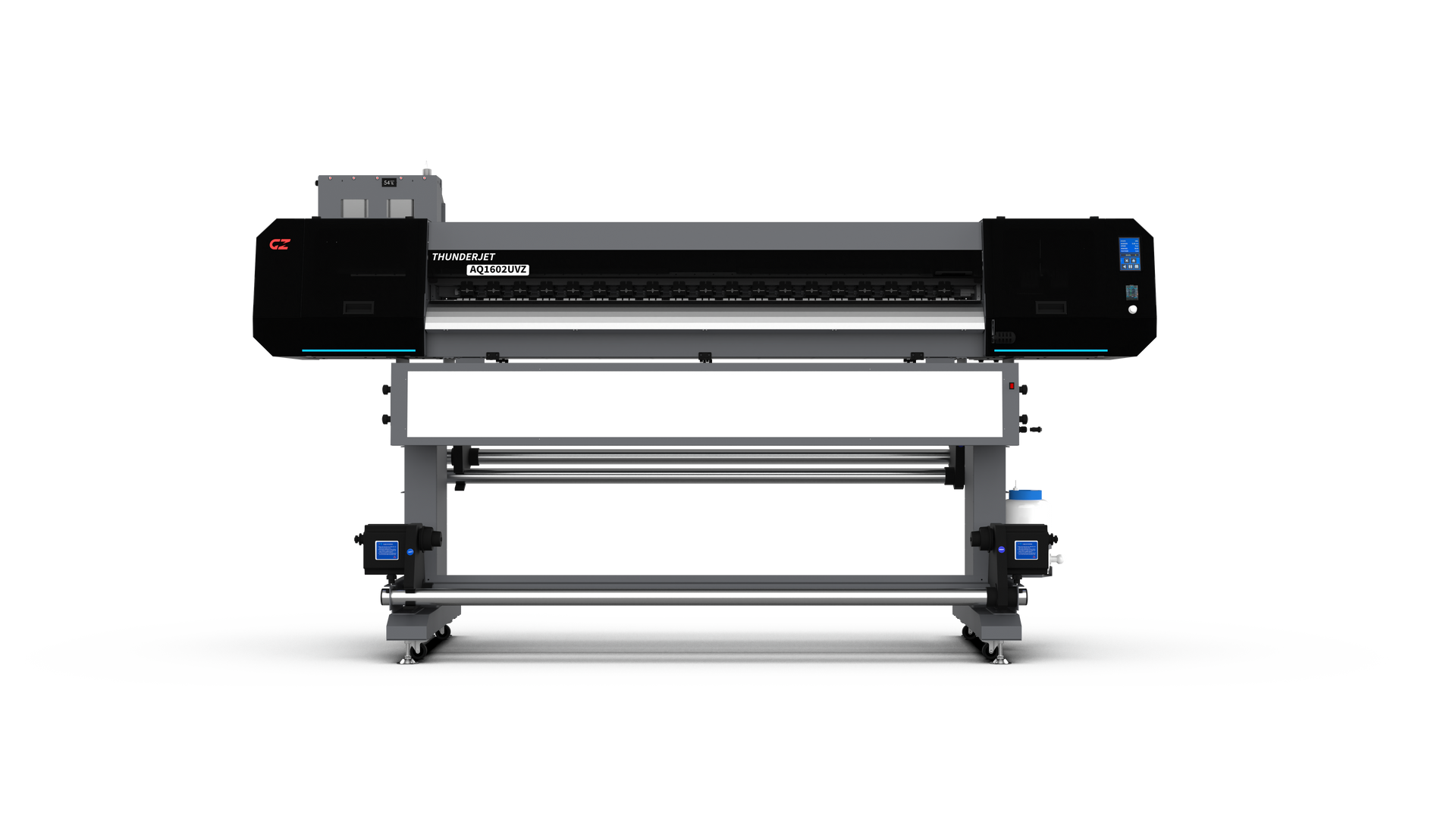

ThunderJet AQ1602UVZ
Entry-Level 1.6m Roll-to-Roll UV Printer with Mutli-Layer Printing

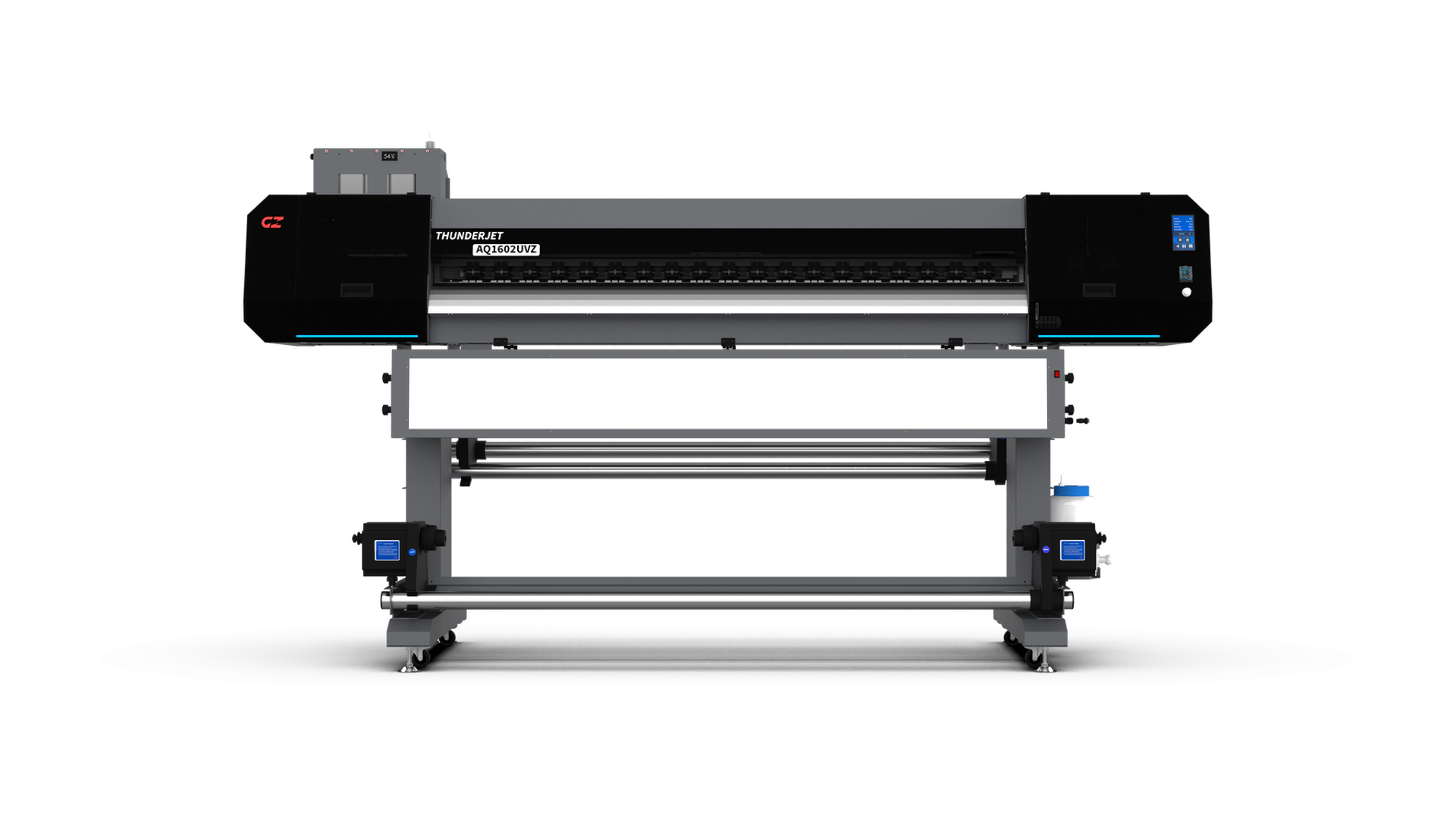

ThunderJet AQ1602UVZ

ThunderJet AQ1602UVZ

  • 1–2 Epson i3200-U1 heads – variable dot imaging with flexible UV inks.
  • 3/4/5-layer print capability – combines color, white, and varnish effects.
  • Dual water-cooled LED curing – keeps substrates flat and cures consistently.
  • Bulk ink with white recirculation – stable flow and reduced clogging.
  • Advanced media handling system – adjustable pinch rollers ensure smooth feed.
  • 1.6 m roll support – prints vinyl, PP, PET, PVC films up to 50 kg.
  • Built-in safeguards – anti-collision carriage with Ethernet and fiber connectivity.

Core Features:

1 or 2 Epson i3200 U1 Print Heads
Electric Driven Pinch-Rollers
Intelligent Heating Control Unit
GZ Variable Dot Jetting Technology
Precision Step Adjustment System
Water-Chilled Anti-Wrinkle Platen

Specifications:

ThunderJet AQ1602UVZ

Print Head:

Epson i3200 U1 Print Head

Media Width:

1600mm Maximum

Ink:

REI-3 Greenguard Gold UV Flexible Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Colour; C.W.C; C.W.C.W.C

Colour Config:

K.C.Y.M; W + K.C.Y.M;

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation System

Ink Tank Capacity:

1000ml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

190kgs / 290kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2783x767x1558 / 2920x1000x750

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm): 2783x767x1558 / 2920x1000x750

Installed / Packed Dimensions:

Printing Speed:

Draft:

720 x 1200 dpi    Colour (1 Head):  10.5m²/h   CWC:  5.2m²/h   CWKWC:  1.2m²/h

Production:

720 x 1200 dpi    Colour (1 Head):  10.5m²/h   CWC:  5.2m²/h

High-Res:

720 x 1800 dpi    Colour (1 Head):   6.0m²/h   CWC:  3.1m²/h   CWKWC:  1.0m²/h

Photo:

720 x 1800 dpi    Colour (1 Head):   6.0m²/h   CWC:  3.1m²/h
