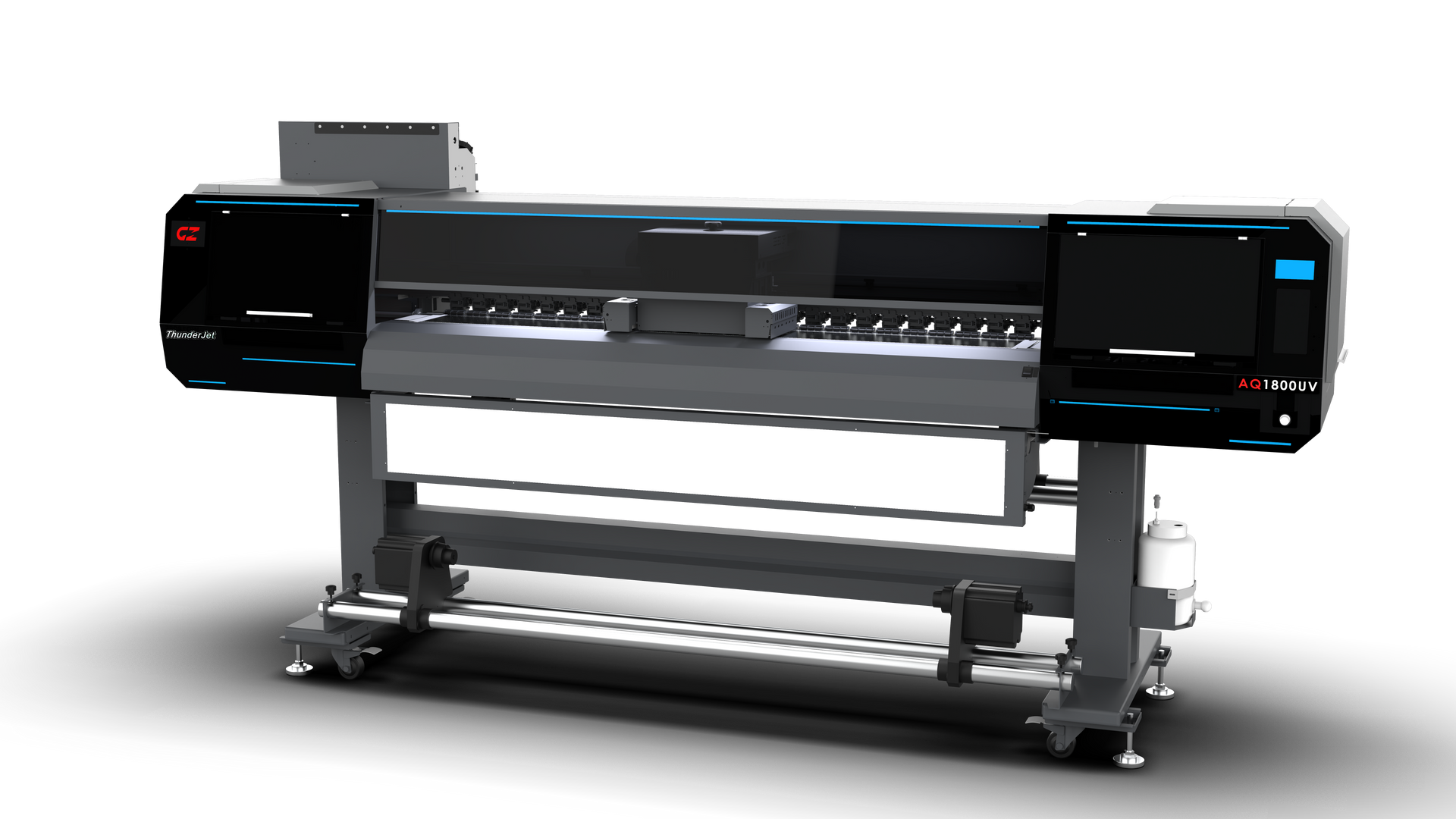

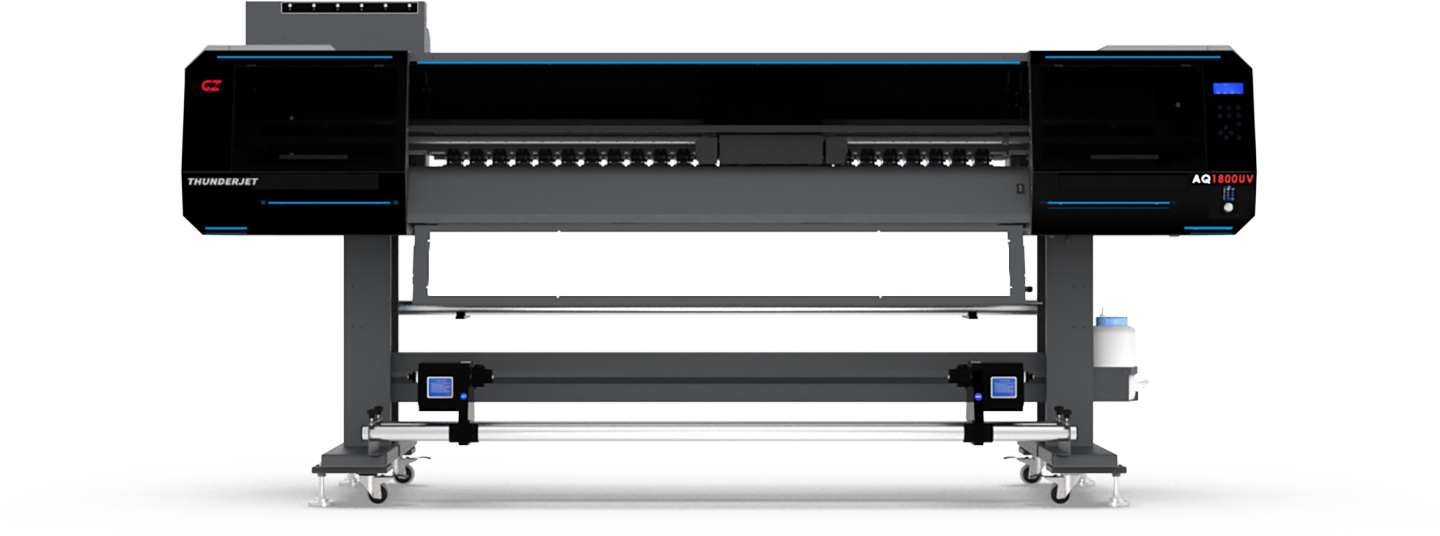

ThunderJet AQ1800UV
Industrial 1.8m Roll-to-Roll UV Printer with Varnish Layer
ThunderJet AQ1800UV

ThunderJet AQ1800UV

  • 3–4 Epson i3200-U1 print heads (variable dot) — higher-lane architecture for faster builds; “compact body with varnish option” noted on cover.
  • CMYK / White + CMYK / White + CMYK + Varnish — configurations support white under/over and clear effects for premium finishes.
  • Dual water-cooled LED UV lamps + water-cooled platen — maintains flatness and consistent cure on temperature-sensitive media.
  • Bulk ink with white-ink recirculation — circulates automatically to prevent sedimentation and protect heads.
  • 1.8 m roll-to-roll, heavy-duty handling — supports banner, coated PP, vinyl, backlit textile, PVC/PET films; up to Ø300 mm, 50 kg rolls, 2″/3″ cores.
  • Production-ready build & connectivity — anti-collision head protection; external Ethernet plus internal fiber-optic data link.
ThunderJet Aq1800UV

Core Features:

3 or 4 Epson i3200 U1 Print Heads
Electric Driven Pinch-Rollers
Intelligent Heating Control Unit
GZ Variable Dot Jetting Technology
Precision Step Adjustment System
Water-Chilled Anti-Wrinkle Platen

Specifications:

ThunderJet AQ1800UV

Print Head:

Epson i3200 U1 Print Head

Media Width:

1800mm Maximum

Ink:

REI-3 Greenguard Gold UV Flexible Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Colour; C.W.C; C.W.V; C.W.C.W.C

Colour Config:

K.C.Y.M; W + K.C.Y.M;

W + K.C.Y.M. + V

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation System

Ink Tank Capacity:

xxxxml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

364kgs / 510kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 3620x1150x950 / 4300x1150x950

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm): 3620x1150x950 / 4300x1150x950

Installed / Packed Dimensions:

Printing Speed:

Draft:

720 x 1200 dpi    Colour (3 Head):  46.8m²/h  CWC:  20.0m²/h  CWV:  11.5m²/h  CWKWC:  3.9m²/h

Production:

720 x 1200 dpi    Colour (3 Head):  41.0m²/h   CWC:  17.0m²/h  CWV:   9.5m²/h

High-Res:

720 x 1800 dpi    Colour (3 Head):  32.5m²/h   CWC:  11.0m²/h  CWV:   7.0m²/h  CWKWC:  2.6m²/h

Photo:

720 x 1800 dpi    Colour (3 Head):  23.0m²/h   CWC:   7.6m²/h  CWV:   6.0m²/h
