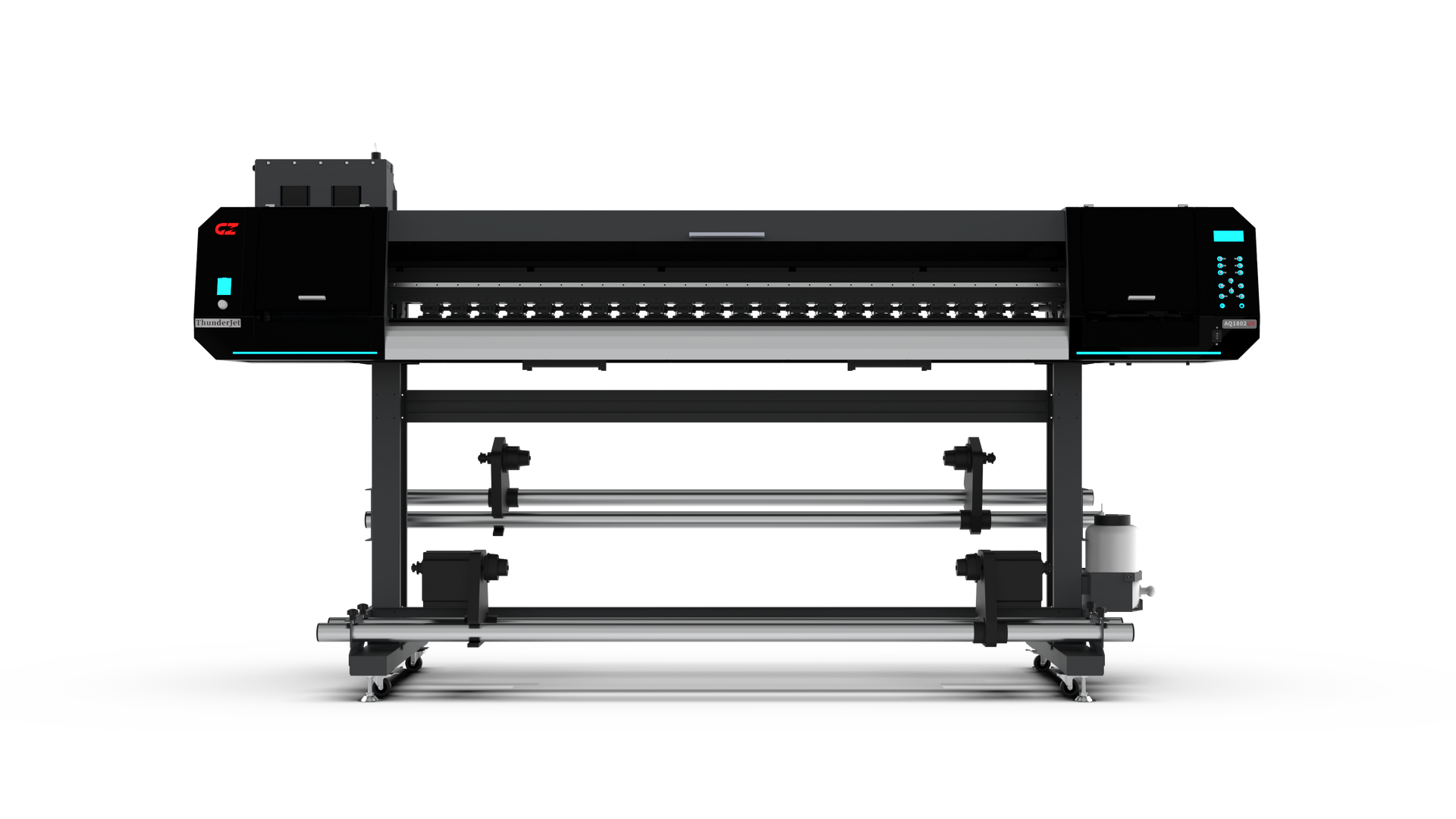

ThunderJet AQ1802UV
Business-Ready 1.8m Roll-to-Roll UV Printer
ThunderJet AQ1802UV

ThunderJet AQ1802UV

  • Single or Dual Epson i3200-U1 heads – balances speed and quality with variable dot output and UV flexible inks.
  • CMYK, dual-CMYK, or CMYK+White setups – adaptable ink configurations to suit different production needs.
  • Water-cooled LED curing – efficient, low-temperature system compatible with a wide range of substrates.
  • Continuous bulk ink system – with white recirculation to keep nozzles clear and production smooth.
  • Heavy-duty 1.8m roll support – handles 50 kg rolls, 2″/3″ cores, and a broad range of coated films and textiles.
  • Stable, accurate feed control – ensures consistent results across long runs and demanding materials.
  • Smart protection & connectivity – head anti-collision system plus Ethernet and fiber-optic data transmission for uninterrupted printing.
AQ1802UV

Core Features:

1 or 2 Epson i3200 U1 Print Heads
Electric Driven Pinch-Rollers
Intelligent Heating Control Unit
GZ Variable Dot Jetting Technology
Precision Step Adjustment System
Water-Chilled Anti-Wrinkle Platen

Specifications:

ThunderJet AQ1802UV

Print Head:

Epson i3200 U1 Print Head

Media Width:

1800mm Maximum

Ink:

REI-3 Greenguard Gold UV Flexible Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Single or Dual C.M.Y.K.

Colour Config:

K.C.Y.M; 2 x K.C.Y.M;

W + K.C.Y.M;

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation System

Ink Tank Capacity:

1500ml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

200kgs / 290kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2965x808x15248

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm): 2965x808x15248

Installed / Packed Dimensions:

Printing Speed:

Draft:

720 x 1200 dpi   Colour (1 Head):  11.5m²/h  Colour (2 Head):  20.0m²/h

Production:

720 x 1200 dpi   Colour (1 Head):  9.5m²/h   Colour (2 Head):  18.0m²/h

High-Res:

720 x 1800 dpi   Colour (1 Head):  7.0m²/h   Colour (2 Head):  14.0m²/h

Photo:

720 x 1800 dpi   Colour (1 Head):  6.0m²/h   Colour (2 Head):  12.0m²/h
