ThunderJet AQ1802UVZ
Business-Ready 1.8m Roll-to-Roll UV Printer with Mutli-Layer Printing
ThunderJet AQ1802UVZ

ThunderJet AQ1802UVZ

Single or Dual Epson i3200-U1 heads – delivers sharp, stable output with variable dot control and UV flexible inks.

3/4/5-layer print capability – enables creative combinations of color, white, and varnish for added depth and value.

Water-cooled LED curing with chilled platen – ensures even curing and keeps delicate films flat during production.

Bulk ink with white recirculation – maintains pigment stability, reducing clogging and downtime.

Precision media handling – serried pinch rollers and one-piece grit roller with adjustable tension minimize wrinkles and feed errors.

Versatile 1.8m roll platform – supports banners, PP, vinyl, backlit textiles, PVC/PET films up to 300 mm diameter and 50 kg rolls.

Built-in safeguards – anti-collision carriage protection and dual Ethernet/fiber data links for reliable operation.

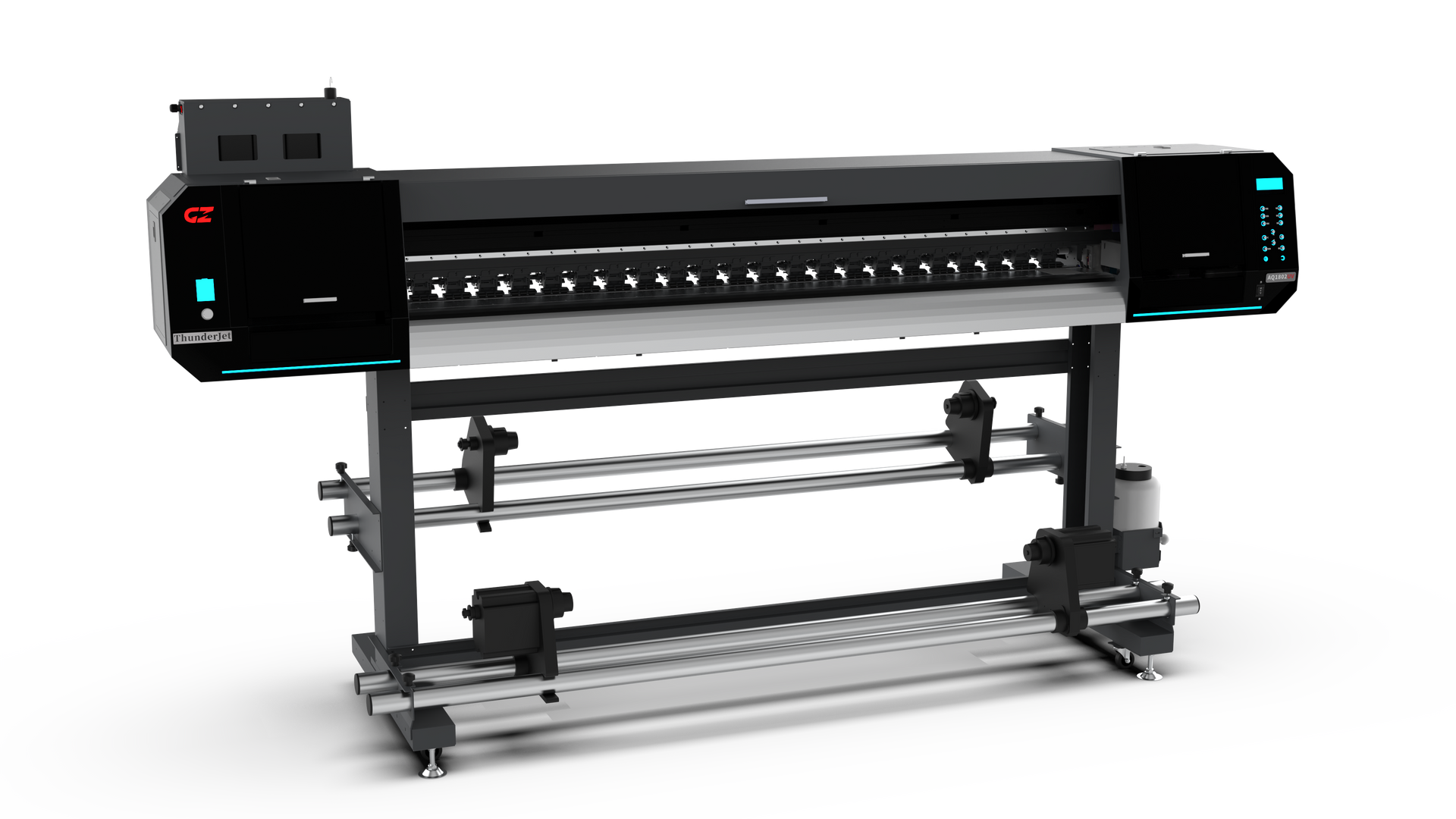

AQ1802UV

Core Features:

1 or 2 Epson i3200 U1 Print Heads
Electric Driven Pinch-Rollers
Intelligent Heating Control Unit
GZ Variable Dot Jetting Technology
Precision Step Adjustment System
Water-Chilled Anti-Wrinkle Platen

Specifications:

ThunderJet AQ1802UVZ

Print Head:

Epson i3200 U1 Print Head

Media Width:

1800mm Maximum

Ink:

REI-3 Greenguard Gold UV Flexible Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Colour; C.W.C; C.W.C.W.C

Colour Config:

K.C.Y.M; W + K.C.Y.M;

W + K.C.Y.M. + V

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation System

Ink Tank Capacity:

1500ml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

200kgs / 290kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2965x808x15248

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm): 2965x808x15248

Installed / Packed Dimensions:

Printing Speed:

Draft:

720 x 1200 dpi    Colour (1 Head):  11.5m²/h   CWC:  6.2m²/h

Production:

720 x 1200 dpi    Colour (1 Head):   9.5m²/h   CWC:  4.4m²/h   CWKWC:  2.6m²/h

High-Res:

720 x 1800 dpi    Colour (1 Head):   7.0m²/h   CWC:  4.1m²/h

Photo:

720 x 1800 dpi    Colour (1 Head):   6.0m²/h   CWC:  2.9m²/h   CWKWC:  1.7m²/h
