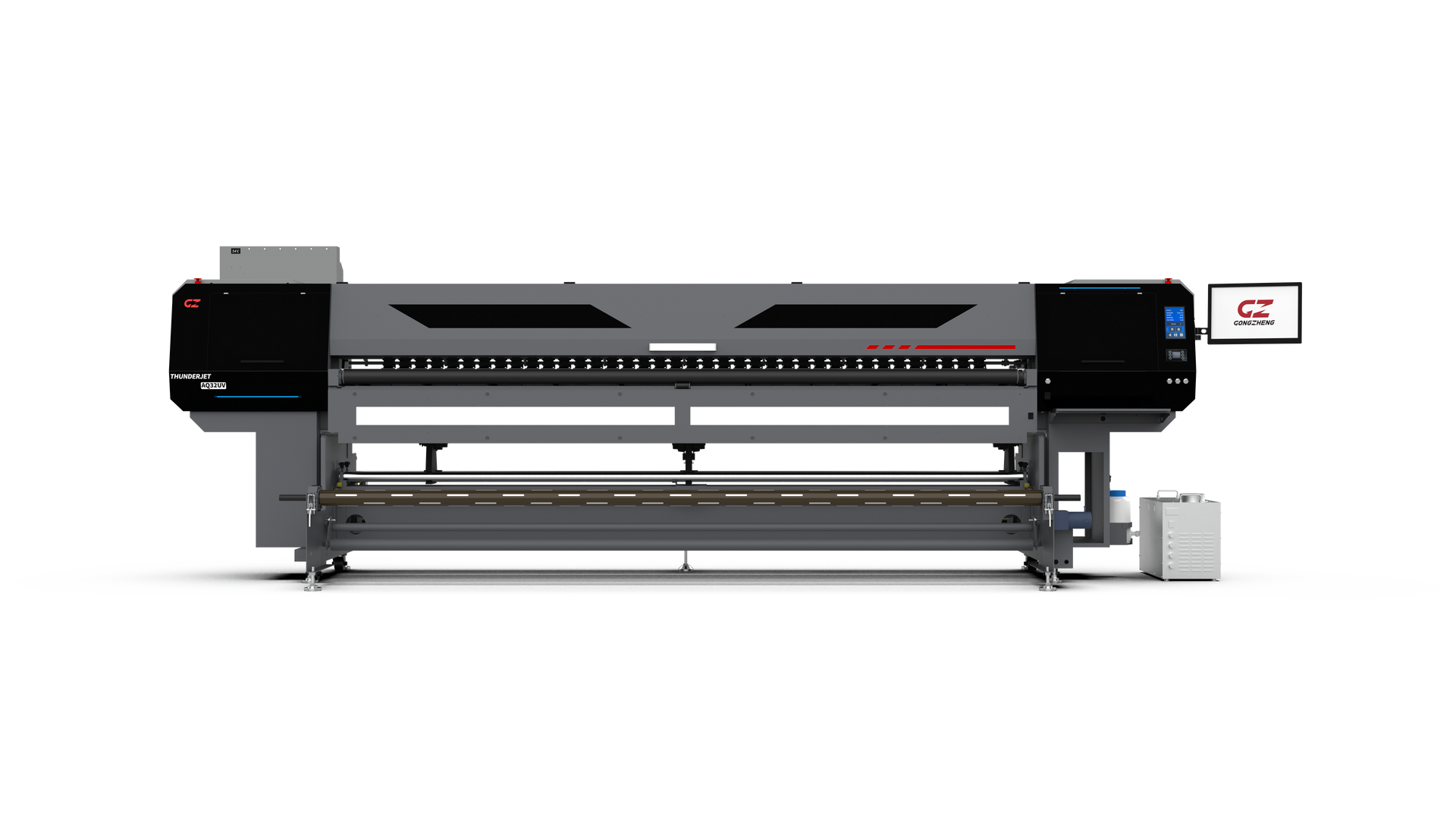

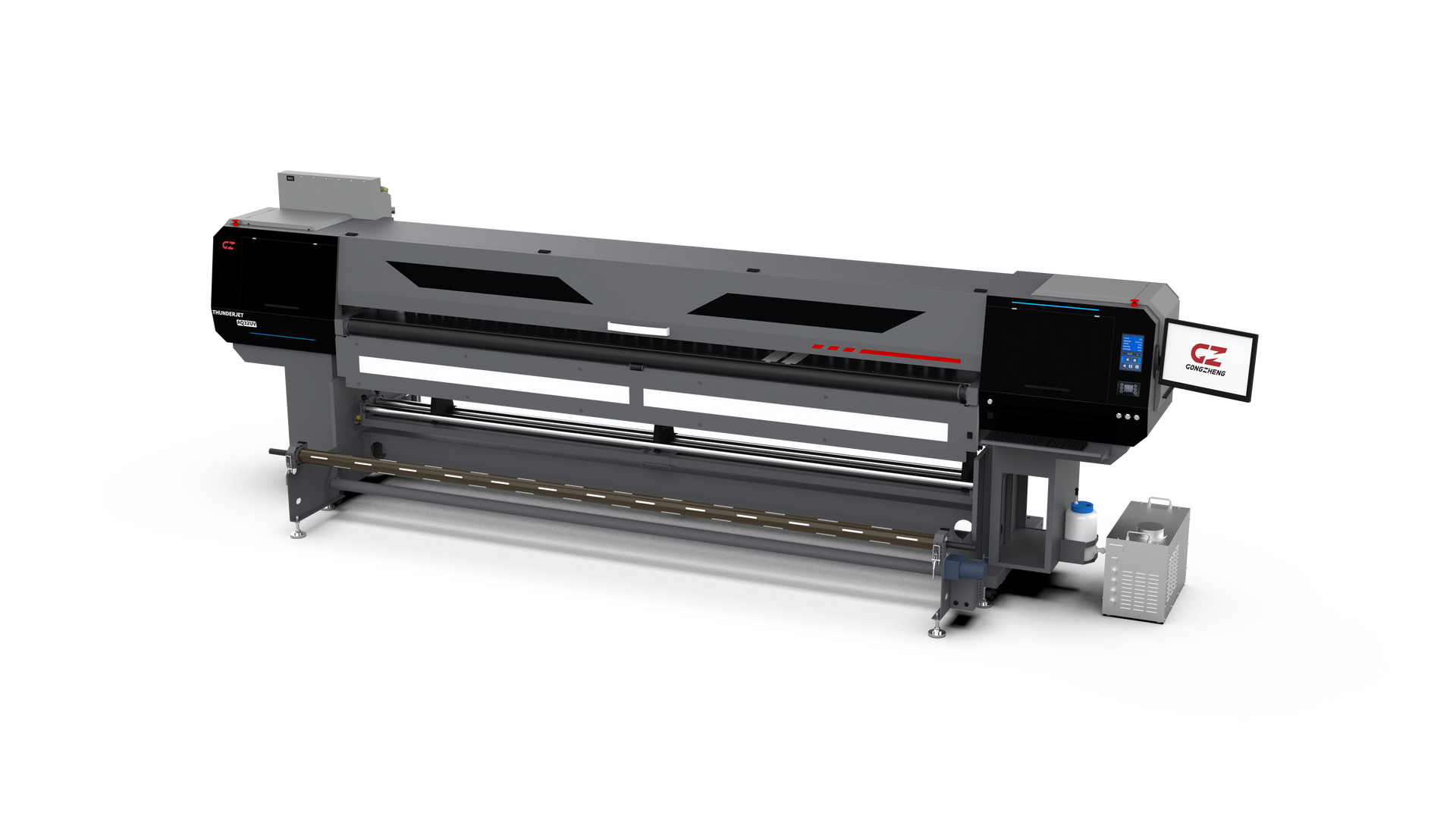

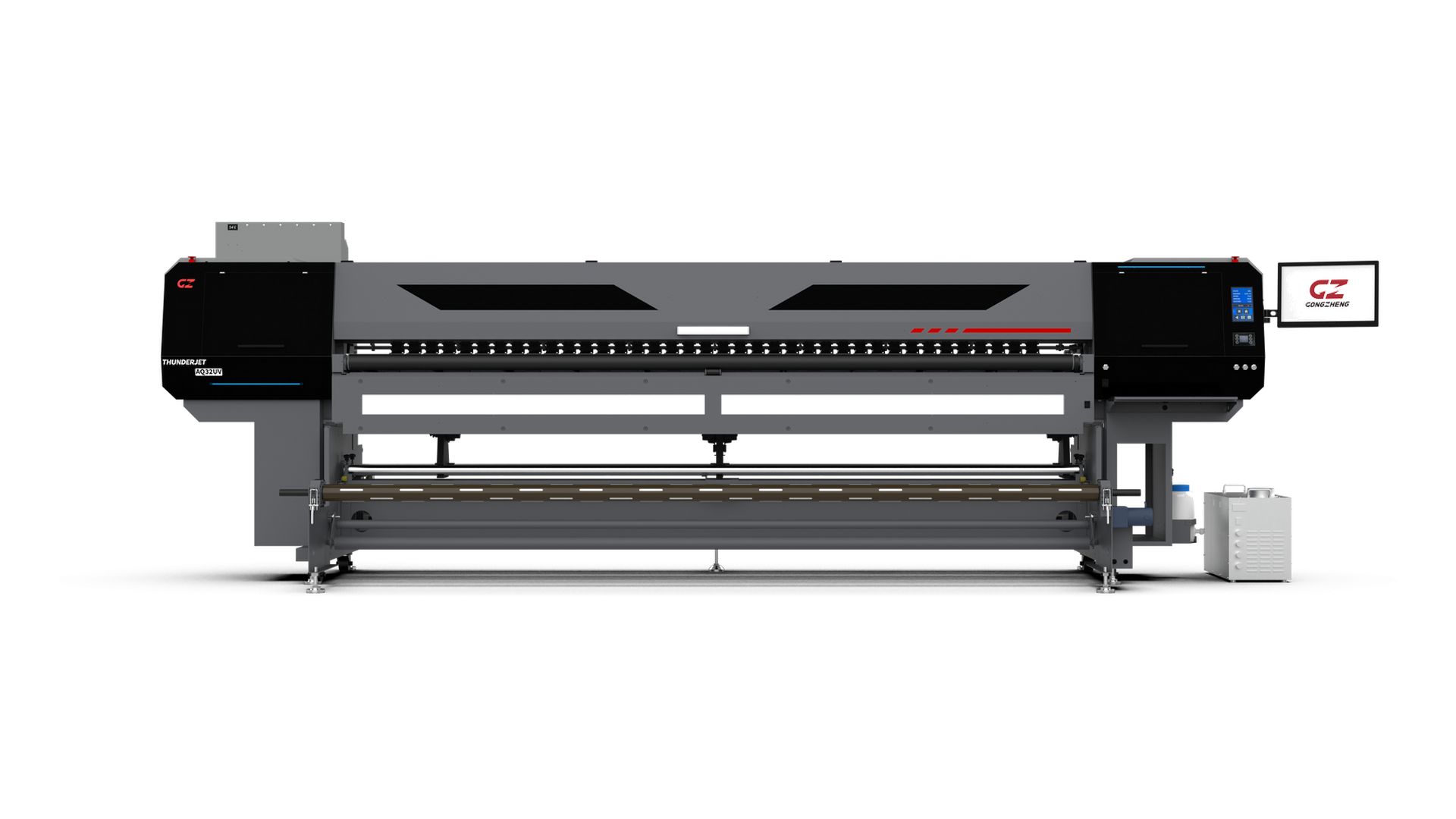

ThunderJet AQ32UV
High Quality 3.2m Roll-to-Roll UV Printer with Multi-Layer Printing
ThunderJet AQ32UV

ThunderJet AQ32UV

  • 3 to 4 Epson i3200-U1 heads – greyscale variable dot output across the full 3.2m width.
  • Multi-layer printing – colour, C.W.C, day-and-night C.K.W.C, and 5-layer C.W.K.W.C on demand.
  • Dual-roll feeding – runs two 1.52m rolls side by side, or one heavy wide roll up to 150kg.
  • Water-cooled platen – prints heat-sensitive substrates flat, without wrinkling.
  • White ink recirculation and stirring – keeps pigment in suspension so white stays reliable between jobs.
  • Dual water-chilled LED curing – consistent cure at production speed.
  • Anti-collision carriage – protects the heads on uneven or lifting media.

Core Features:

3 or 4 Epson i3200 U1 Print Heads
Up to 5-Layer Printing (C.W.K.W.C)
Dual-Roll Constant Tension Feeding
Water-Chilled Anti-Wrinkle Platen
White Ink Recirculation & Stirring
Anti-Collision Carriage Unit

Specifications:

ThunderJet AQ32UV

Print Head:

Epson i3200 U1 Print Head

Media Width:

3200mm Maximum

Ink:

REI-3 Greenguard Gold UV Ink

Media Type:

Banner, Vinyl, Backlit Textile, PVC film, PET Film, Coated PP...

Multi-Layer Printing:

Colour; C.W.C; C.K.W.C; C.W.K.W.C

Colour Config:

K.C.Y.M; W + K.C.Y.M;

W + K.C.Y.M. + V

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation & Stirring System

Ink Tank Capacity:

1500ml

Curing System:

Dual Water-Chilled LED UV Lamps

Roll Diameter:

300mm Maximum

N.W. / G.W:

1275kgs / 980kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 5088x1320x1657 / 5400x1150x1760

Data Interface:

External: Ethernet

Internal: Fiber Optical

Working Climate:

Temp: 23℃ - 29℃

Humidity: 50% - 80%

Software:

FlexiPRINT UV 22 / ONYX RIPCenter (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 8A (Printer) + 8A (UV Control)
LxWxH(mm): 5088x1320x1657 / 5400x1150x1760

Installed / Packed Dimensions:

Printing Speeds:

Draft:

Colour: 40 m²/h
CWC: 13.3 m²/h
WCV: 13.3 m²/h
CWKWC: 4.3 m²/h
720 × 1200 dpi

Production:

Colour: 32.8 m²/h
CWC: 10.9 m²/h
WCV: 10.9 m²/h
CWKWC: 3.6 m²/h
720 × 1200 dpi

High-Res:

Colour: 27.7 m²/h
CWC: 9.2 m²/h
WCV: 9.2 m²/h
CWKWC: 3.1 m²/h
720 × 1800 dpi

Photo:

Colour: 24 m²/h
CWC: 8 m²/h
WCV: 8 m²/h
CWKWC: 2.7 m²/h
720 × 1800 dpi
