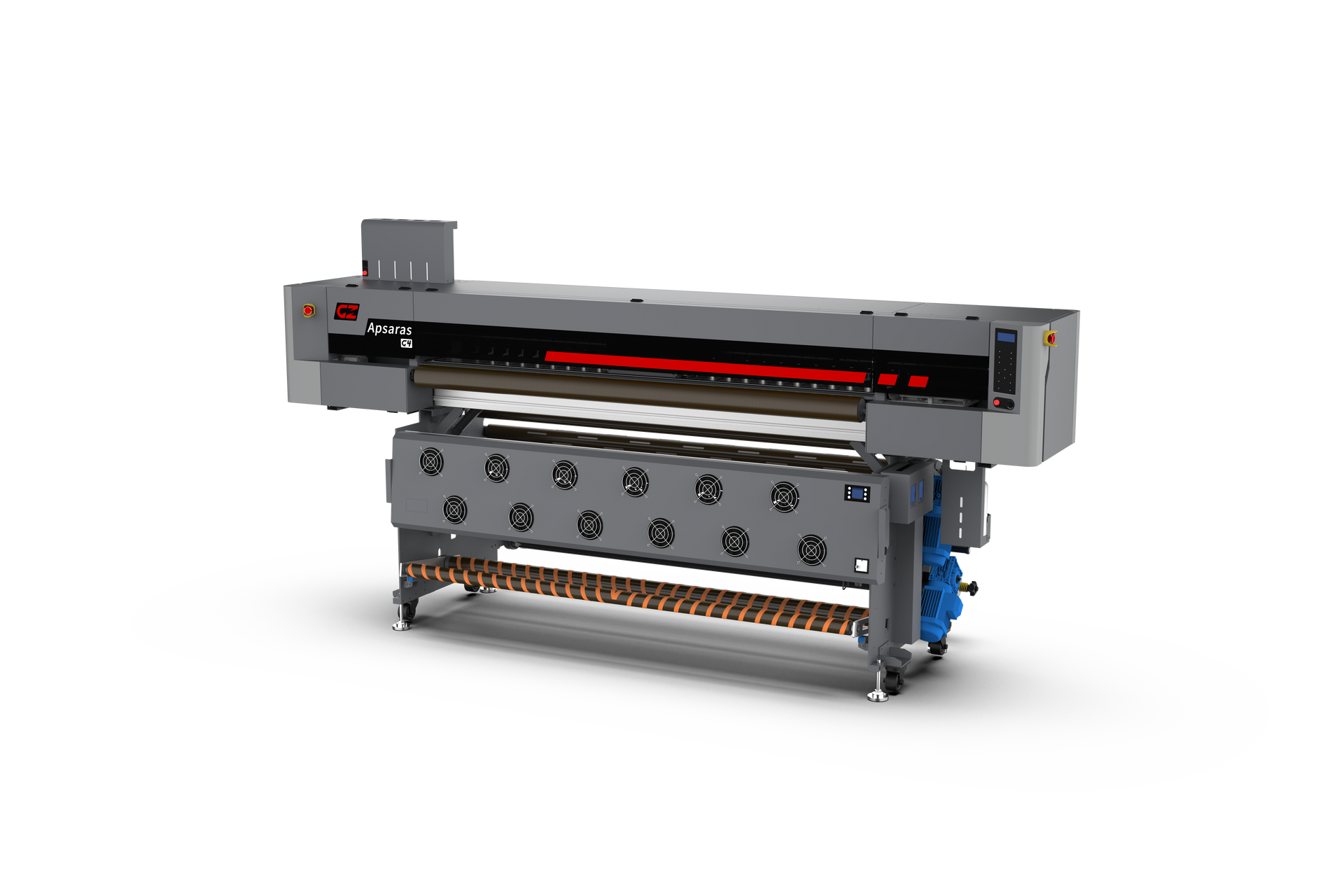

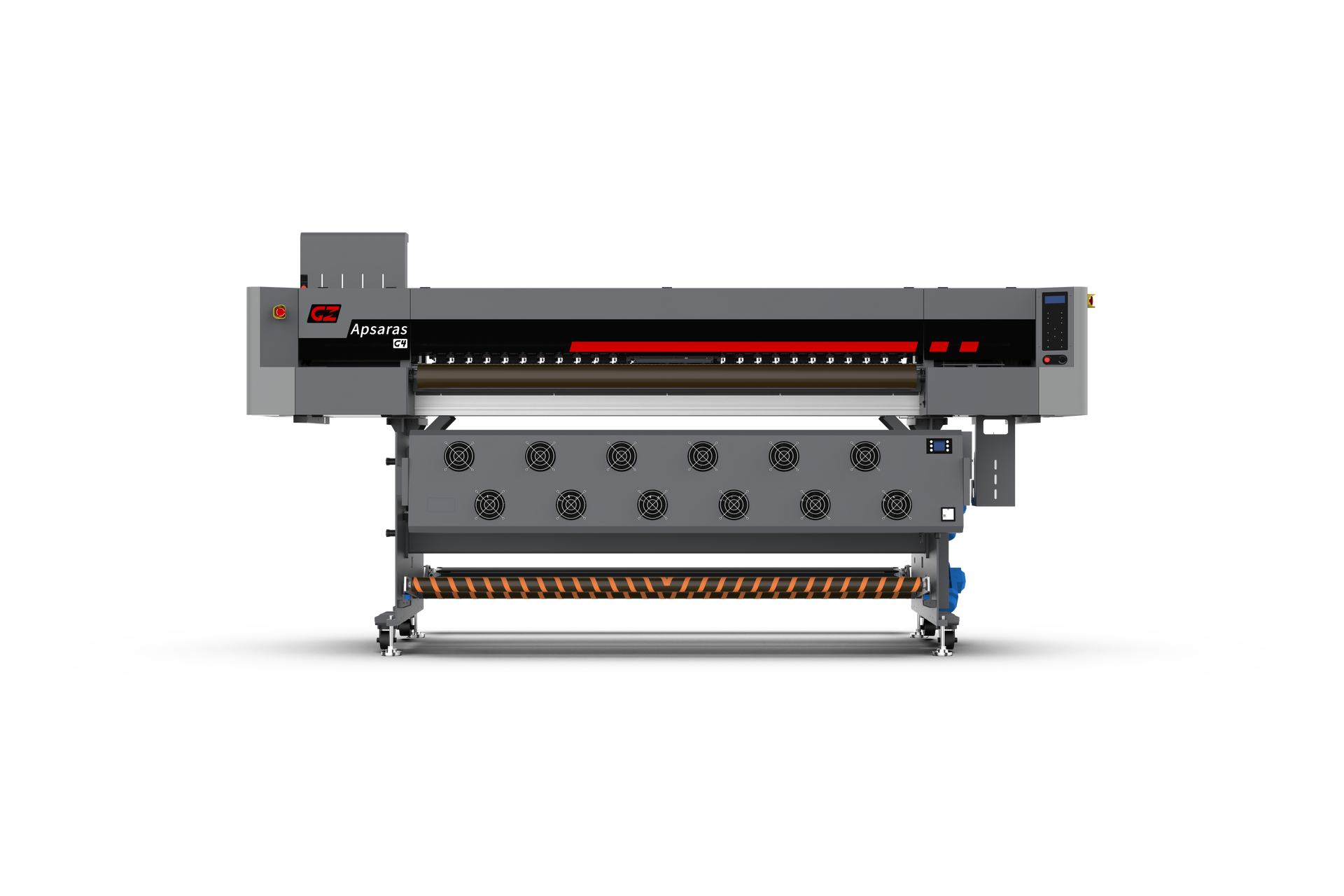

Apsaras G4
1.9 m high-speed transfer sublimation printer
Apsaras G4

Core Features

  • 4 Epson i3200-A1 heads  – staggered print head array delivers up to 185 m²/h productivity.
  • Eco-certified sublimation inks  – GS High Density inks, OEKO-TEX approved for safe textile production.
  • High-speed sublimation printing – powerful 1.95m width solution for banners, apparel, and soft signage.
  • High-precision media system – industrial feeding with air shafts ensures stable, accurate fabric handling.
  • Grooving anti-wrinkle platen – prevents creasing and guarantees smooth transfers across varied substrates.
  • Intelligent IR drying system – sectional heating ensures even curing and faster, reliable turnaround.

Apsaras G24

Core Features

4 Epson i3200 heads
OEKO-TEX certified inks
185 m²/h output
Precision media system
Anti-wrinkle platen design
Sectional IR dryer

Apsaras G4

Specifications

GW.N.W:

525kgs / 750kgs

Print Head:

Four Epson i3200-A1 Print Heads

Curing System:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Media Thickness:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Media Type:

Transfer Paper

Printing Size:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Environment:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

neoStampa 10 / Ergo16 + GZ Printer Manager

Power Requirements:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 5.5A + IR Dryer: 18A + 28A

Power Consumption:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Installed / Packed Dimensions:

LxWxH(mm): 3500×1280×1790 / 2880×1090×750

Printing Speed:

Mode            Resolution          Output


Draft             720×600 dpi      95㎡/h


Production   720×600 dpi      85㎡/h


High-res       720×1200 dpi    47㎡/h


Photo           720×1200 dpi    37㎡/h
