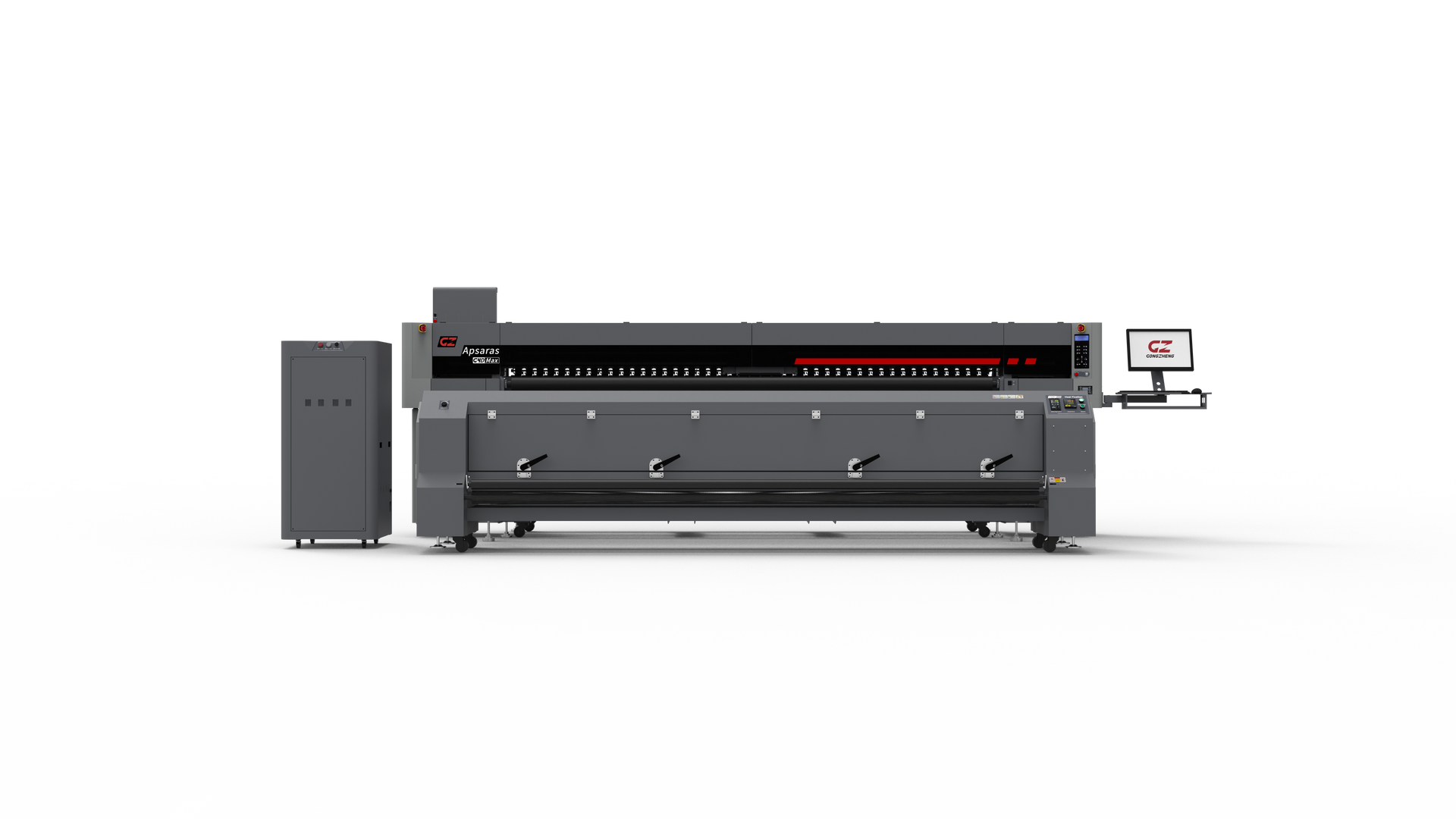

Apsaras G4D Max
1.9 m hybrid textile transfer sublimation system
Apsaras G4D Max

Core Features

  • Hybrid printing technology  – supports both direct sublimation and paper transfer in one machine.
  • 4 Epson i3200-A1 heads  – industrial-grade print heads deliver sharp detail and consistent high-speed output.
  • Extra-wide 3.2m format – perfect for large-scale textiles, soft signage, and exhibition graphics.
  • Inline & offline order solutions – flexible workflows for both customised jobs and mass production runs.
  • Eco-certified sublimation inks – OEKO-TEX approved, safe and sustainable for textile applications.
  • Intelligent heat fixation unit – AI temperature control ensures vibrant colours and durable, washable prints.

Core Features

Hybrid sublimation technology
4 Epson i3200 heads
3.2m super-wide format
Inline/offline workflows
OEKO-TEX sublimation inks
Ai heat fixation

Apsaras G4D Max

Specifications

GW.N.W:

1368kgs / 1008kgs

Print Head:

Four Epson i3200-A1 Print Heads

Curing System:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Media Thickness:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Media Type:

Wall Fabric, Banners, Paper

Printing Size:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Environment:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

neoStampa Delta + GZ Printer Manager xxxx Colour Booster (Optional)

Power Requirements:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 18A + IR Dryer: 44A + Heat Fixation: 2 x 28A

Power Consumption:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Installed / Packed Dimensions:

LxWxH(mm): 4728×1280×1720 / 4900×1080×1870 Heat Fixation Unit: 4100x 1350x 1000 / 4250x 800x 1200

Printing Speed:

Mode            Resolution          Output


Draft             360×600 dpi      110㎡/h


Production   720×1200 dpi      82㎡/h


High-res       360×1800 dpi    64㎡/h


Photo           720×1200 dpi    55㎡/h
