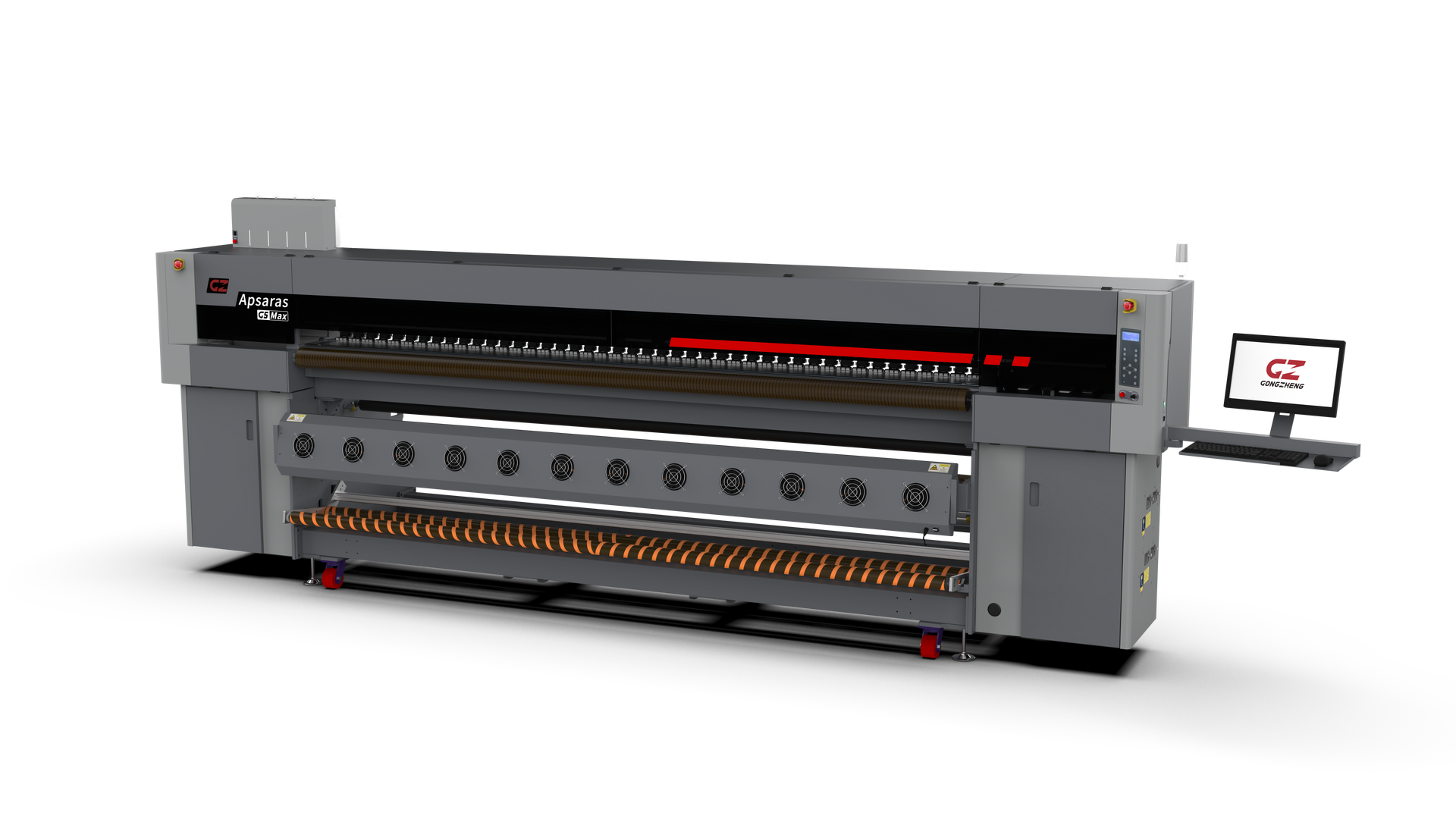

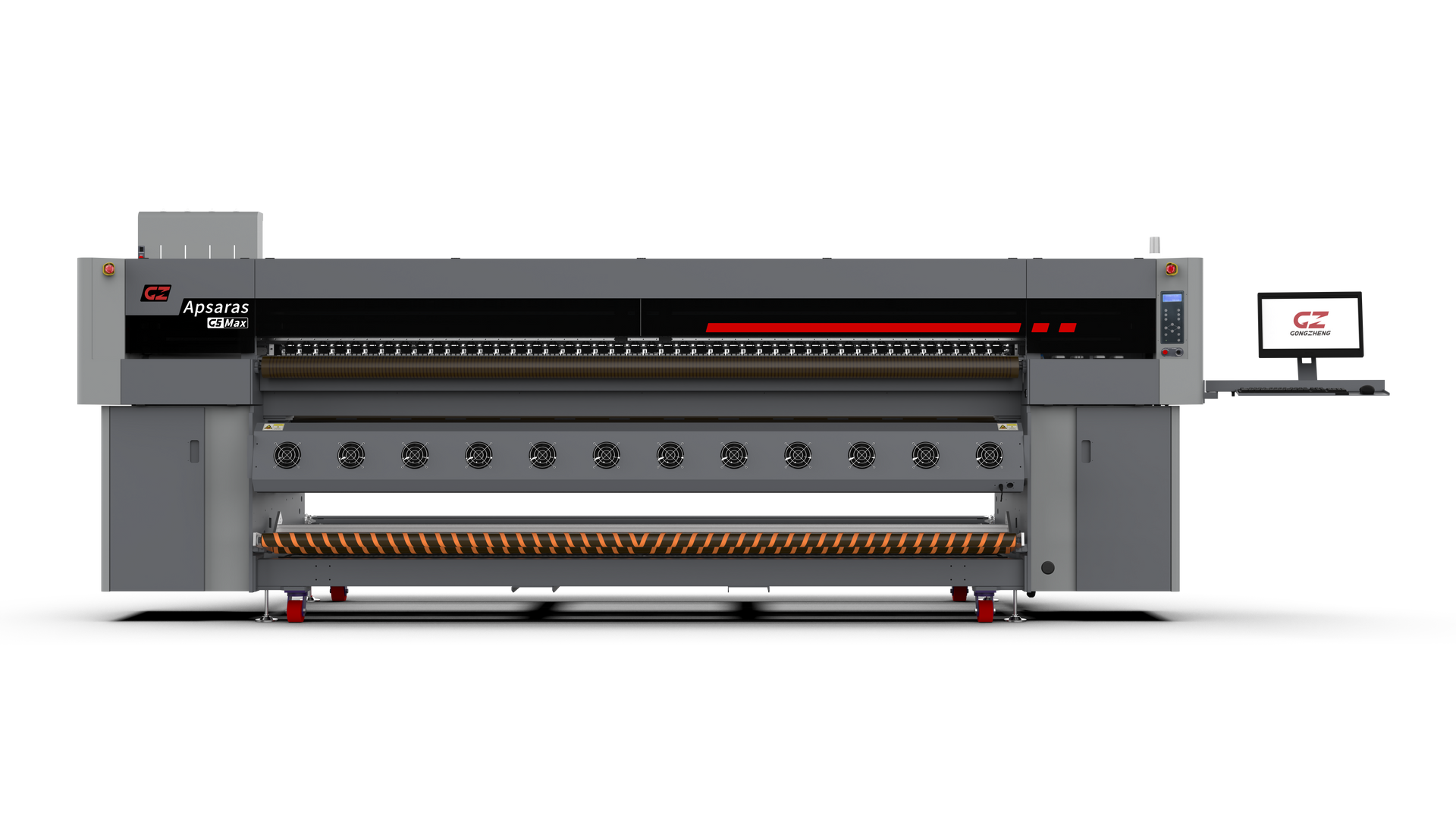

Apsaras G5 Max
Industrial 3.25m Sublimation Printer
Apsaras G5 Max

Core Features

  • 8 Epson i3200-A1 heads  – staggered head array delivers ultra-fast output up to 403 m²/h.
  • Super-wide 3.2m format  – designed for large banners, home textiles, and high-volume production.
  • Eco-certified sublimation inks – GS High Density inks, OEKO-TEX approved for safe textile printing.
  • Industrial media handling system – heavy-duty 3.2m feeding supports jumbo rolls with precision stability.
  • Grooving anti-wrinkle platen – prevents creasing, ensuring smooth transfers across wide-format fabrics.
  • Intelligent IR drying system – sectional control provides even curing and maximum reliability at scale.

Apsaras G5 Max

Core Features

8 Epson i3200 heads
403 m²/h max speed
3.2m super-wide format
Heavy-duty media system
Anti-wrinkle platen
Intelligent IR drying

Apsaras G5 Max

Specifications

GW.N.W:

1294kgs / 1734kgs

Print Head:

Eight Epson i3200-A1 Print Heads

Curing System:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Media Thickness:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Media Type:

Transfer Paper

Printing Size:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Environment:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

neoStampa 10 / Ergo17 + GZ Printer Manager

Power Requirements:

Single Phase, 50Hz/AC, 220V ± 10%, Printer: 5.5A + IR Dryer: 18A +28A

Power Consumption:

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Installed / Packed Dimensions:

LxWxH(mm): 2760×650×1280 / 2880×1090×750

Printing Speed:

Mode            Resolution          Output


Draft             720×600 dpi      95㎡/h


Production   720×600 dpi      85㎡/h


High-res       720×1200 dpi    47㎡/h


Photo           720×1200 dpi    37㎡/h
