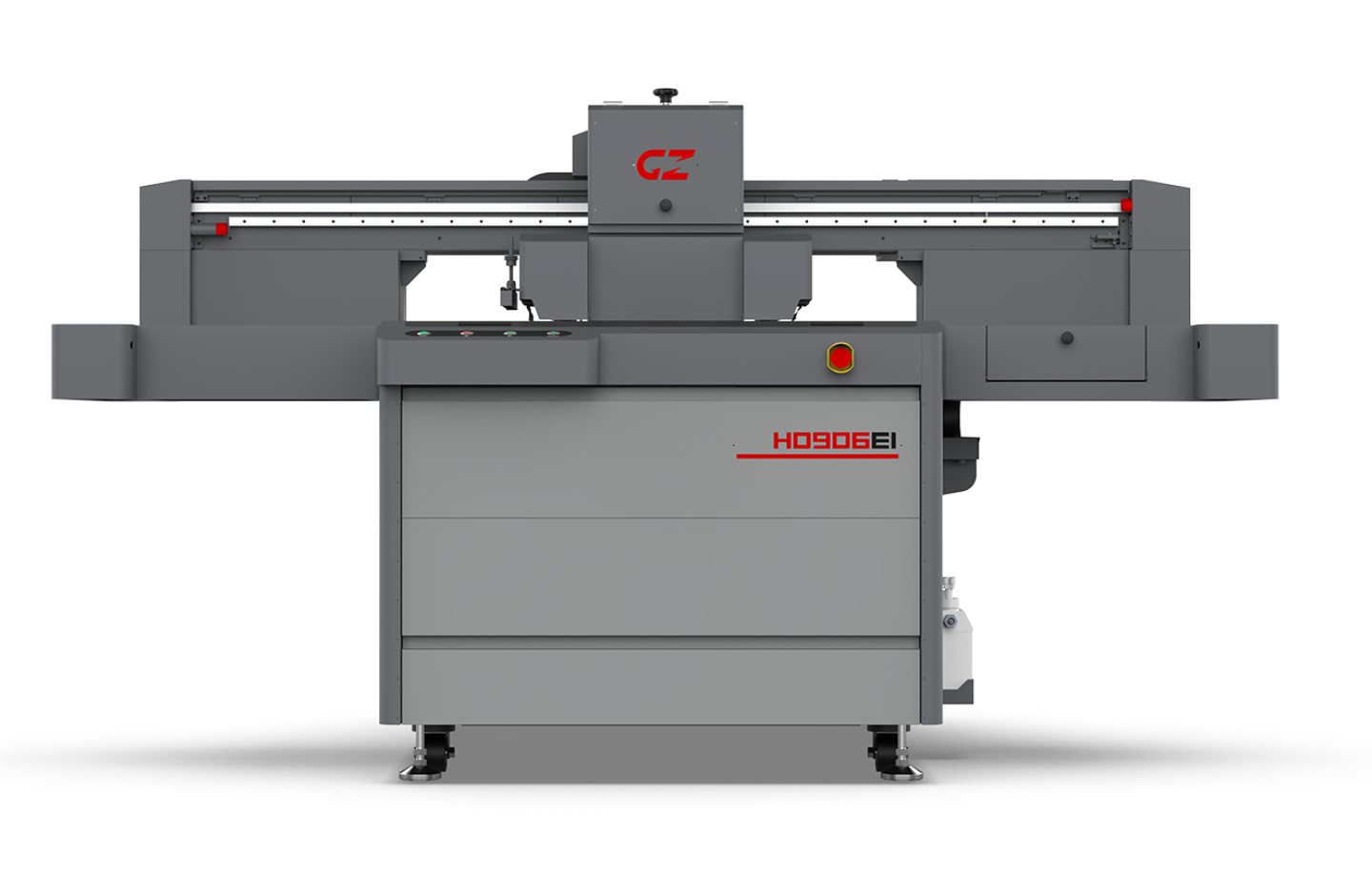

H0906EI
High-end 900x600mm Flatbed UV Printer
H0906EI

Core Features

  • 2 or 3 Epson i3200-U1 Print Heads – Optimised head configuration ensures higher speeds and sharp, professional-grade print output.
  • Precise Vacuum Platen with Adjustable Points – secure media handling with adjustable platen points for flawless registration accuracy.
  • Automatic Media Thickness Detector – smart detection system adjusts instantly for consistent, high-quality printing results.
  • Intelligent Anti-Collision System – advanced sensors detect obstacles in real time, automatically pausing carriage movement to protect printheads and media integrity.
  • 4 × Water-Cooled UV Lamps – powerful UV curing for varied gloss effects

Core Features

Triple Epson i3200-U1 printheads


Automatic media thickness detection


Intelligent anti-collision protection system


Constant-temperature printhead heating


White ink recirculation technology


DTF Embroidery ready

Specifications

H0906EI

Print Head:

2-3 Epson i3200-U1 Print Heads

Print
Area:

900 x 600mm

Ink:

REI-3 Rigid or Flexible UV Ink or

GZ TPU Ink + Film

Media Thickness:

Up to 150mm

Ink Supply System:

1.2L Bulk Supply System with White Ink Recirculation System

Curing System:

4 x Water Chilled LED UV Lamp

Media Type:

Acrylic, Aluminum, Foam / PVC Board, Leather, Glass Drink bottles, Wood, Ceramic...

Working Env:

Temp:       20℃ - 30℃

Humidity: 35% - 65%

Data
Interface:

External: Ethernet

Internal:  Fiber Optical

Software:

FlexiPRINT Mini UV + GZ Control Console

GW.N.W:

492 kgs / 690 kgs

Power Draw:

Printer:             1100W

UV Controller:  800W

Power
Req:

Single-phase , AC 220V ± 10%, 50 / 60Hz, 10A

Dimensions:
(Installed / Packed)

LxWxH(mm): 2300x1770x1600 / 2180x1565x1271

Printing Speed:

Draft:

720x1200dpi     CMYK + W     4.2min / Sheet     CMYK + W + V     4.5min / Sheet

Production:

720x1200dpi     CMYK + W     4.2min / Sheet     CMYK + W + V     4.5min / Sheet

High-Res:

720x1200dpi     CMYK + W     4.2min / Sheet     CMYK + W + V     4.5min / Sheet

Photo:

720x1200dpi     CMYK + W     4.2mins / Sheet     CMYK + W + V     4.5min / Sheet
