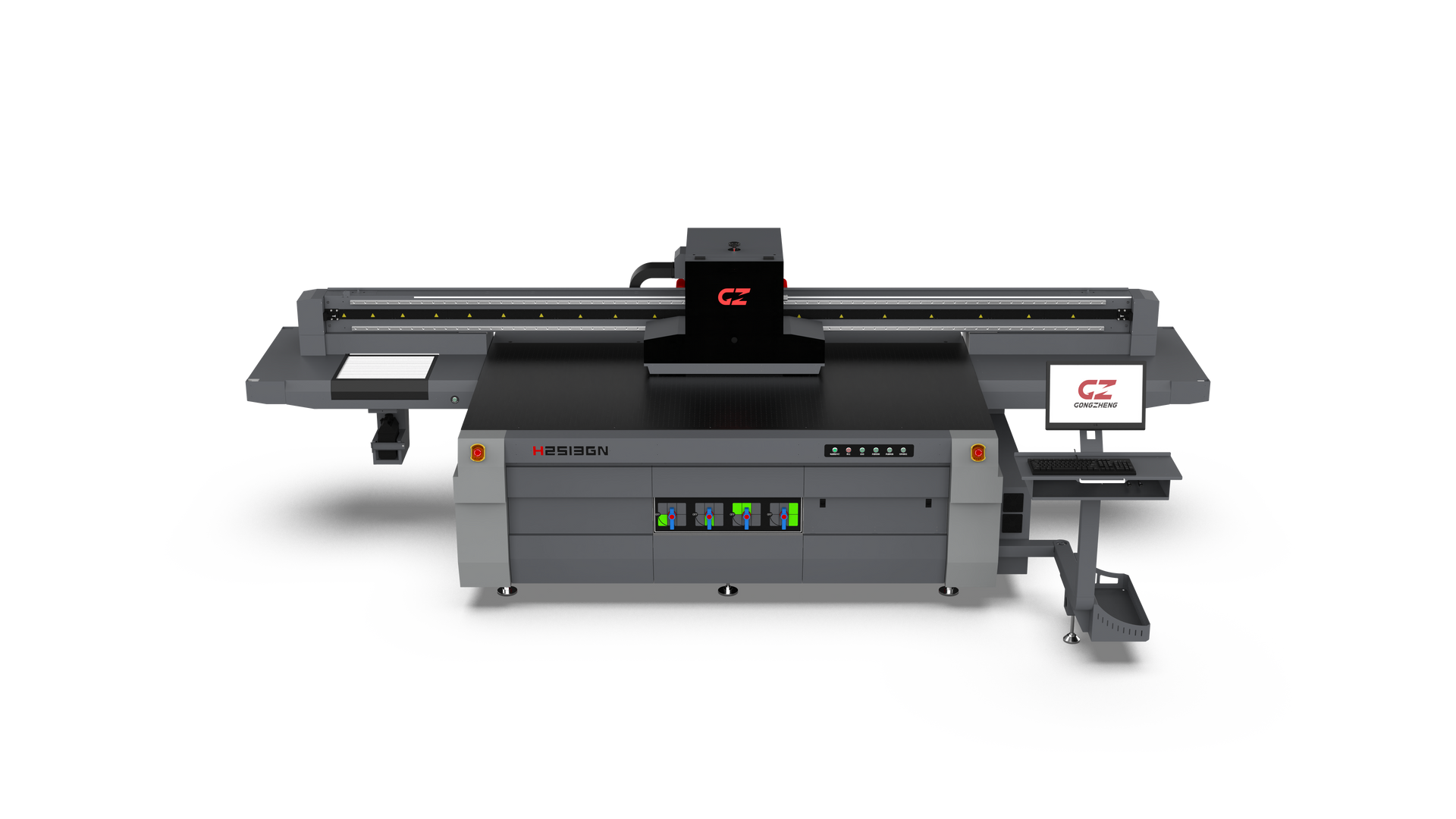

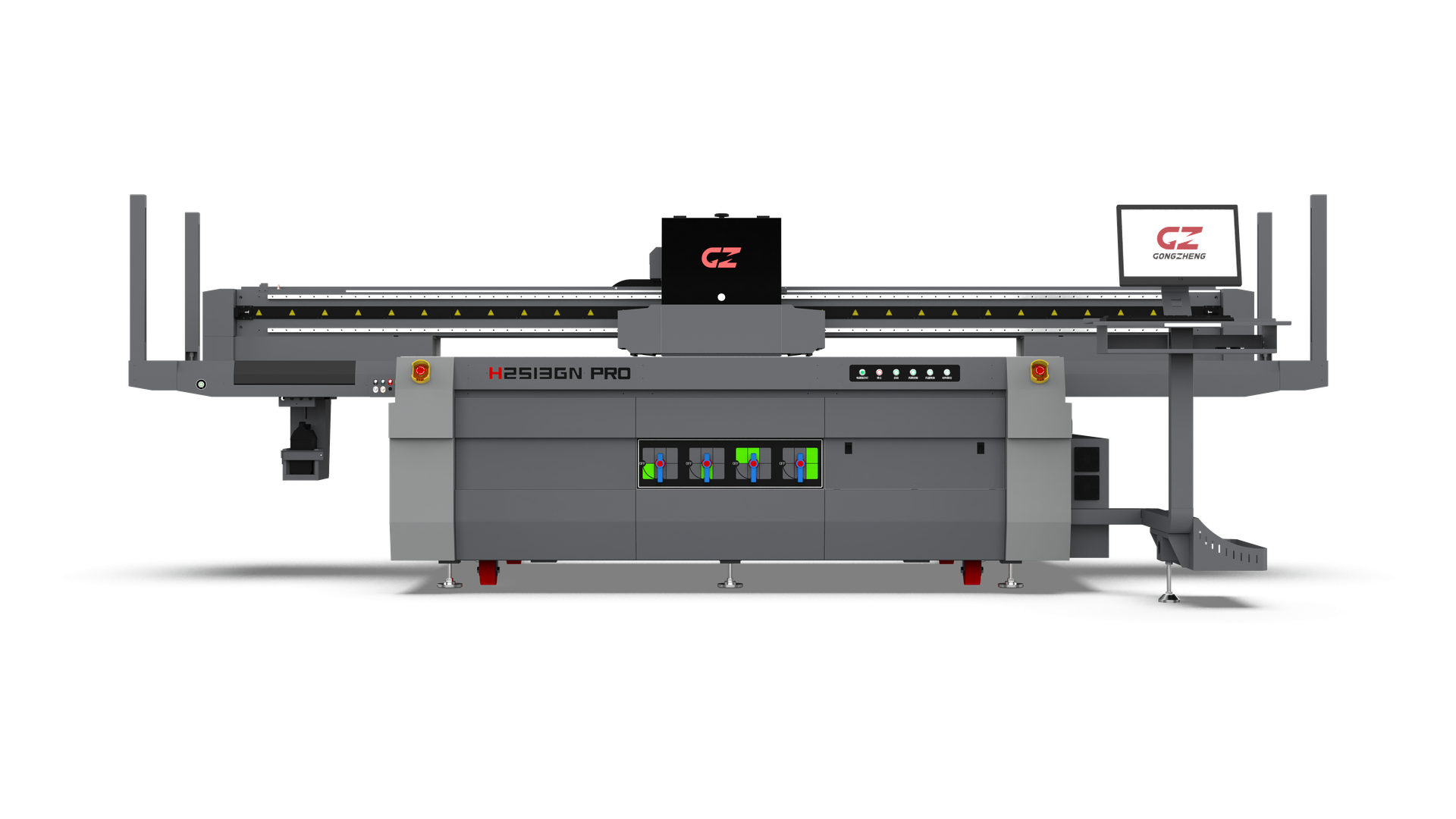

H2513GN PRO
Next-Gen 2.5x1.3m UV Flatbed with up to 18 Ricoh G6 Heads

Features:

  • Up to 18 Ricoh G6 heads in 6 rows – maximum industrial throughput.
  • Built-in linear motor and metal encode – precision movement system.
  • Built-in safety light curtain – operator safety standard.
  • 6-colour option with LcLm – extended colour gamut for photo quality.
  • 2.5x1.3m vacuum table – handles large rigid substrates.
  • Water-cooled LED UV lamps – instant curing at production speed.

Core Features

Up to 18 Ricoh G6 Heads
6-Row Head Configuration
Built-in Linear Motor
Safety Light Curtain
Metal Encode System
Extended Gamut (LcLm)

Specifications:

H2513GN PRO

Print Head:

Up to 18 Ricoh G6 Heads (6 Rows)

Print Area:

2500x1300mm

Ink:

UV Curable Ink

Media Thickness:

Up to 100mm

Ink Supply System:

Gntek Negative Pressure System with White Ink Circulation

Curing System:

Water Cooling LED UV Lamps

Media Type:

Acrylic, ACP, PVC, Leather, Glass, Wood, Ceramic

Working Environment:

Temp: 20℃ - 30℃
Humidity: 35% - 65%

Data
Interface:

External: USB 3.0
Internal: Fiber Optical

Software:

FlexiPRINT UV + GZ Control Console

GW.N.W:

TBA

Power Consumption:

Power
Req:

Single Phase AC 220V

Dimensions:
(Installed / Packed)

TBA

Printing Speeds:

Production:

TBA

Draft:

High-Res:

TBA

Photo:

TBA

Product Video:
