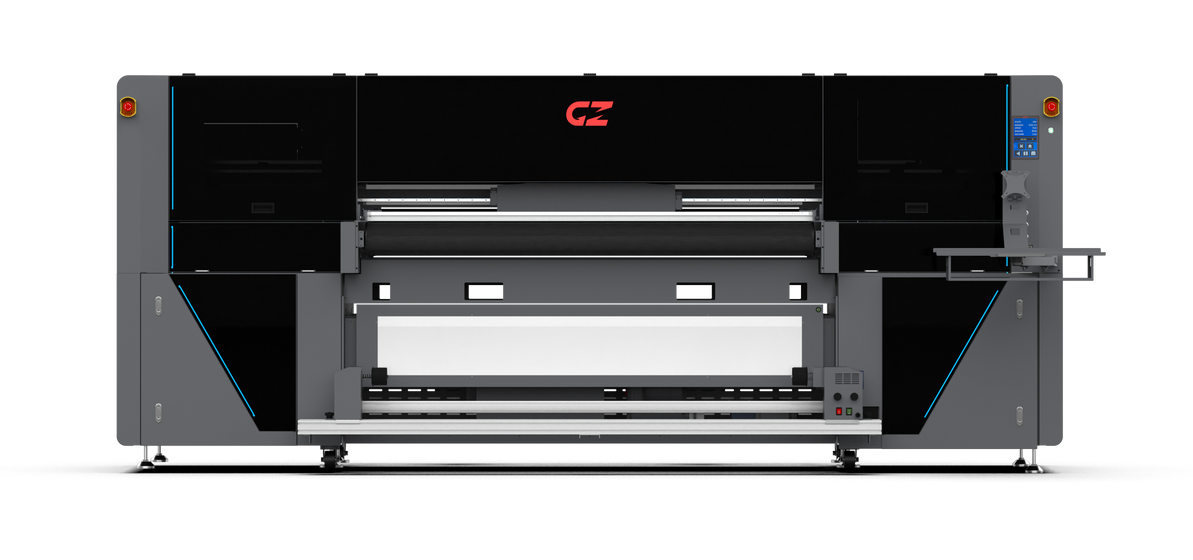

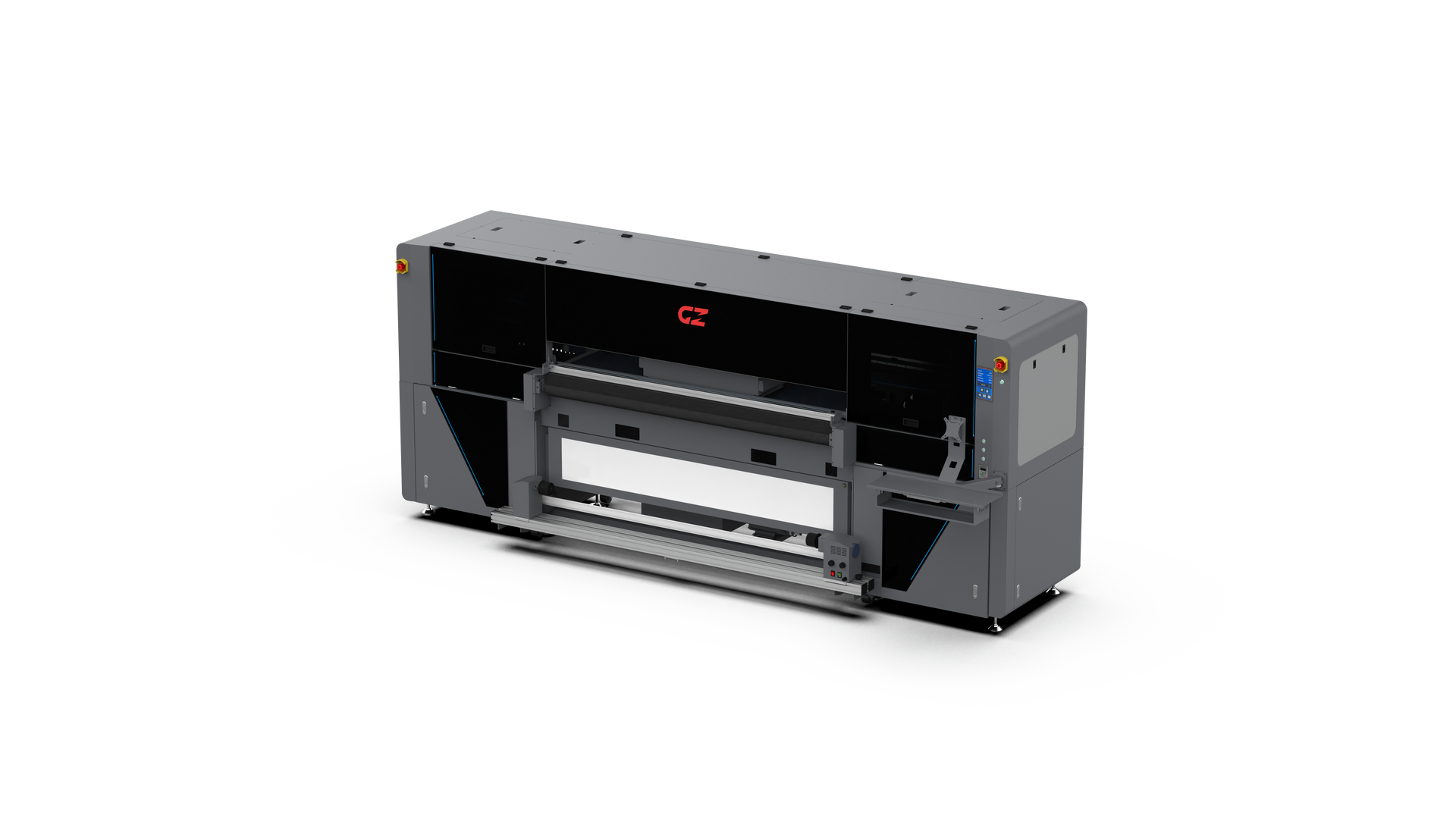

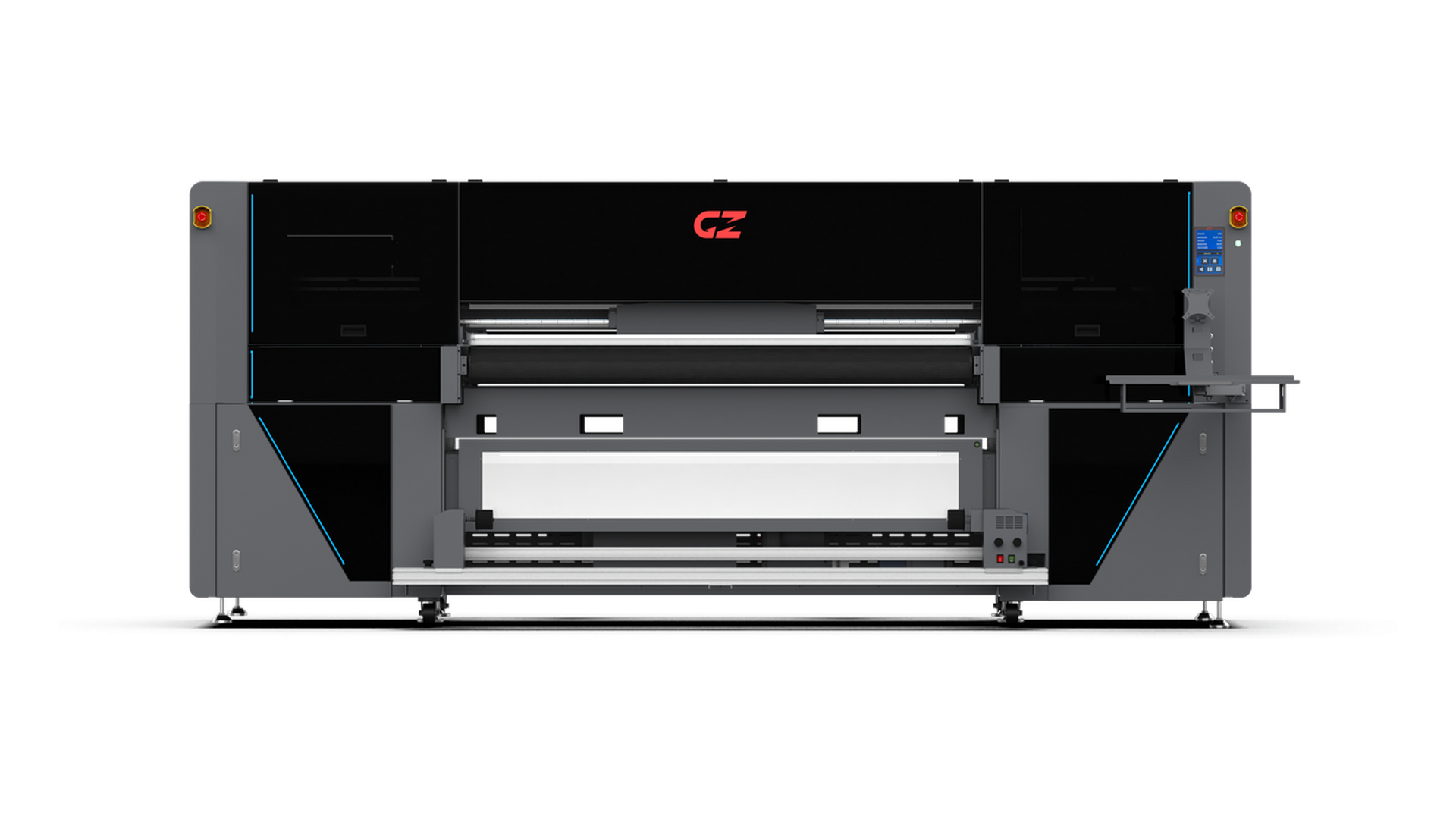

HB18UV PRO
Industrial 1.8m Hybrid Belt UV Printer for Rigid & Flexible Media
HB18UV PRO

HB18UV PRO

  • 4 to 8 Epson i3200-U1 print heads - the HB18UV PRO scales from a 4-head entry configuration right up to a full 8-head industrial layout. Head positioning is fully flexible, so you can dedicate channels to white, varnish, or KCMY depending on the job mix.
  • Industrial belt system with extension tables - the mesh belt conveyor handles both rigid flat boards and flexible roll media in the same machine, without changeover. Extension tables front and back keep large rigid sheets stable as they travel through.
  • Multi-layer printing (up to 5 layers) - the HB18UV PRO supports CWC (3-layer), CKWC day-and-night (4-layer), and CWKWC on-demand (5-layer) effects. This opens up dimensional texture, backlit signage, and fine detail applications that a single-pass printer can’t touch.
  • Greenguard Gold REI-3 UV ink - certified for indoor air quality, making the HB18UV PRO suitable for schools, hospitals, and public-space applications where standard UV inks may not comply.
  • White ink recirculation and stirring system - white pigment is heavy and settles fast. The HB18UV PRO circulates and stirs white ink continuously during idle periods, preventing sedimentation that causes head blockages and inconsistent opacity.
  • Optional glossy and matte varnish - with up to 8 heads and a flexible layout, you can add a dedicated varnish channel for spot gloss or matte finishing. Position the varnish head at the front or back of the array to control the effect.
HB18UV PRO

Core Features:

Rigid + Roll in One Machine
59 sqm/hr Draft Speed
Multi-Layer Printing (CWC/CWKWC)
Greenguard Gold Ink
Up to 8 i3200-U1 Heads
White Ink Recirculation & Stirring

Specifications:

HB18UV PRO

Print Head:

4~8 Epson i3200-U1 Print Heads

Media Width:

1850mm Max. Width

Multi-Layer Printing:

Up to 8 heads; flexible layout for W, V, and KCMY

Colour Config:

KCMY; KCMY+W; W+KCMY+V

Ink:

Greenguard Gold REI-3 UV Ink

Media Thickness:

Up to 100mm (rigid substrates)

Ink Supply System:

Bulk Ink Supply + White Ink Recirculation & Stirring

Ink Tank Capacity:

1500ml per colour

Curing System:

Dual Water Cooling LED UV Lamps

Media Type:

Ceiling Film, Vinyl, Backlit, Fabric, Wallpaper, Leather, PVC Board, Foam Board, Corrugated, Aluminium, Wood

N.W. / G.W:

1714kg / 1384kg

Dimensions:
(Installed / Boxed)

LxWxH(mm): 3740x1407x1581 / 3900x1150x1830

Data Interface:

USB 3.0

Working Climate:

23℃~29℃, Humidity 50%~80%

Software:

FlexiPRINT / ONYX (Optional) + GZ Printer Manager

Power Req:

Single-phase 220V±10% 50Hz; 12A (Printer) + 8A (UV Controller)
LxWxH(mm): 3740x1407x1581 / 3900x1150x1830

Installed / Packed Dimensions:

Printing Speeds:

Draft:

Colour: 59 m²/h

CWC: 39 m²/h

CWKWC: 15.4 m²/h

720 × 1200 dpi

Production:

Colour: 53 m²/h

CWC: 33 m²/h

CWKWC: 12.5 m²/h

720 × 1200 dpi

High-Res:

Colour: 47 m²/h

CWC: 27 m²/h

720 × 1800 dpi

Photo:

Colour: 41 m²/h

CWC: 21 m²/h

CWKWC: 8 m²/h

720 × 1800 dpi
