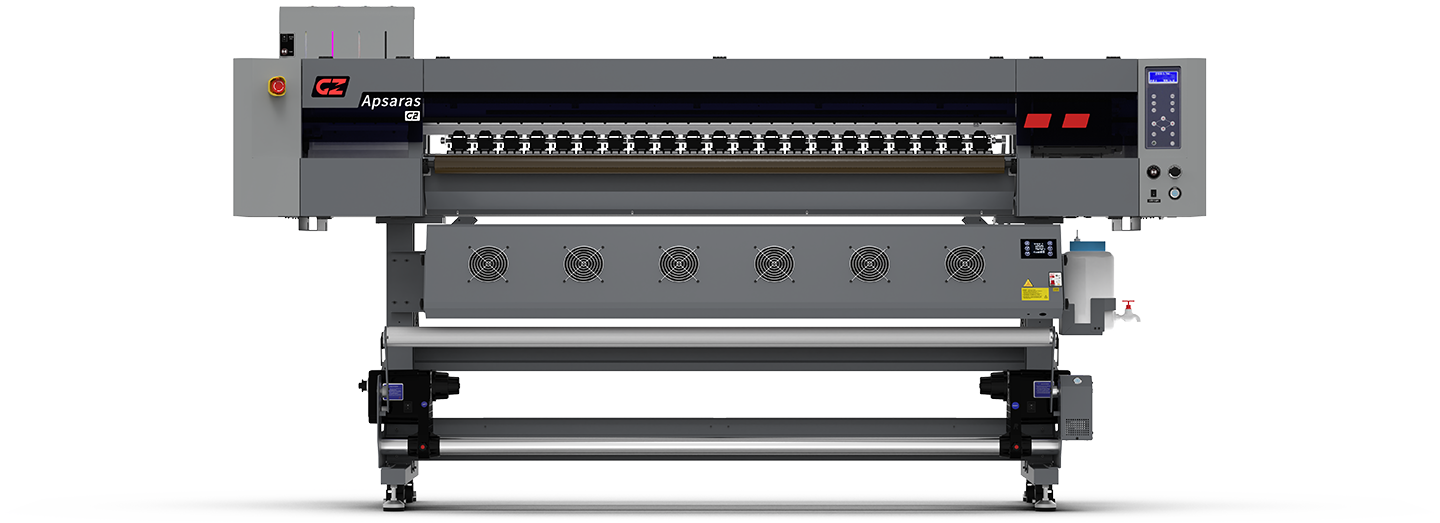

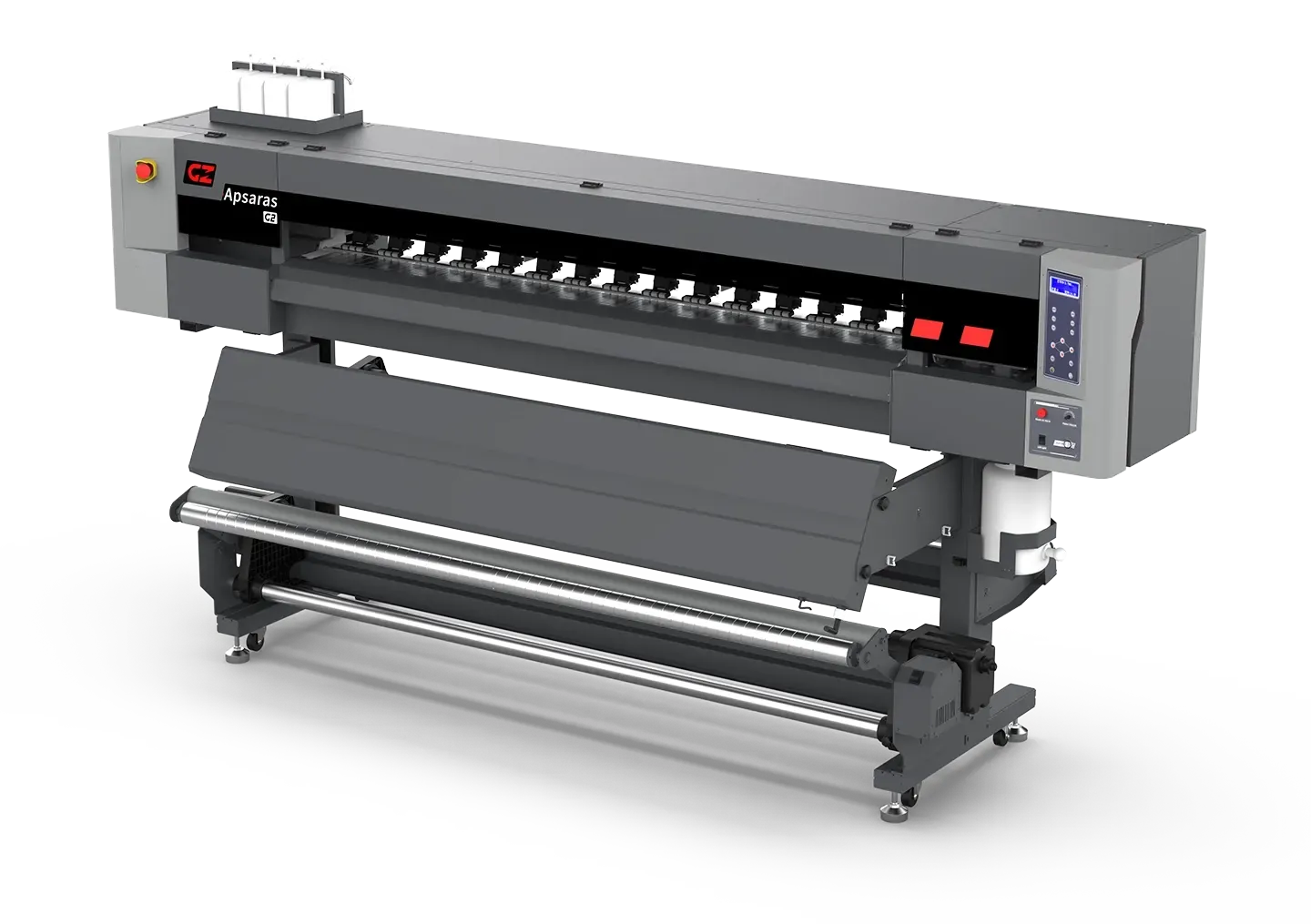

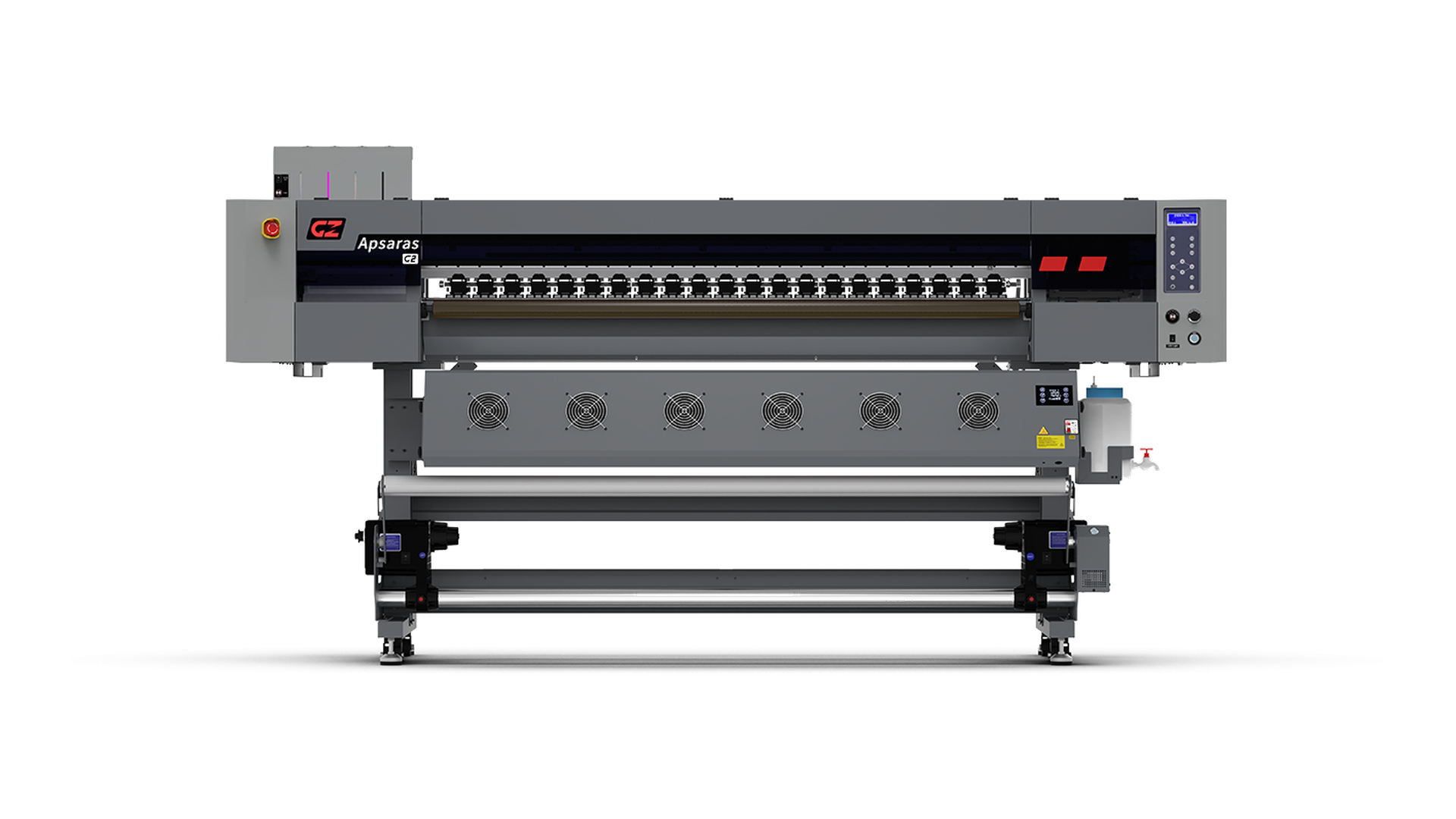

Apsaras G2
1.6m Dual-Head Transfer Sublimation Printer
Apsaras G2

Apsaras G2

  • Dual Epson i3200-A1 heads – ensures high-speed, reliable printing with exceptional detail and colour accuracy.
  • Eco-certified sublimation inks – OEKO-TEX approved, safe and sustainable for textile applications.
  • High-speed production – up to 95 m²/h, perfect for soft signage and fabrics.
  • Auto capping & wiping system – minimises downtime, extends head life, and ensures consistent quality.
  • Grooving anti-wrinkle platen – stabilises media handling, prevents creasing, and supports smooth transfers.
  • Intelligent IR drying system – sectional control provides even drying and reduced turnaround times.

Core Features:

Dual Epson i3200 heads
Eco-certified sublimation inks
95 m²/h high speed
Auto capping & wiping
Anti-wrinkle platen design
Intelligent IR drying

Specifications:

Apsaras G2

Print Head:

Dual Epson i3200-A1 Print Heads

Media Width:

Up to 1620mm Width

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Media Type:

Transfer Paper

Paper GSM:

Min. 55gsm

Platen
System:

Grooving Anti-Wrinkle Platen

Drying System:

Smart-Zone IR Dryer

Roll Diameter:

Up to 150mm

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Ink Tank Capacity:

2000ml

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

FlexiPRINTDX 22 + GZ Printer Manager

Power Req:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 5.5A + IR Dryer: 18A + 28A

N.W. / G.W:

240kgs / 360kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 2760×650×1280 / 2880×1090×750
LxWxH(mm): 2760×650×1280 / 2880×1090×750

Installed / Packed Dimensions:

Printing Speeds:

Draft:

95 m²/h

720 × 600 dpi

Production:

85 m²/h

720 × 600 dpi

High-Res:

47 m²/h

720 × 1200 dpi

Photo:

37 m²/h

720 × 1200 dpi
