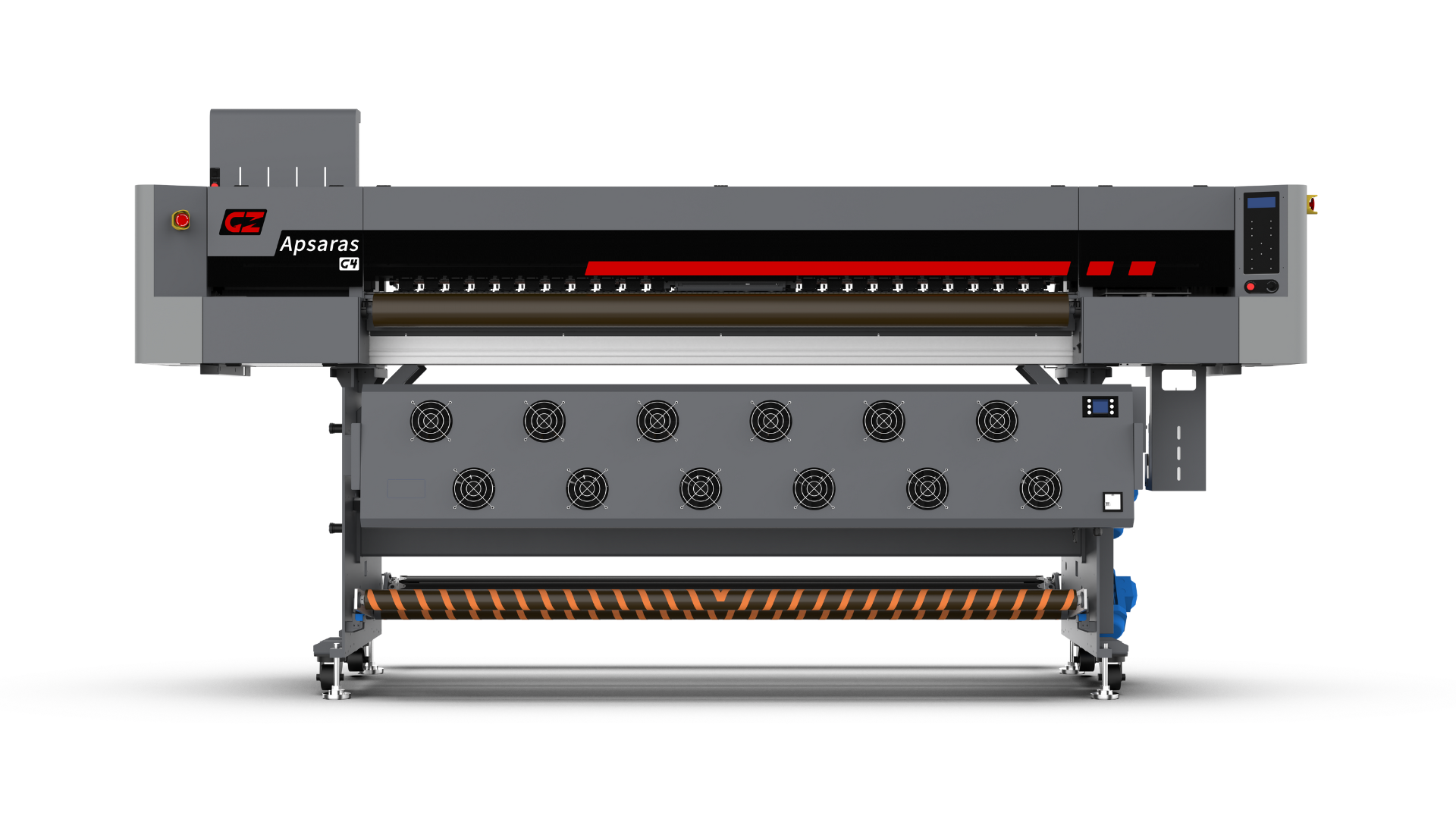

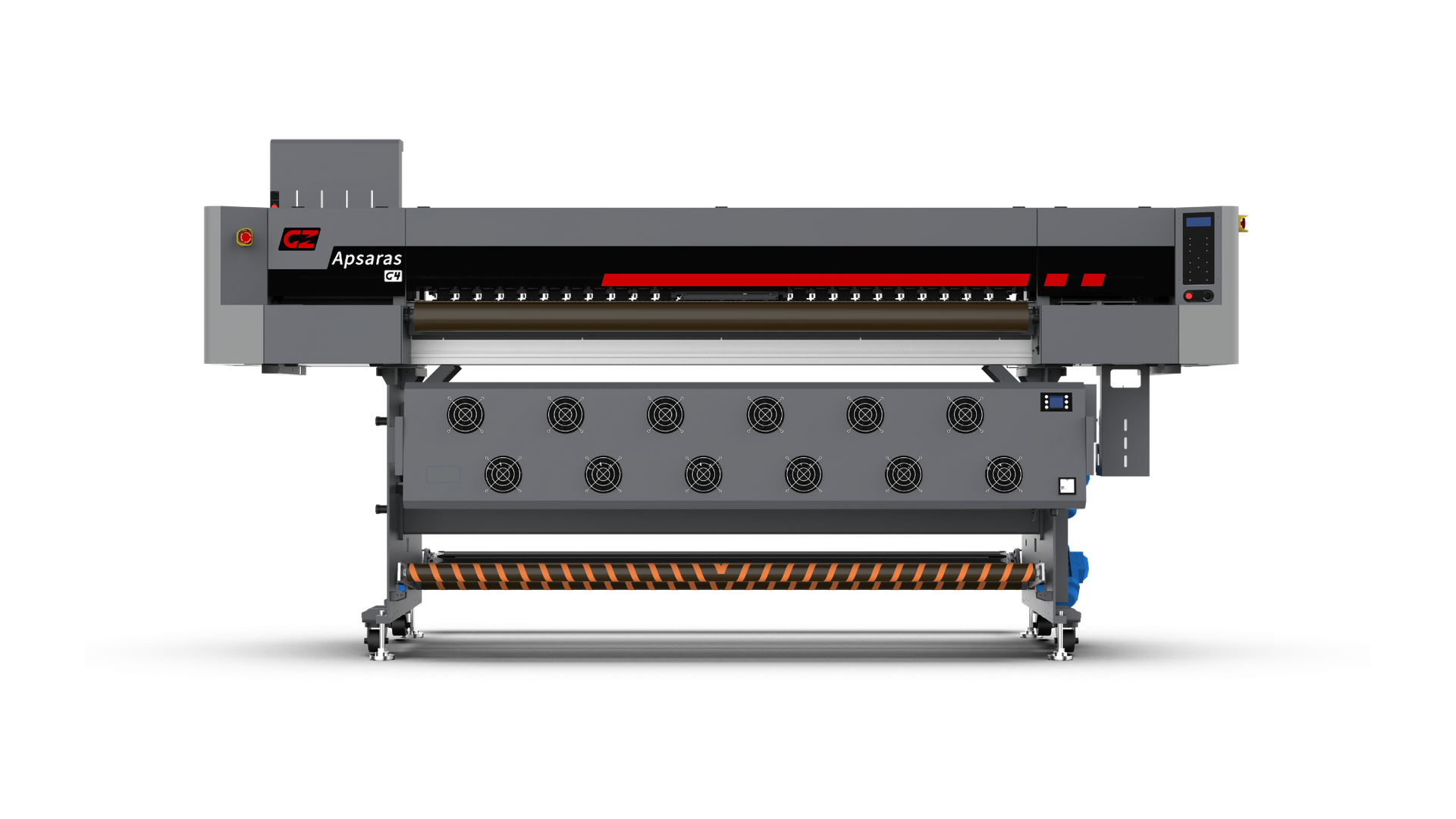

Apsaras G4
1.9 m high-speed transfer sublimation printer
Apsaras G4

Apsaras G4

  • 4 Epson i3200-A1 heads – staggered print head array delivers up to 185 m²/h productivity.
  • Eco-certified sublimation inks – GS High Density inks, OEKO-TEX approved for safe textile production.
  • High-speed sublimation printing – powerful 1.95m width solution for banners, apparel, and soft signage.
  • High-precision media system – industrial feeding with air shafts ensures stable, accurate fabric handling.
  • Grooving anti-wrinkle platen – prevents creasing and guarantees smooth transfers across varied substrates.
  • Intelligent IR drying system – sectional heating ensures even curing and faster, reliable turnaround.

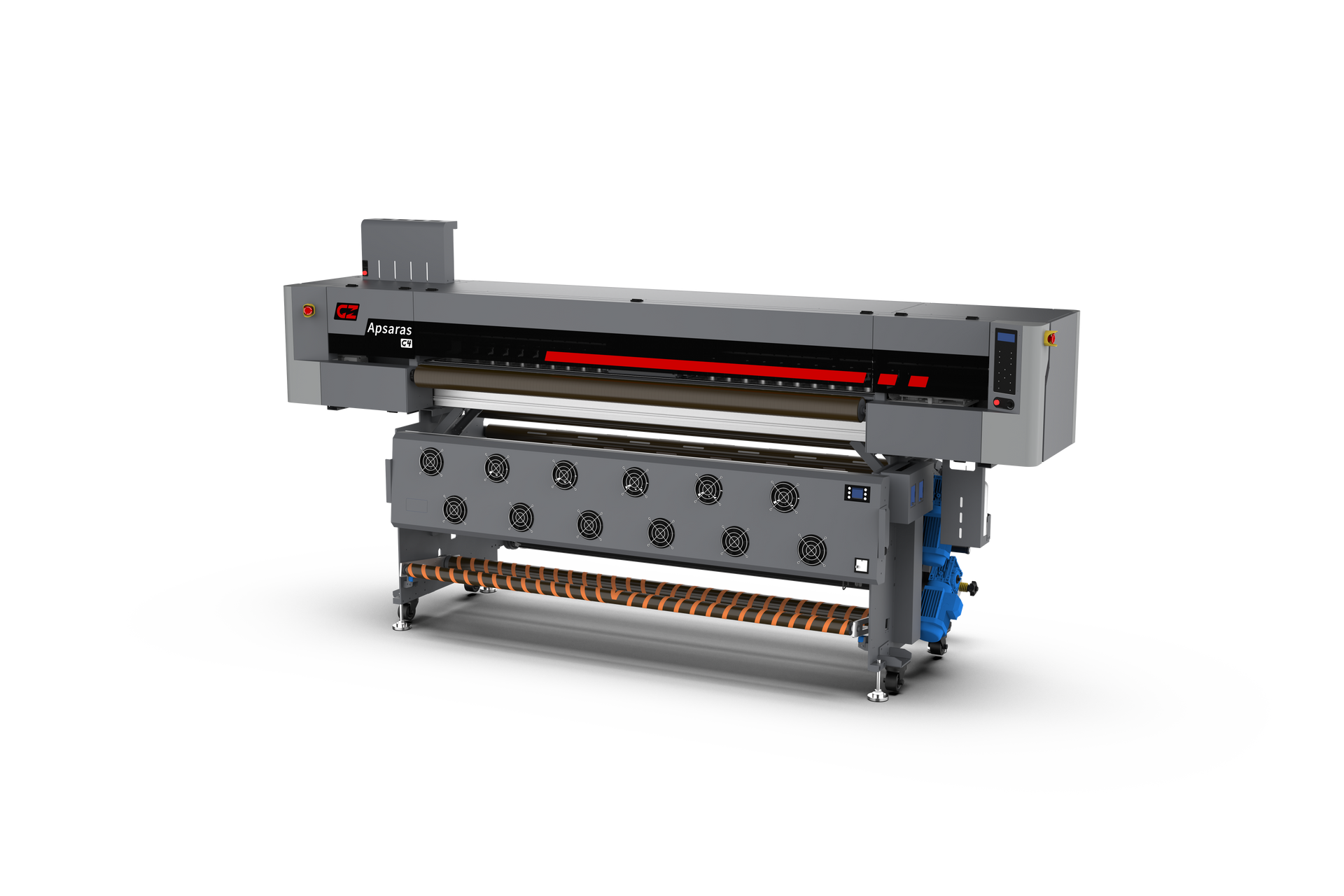

Apsaras G24

Core Features:

4 Epson i3200 heads
OEKO-TEX certified inks
185 m²/h output
Precision media system
Anti-wrinkle platen design
Sectional IR dryer

Specifications:

Apsaras G4

Print Head:

Four Epson i3200-A1 Print Heads

Media Width:

Up to 1950mm Width

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Media Type:

Transfer Paper

Paper GSM:

Min. 31gsm

Platen
System:

Grooving Anti-Wrinkle Platen

Drying System:

Smart-Zone IR Dryer

Roll Diameter:

Up to 150mm

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Ink Tank Capacity:

3000ml

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

neoStampa 10 / Ergo16 + GZ Printer Manager

Power Req:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 5.5A + IR Dryer: 18A + 28A

N.W. / G.W:

525kgs / 750kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 3500×1280×1790 / 2880×1090×750
LxWxH(mm): 3500×1280×1790 / 2880×1090×750

Installed / Packed Dimensions:

Printing Speeds:

Draft:

185 m²/h

360 × 1200 dpi

Production:

165 m²/h

360 × 1200 dpi

High-Res:

102 m²/h

720 × 1200 dpi

Photo:

88 m²/h

720 × 1200 dpi
