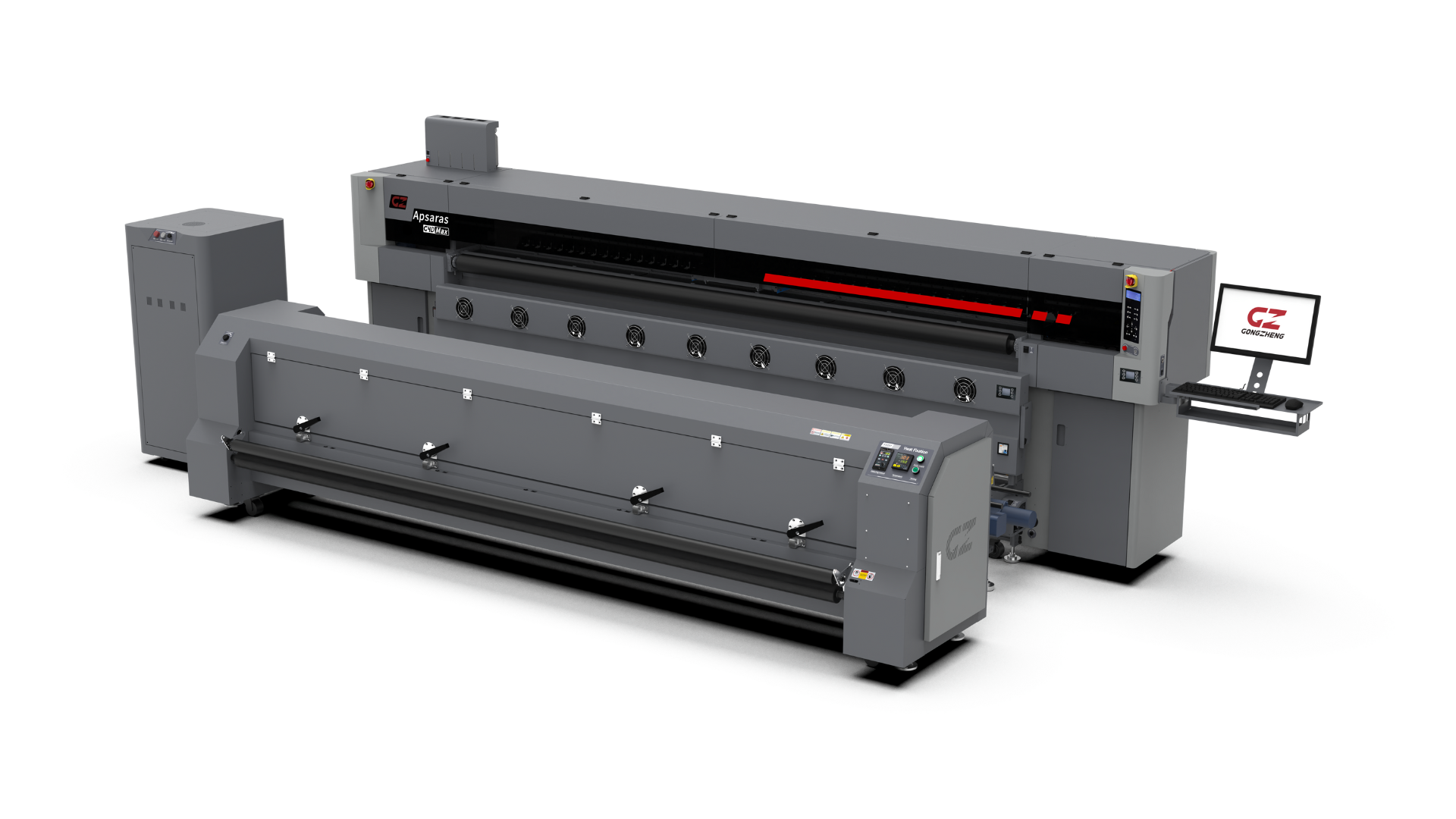

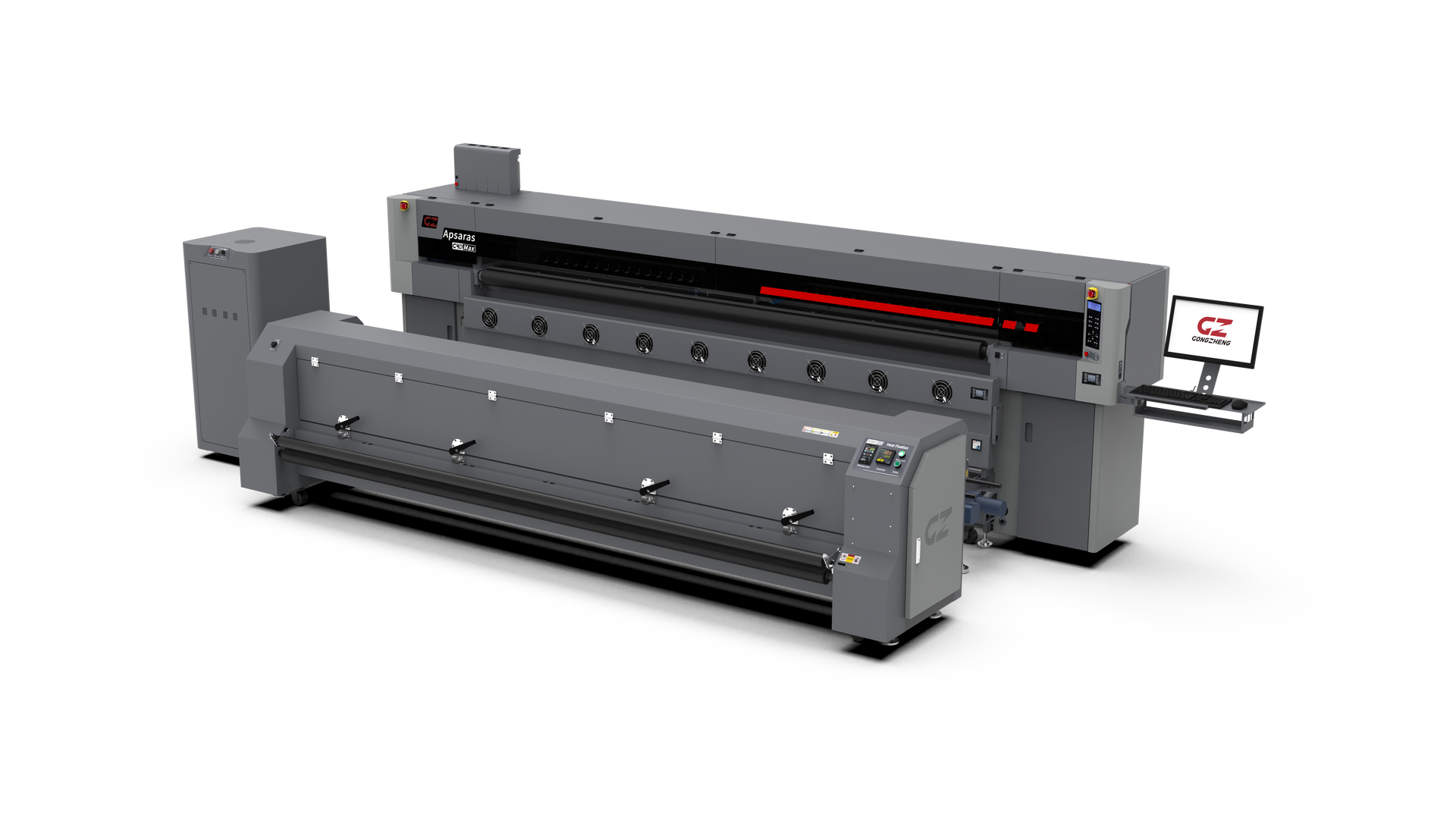

Apsaras G4D Max
3.25 m hybrid textile transfer sublimation system
Apsaras G4D Max

Apsaras G4D Max

  • Hybrid printing technology – supports both direct sublimation and paper transfer in one machine.
  • 4 Epson i3200-A1 heads – industrial-grade print heads deliver sharp detail and consistent high-speed output.
  • Extra-wide 3.2m format – perfect for large-scale textiles, soft signage, and exhibition graphics.
  • Inline & offline order solutions – flexible workflows for both customised jobs and mass production runs.
  • Eco-certified sublimation inks – OEKO-TEX approved, safe and sustainable for textile applications.
  • Intelligent heat fixation unit – AI temperature control ensures vibrant colours and durable, washable prints.

Core Features:

Hybrid sublimation technology
4 Epson i3200 heads
3.2m super-wide format
Inline/offline workflows
OEKO-TEX sublimation inks
Ai heat fixation

Specifications:

Apsaras G4D Max

Print Head:

Four Epson i3200-A1 Print Heads

Media Width:

Up to 3200mm Width

Ink:

GS High Density Sublimation Transfer ink OEKO TEX Certified

Media Type:

Wall Fabric, Banners, Transfer Paper

Paper GSM:

Min. 45gsm

Platen
System:

Interchangable Hybrid Platen Configuration

Drying System:

External IR Dryer

Roll Diameter:

Up to 300mm

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Ink Tank Capacity:

3000ml

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

neoStampa Delta + GZ Printer Manager xxxx Colour Booster (Optional)

Power Req:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 18A + IR Dryer: 44A + Heat Fixation: 2 x 28A

N.W. / G.W:

1368kgs / 1008kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 4728×1280×1720 / 4900×1080×1870 Heat Fixation Unit: 4100x 1350x 1000 / 4250x 800x 1200
LxWxH(mm): 4728×1280×1720 / 4900×1080×1870 Heat Fixation Unit: 4100x 1350x 1000 / 4250x 800x 1200

Installed / Packed Dimensions:

Printing Speeds:

Draft:

110 m²/h

360 × 1800 dpi

Production:

82 m²/h

720 × 1200 dpi

High-Res:

64 m²/h

360 × 1800 dpi

Photo:

55 m²/h

720 × 1200 dpi
