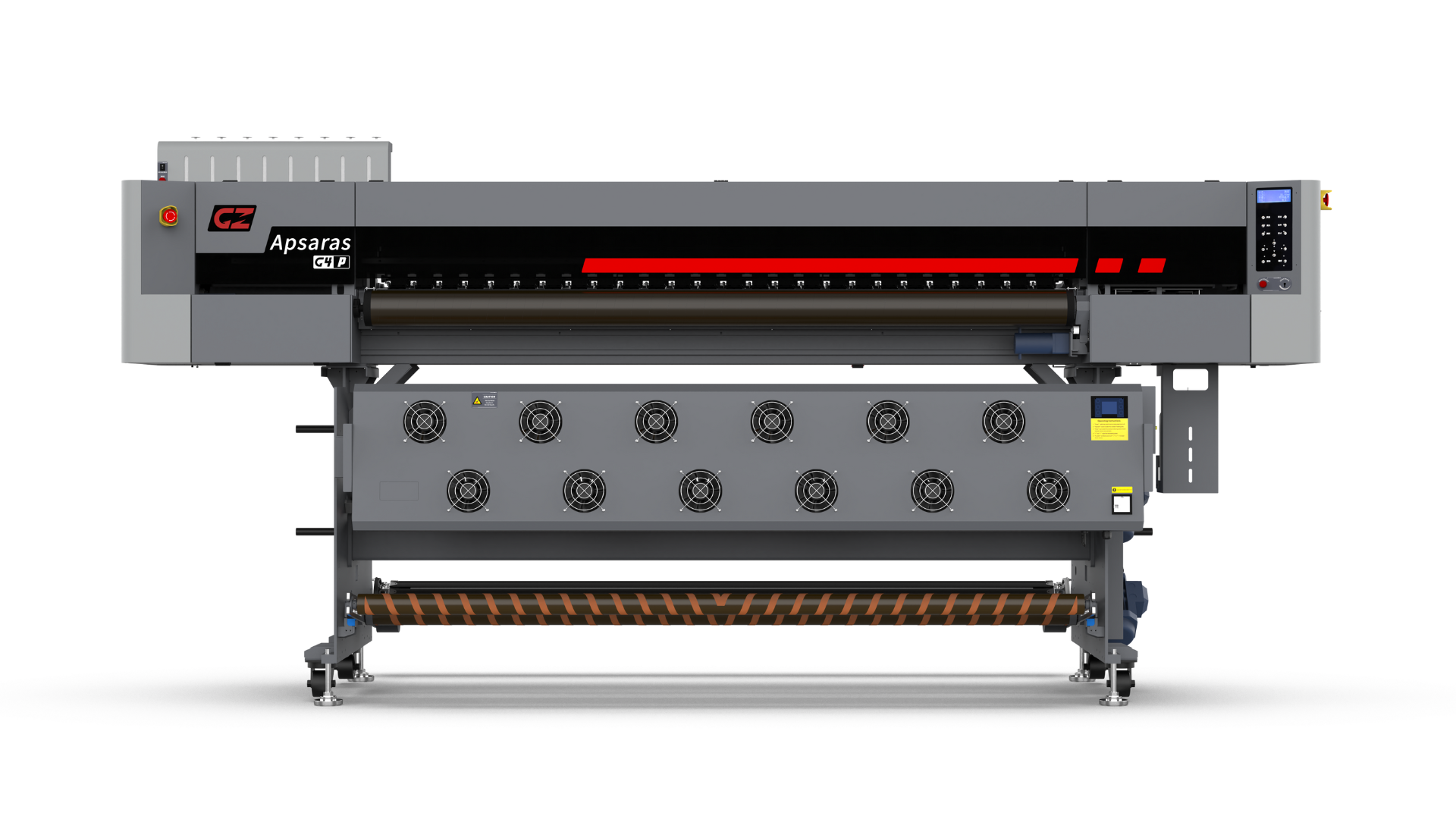

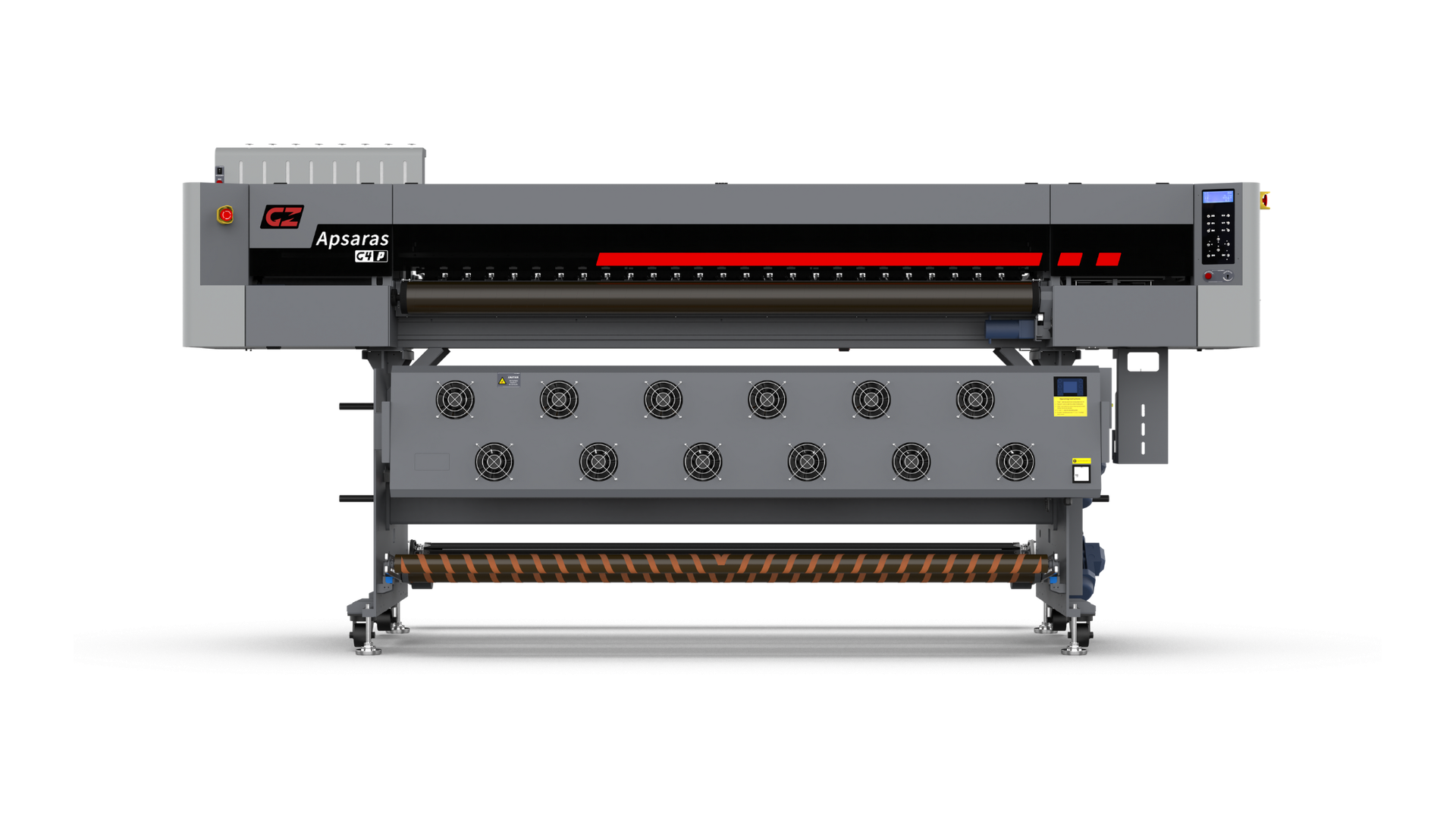

Apsaras G4P
1.9 m four-head direct pigment printer
Apsaras G4P

Apsaras G4P

  • 4 Epson i3200-A1 heads – advanced variable drop printing delivers smooth gradients, sharp text, and vivid colour.
  • Direct textile printing solution – print directly onto fabric without transfer paper for streamlined production.
  • High-speed performance – up to 148 m²/h draft and 98 m²/h production output.
  • Unique media handling system – supports both stretchable and non-stretchable fabrics with precision feeding.
  • Intelligent printing platform – prevents ink contamination, reduces waste, and ensures stable fabric movement.
  • Eco-certified pigment inks – OEKO-TEX compliant for safe, sustainable, and versatile textile applications.

Core Features:

4 Epson i3200 heads
Direct-to-textile pigment
148 m²/h draft speed
Stretch fabric handling
Intelligent print platform
Eco pigment inks

Specifications:

Apsaras G4P

Print Head:

Four Epson i3200-A1 Print Heads

Media Width:

Up to 1950mm Width

Ink:

GS Specialty Pigment Ink

Media Type:

Wall Fabric, Banners

Paper GSM:

Min. 45gsm

Platen
System:

Anti-Pooling Platen System

Drying System:

Ai Intelligent Temperature Controller

Roll Diameter:

Up to 300mm

Ink Supply System:

Bulk Ink Supply System With Ink Cartridge

Ink Tank Capacity:

2000ml

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp:         18℃ - 30℃

Humidity:  35% - 65%

Software:

Inedit neoStampa + GZ Printer Manager

Power Req:

Single Phase, 50Hz / AC, 220V ± 10%, Printer: 18A + IR Dryer: 44A + Heat Fixation: 2 x 28A

N.W. / G.W:

542kgs / 752kgs

Dimensions:
(Installed / Boxed)

LxWxH(mm): 4728×1280×1720 / 4900×1080×1870 Heat Fixation Unit: 4100x 1350x 1000 / 4250x 800x 1200
LxWxH(mm): 4728×1280×1720 / 4900×1080×1870 Heat Fixation Unit: 4100x 1350x 1000 / 4250x 800x 1200

Installed / Packed Dimensions:

Printing Speeds:

Draft:

4-Colour:      720 × 600 dpi     148㎡/h     8-Colour:      720 × 600 dpi      80㎡/h

Production:

4-Colour:     720 × 600 dpi      98㎡/h     8-Colour:     720 × 600 dpi     52㎡/h

High-Res:

4-Colour:      720 × 1200 dpi       65㎡/h      8-Colour:     720 × 600 dpi     26㎡/h

Photo:

4-Colour:      720 × 1200 dpi       48㎡/h     8-Colour:     720 × 1200 dpi     18㎡/h
