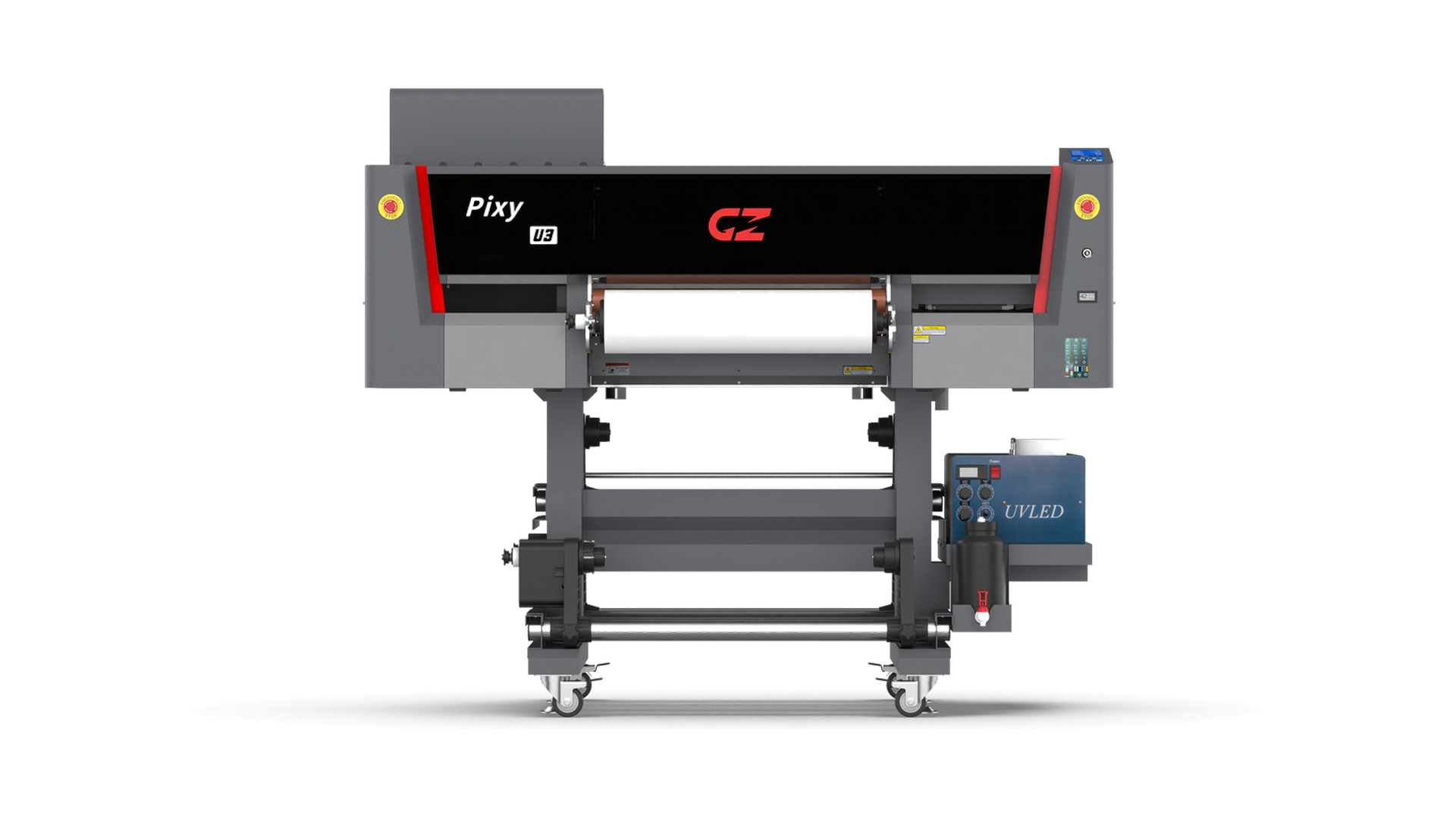

Pixy U3L
Entry-level 60cm UV DTF Printer
Pixy U3L

Pixy U3L

  • Three Epson i1600-U1 heads - reliable entry-level performance.
  • 60cm UV DTF film support - print wide, vibrant designs with ease.
  • Multi-layer printing - enables colour, white, and varnish in one pass.
  • Dual heated rubber rollers - smooth inline lamination without wrinkles.
  • Smart touch-screen control - intuitive interface for effortless operation.

Core Features:

Affordable Entry Point
Dual Heated Rubber Rollers
Smart Touch Control
Up to 2400dpi Resolution
White Ink Recirculation
5㎡/hr Production Speed

Specifications:

Pixy U3L

Print Head:

Epson i1600-U1 Print Heads

Media Width:

600mm Width

Ink:

GZ REI-3 Flexible UV Ink

Film Type:

A+B UV DTF Film

Curing System:

Dual Water Chilled UV Lamps

Cleaning System:

GZ Optimised Capping Station

Multi-Layer Printing:

Colour, C.W.C, C.W.V, C.W.C.W.C

Colour Config:

K. C. Y. M. + White + Varnish

Ink Supply System:

6-Colour Bulk Ink Supply System with White Recirculation and Alarm

Ink Tank Capacity:

1800ml

N.W. / G.W:

180kg / 304kg

Dimensions:
(Installed / Boxed)

LxWxH(mm)1800x863x1520 / 2300x1010x790

Data Interface:

External: Ethernet

Internal: Fiber Optical

Working Climate:

Temp: 20℃ - 30℃

Humidity: 40% - 60%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm)1800x863x1520 / 2300x1010x790

Installed / Packed Dimensions:

Printing Speeds:

Production:

5 m²/h

720 × 1200 dpi

High Res:

3.5 m²/h

720 × 1800 dpi

Photo:

2 m²/h

720 × 2400 dpi
