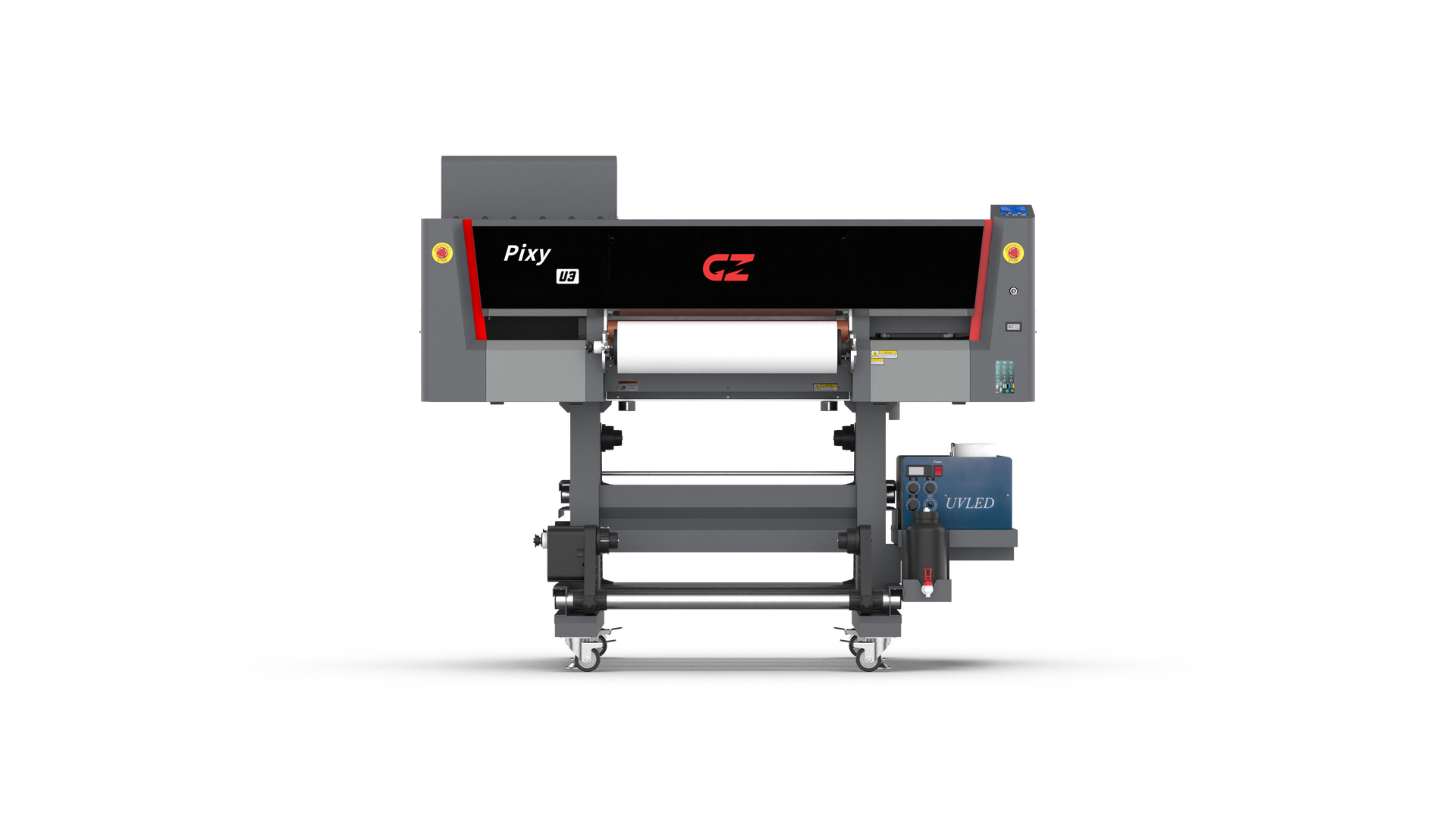

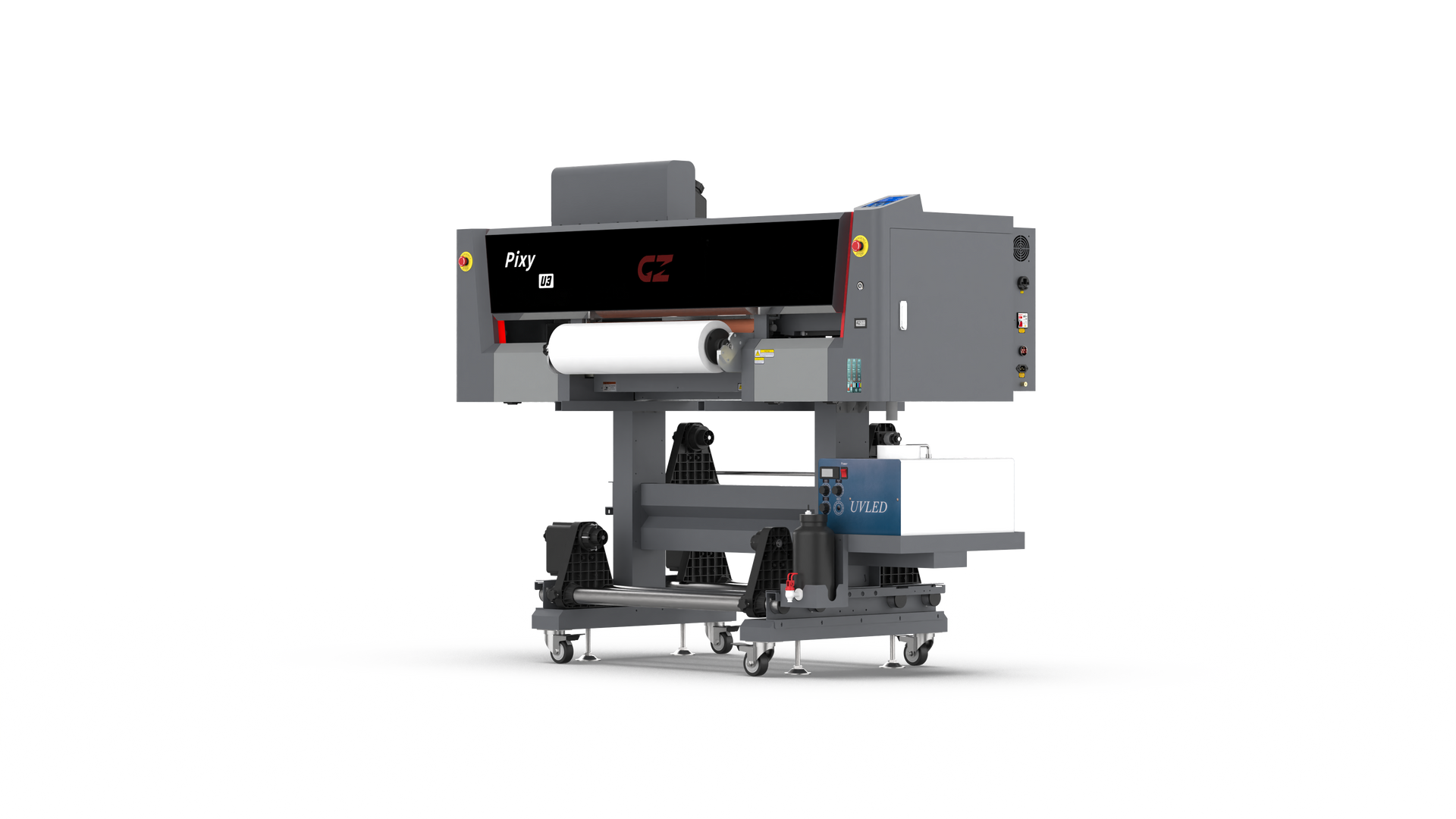

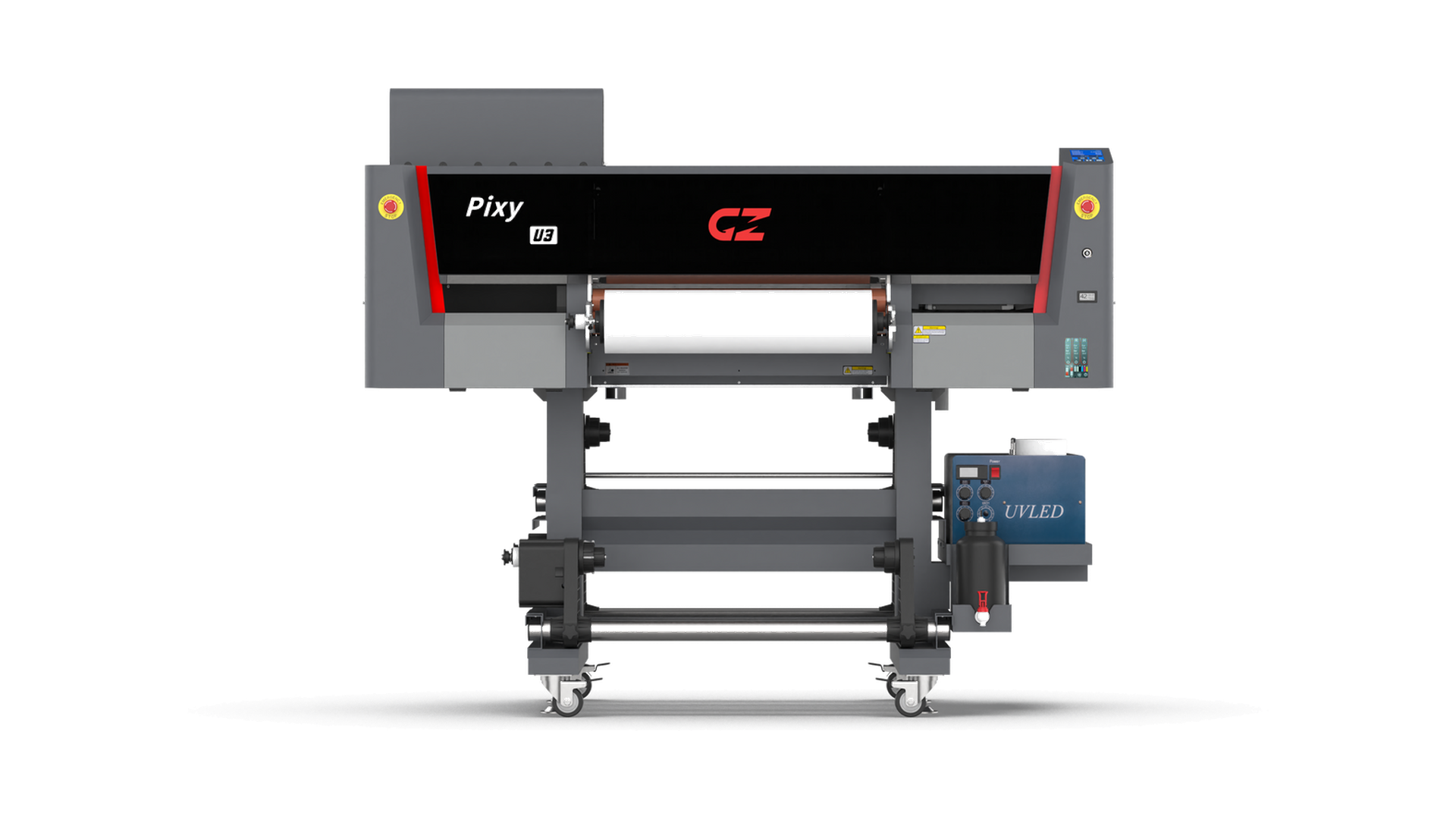

Pixy U3T
60cm UV DTF Garment Embroidery Printer
Pixy U3T

Pixy U3T

  • Three Epson i3200-U1 heads - deliver precision for detailed embroidery-style transfers.
  • Textured 3D embroidery effects - create raised, tactile prints on clothing.
  • Double white ink channels - maximum opacity on dark garments without varnish.
  • Smart touch-screen control - intuitive interface for effortless operation.

Core Features:

UV DTF Embroidery on Garment

Double White Ink Opacity

Smart Touch Control

Garment & Textile Focus

Textured 3D Print Effects

Bags, Hats & Apparel Ready

Specifications:

Pixy U3T

Print Head:

Epson i3200-U1 Print Heads

Media Width:

600mm Width

Ink:

GZ REI-3 Flexible UV Ink

Film Type:

A+B DTF Embroidery Film

Curing System:

Dual Water Chilled UV Lamps

Cleaning System:

GZ Optimised Capping Station

Multi-Layer Printing:

Colour, W.C, W.W.C

Colour Config:

W. W. K. C. M. Y (Double White, No Varnish)

Ink Supply System:

6-Colour Bulk Ink Supply System with White Recirculation and Alarm

Ink Tank Capacity:

1800ml

N.W. / G.W:

180kg / 304kg

Dimensions:
(Installed / Boxed)

LxWxH(mm)1800x863x1520 / 2300x1010x790

Data Interface:

External: Ethernet

Internal: Fiber Optical

Working Climate:

Temp: 20℃ - 30℃

Humidity: 40% - 60%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm)1800x863x1520 / 2300x1010x790

Installed / Packed Dimensions:

Printing Speeds:

Production:

10 m²/h · 720 × 1200 dpi

High Res:

7 m²/h · 720 × 1800 dpi

Photo:

4 m²/h · 720 × 2400 dpi
