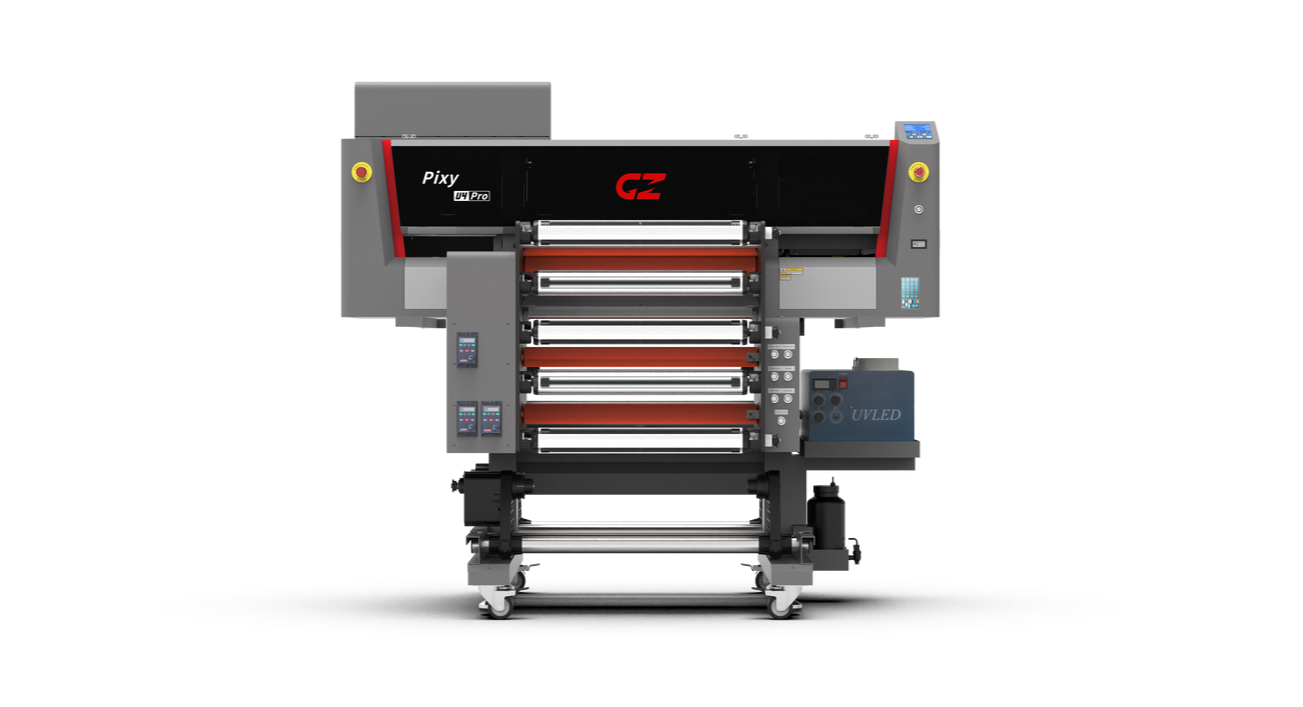

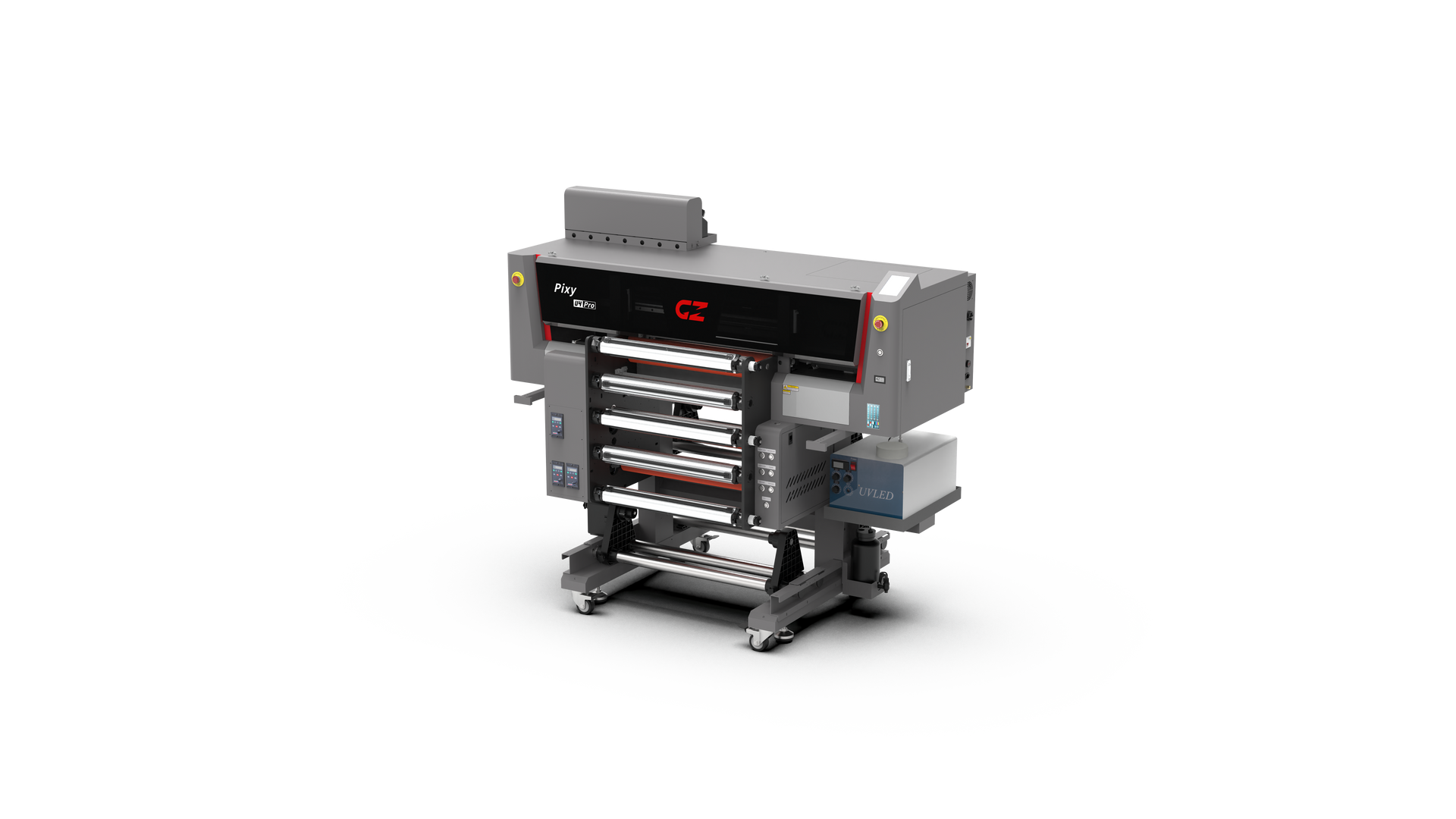

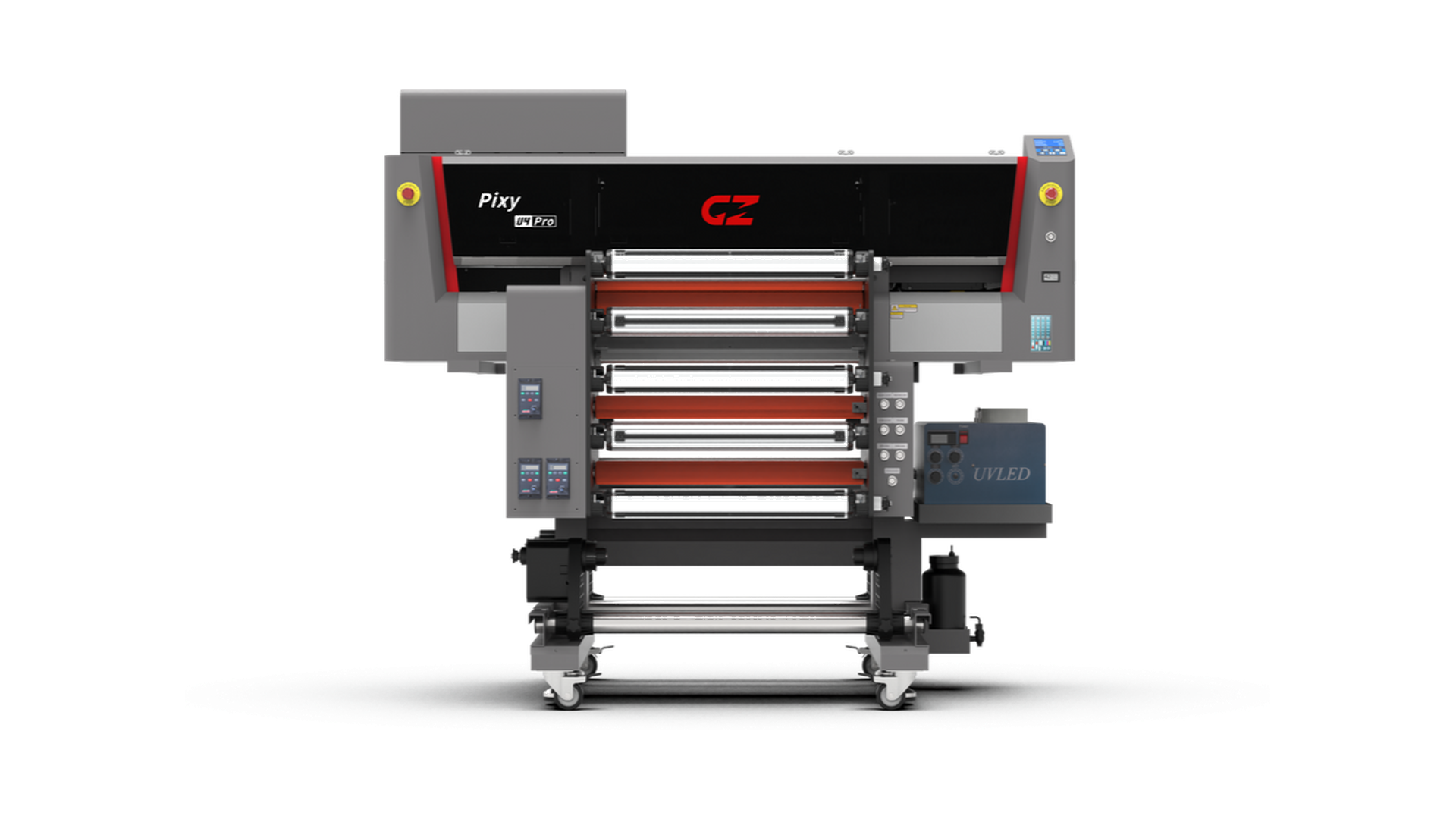

Pixy U4 Pro
60cm UV DTF Printer with Gold and Silver Foiling
Pixy U4 Pro

Pixy U4 Pro

  • Four Epson i3200-U1 heads - quad-head configuration for precision and speed.
  • Gold and silver foiling - integrated hot stamping for premium metallic finishes.
  • Waste removal all-in-one - automatic waste film removal built into the system.
  • 6-colour ink system - CMYK + White + Varnish + Gold / SIlver Foil for maximum versatility.
  • Smart touch-screen control - intuitive interface for effortless operation.
Pixy U4 PRO

Core Features:

Gold & Silver Foiling

Waste Removal All-in-One

Smart Touch Control

Hot Stamping Integrated

Four i3200-U1 Print Heads

Premium Surface Finishing

Specifications:

Pixy U4 Pro

Print Head:

Four Epson i3200-U1 Print Heads

Media Width:

600mm Width

Ink:

GZ REI-3 Flexible UV Ink

Film Type:

A+B UV DTF Film + Gold /  Silver foil

Curing System:

Dual Water Chilled UV Lamps

Cleaning System:

GZ Optimised Capping Station

Multi-Layer Printing:

Colour, C.W.C, C.W.V, C.W.C.W.C, C.W.GV

Colour Config:

W + K. C. M. Y + V + GV (Gold Varnish)

Ink Supply System:

8-Colour Bulk Ink Supply System with White Recirculation and Alarm

Ink Tank Capacity:

1800ml

N.W. / G.W:

196kg / 344kg

Dimensions:
(Installed / Boxed)

LxWxH(mm)1800x863x1520 / 2300x1010x790

Data Interface:

External: Ethernet

Internal: Fiber Optical

Working Climate:

Temp: 20℃ - 30℃

Humidity: 40% - 60%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

Power Req:

Single phase, 50Hz / AC, 220V ± 10%, 5A (Printer + UV Control)
LxWxH(mm)1800x863x1520 / 2300x1010x790

Installed / Packed Dimensions:

Printing Speeds:

Production:

10 m²/h · 720 × 1200 dpi

High Res:

7 m²/h · 720 × 1800 dpi

Photo:

4 m²/h · 720 × 2400 dpi
