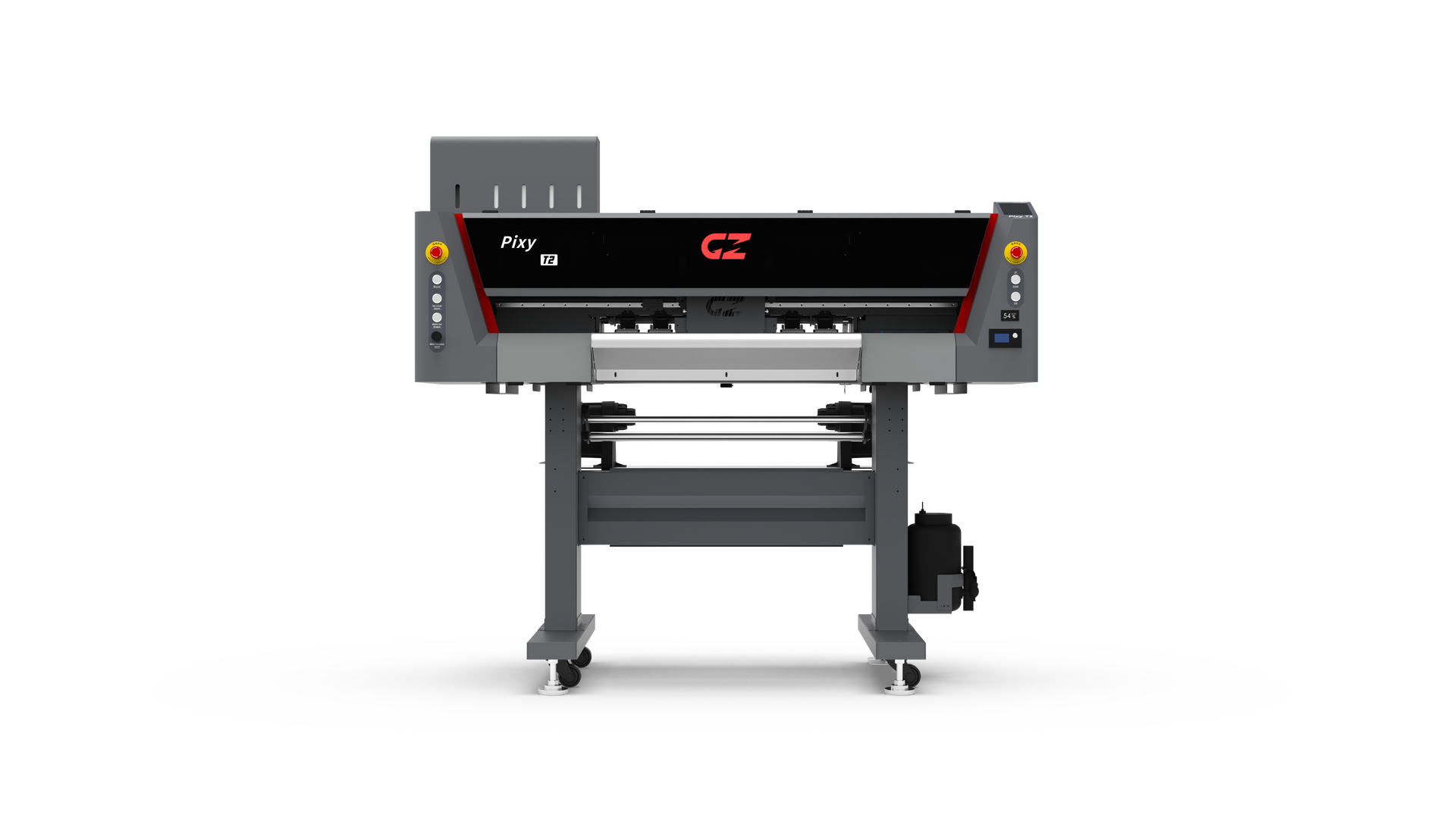

Pixy T2
Compact 60cm DTF Printer with Shaker and Extractor
Pixy T2

Pixy T2

  • Two Epson i3200 A1 Print Heads  – clear visibility and easy operator interaction.
  • High-Precision Motion System – stable, low-noise movement with aluminium beam support.
  • Automatic Moisturising System – prolongs printhead life with low-maintenance care.
  • Active Tension Control Bar – wrinkle-free media handling and transport protection.
  • Smart Touch Control – convenient control for smooth, efficient operation.
  • White Ink Recirculation – prevents clogging and maintains consistent print quality.
  • Shaker and Dryer Unit (Optional) - seamless powder and filter application ensures long run-time.


Core Features:

High Standard Motion System

Superior Print Quality

White Ink Recirculation System

Head Maintenenance Flushing System

Smart Touch Control

Inline Shaker and Filtration Unit

Specifications:

Pixy T2

Print Head:

Dual Epson i3200-A1 Print Heads

Media Width:

600mm Width

Ink:

GS Original Transfer Pigment Ink

Film Type:

DTF Transfer Film

Cleaning System:

Head Maintenance Flushing System

Head Configuration:

K.C.M.Y. + White

Ink Supply System:

Bulk Ink Supply with White Ink Circulation System

Ink Tank Capacity:

1500ml

Data Interface:

External: Ethernet

Internal:  Fiber Optical

Working Climate:

Temp: 18℃ - 30℃

Humidity: 55% - 75%

Software:

FlexiPRINT/ ONYX (Optional) + GZ Printer Manager

N.W. / G.W:

Printer: 170kgs / 240kgs

Filter:     95kgs / 122kgs

Shaker: 182kgs / 288kgs

Power Requirements:

Single Phase, 50Hz / AC, 220V ± 10%, 2.27A + 2A (filter) + 23A (Shaker)

Power Consumption:

Printer: 500W + Shaker: 5000W + Filter: 440W

Dimensions:
(Installed)

Shaker: LxWxH(mm) 2614x1022x1092

Filter:     LxWxH(mm) 530x571x1366

Dimensions:
(Packaged)

Shaker: LxWxH(mm) 1800x1130x1130

Filter:     LxWxH(mm) 680x630x1540

LxWxH(mm)1661x815x1507 / 2200x960x790

Installed / Packed Dimensions:

Printing Speeds:

4- Pass:

720 x 1200   15㎡/h

6 - Pass:

720 x 1800   10㎡/h
