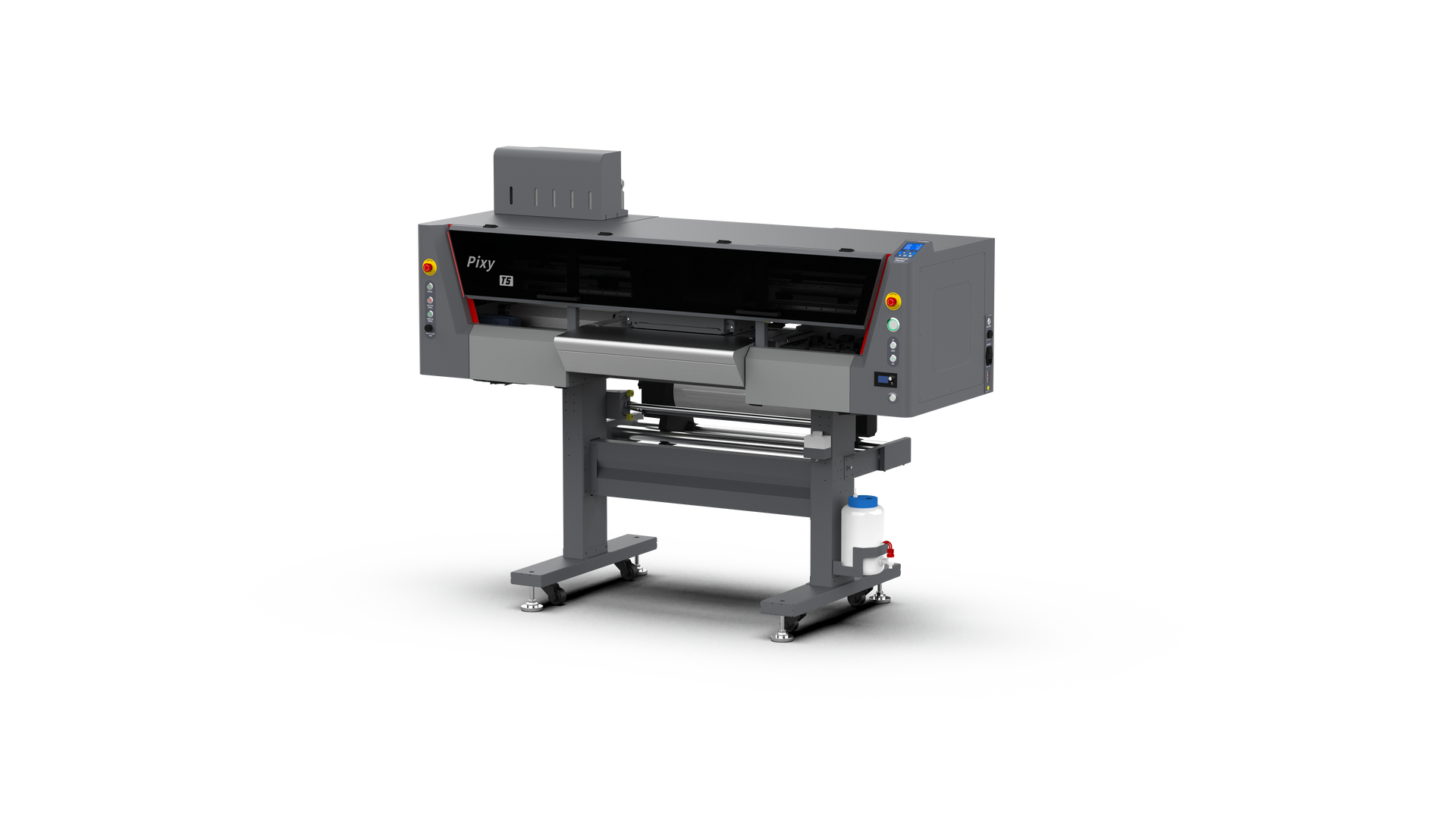

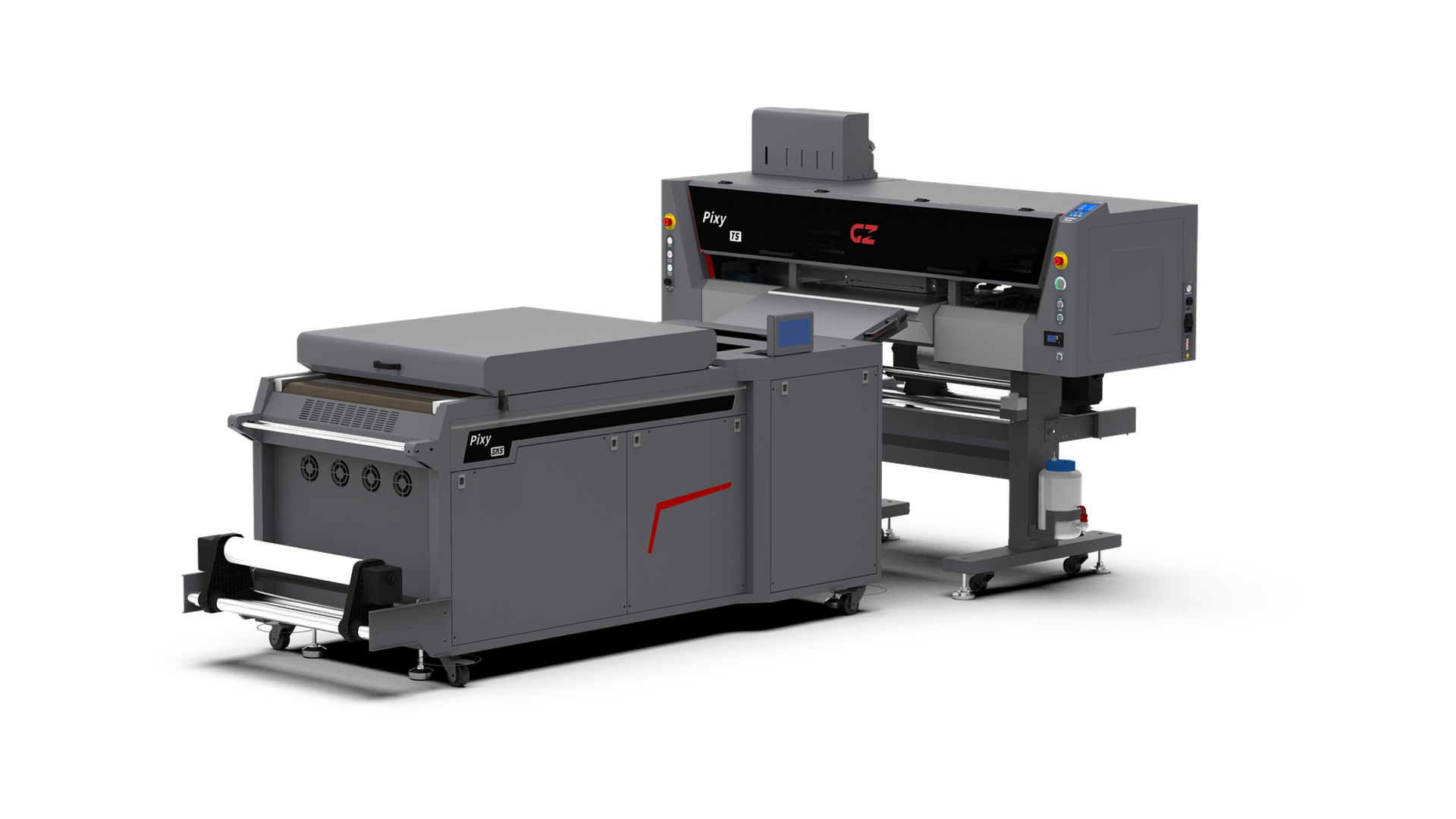

Pixy T5
High-Speed 60cm DTF Printer with 5 Print Heads

Pixy T5

  • Five Epson i3200-A1 Print Heads – production-speed five-head config for high throughput
  • High Standard Motion System – stable, low-noise movement with aluminium beam and THK linear guide
  • User-Friendly Design – LED lights, front-mounted buttons and real-time data displays
  • Convenient Moisturizing System – one week maintenance-free operation, extends printhead life
  • Active Tension Bar – wrinkle-free printing with constant tension and reinforced platform
  • Available with Fluorescent Solution – expanded colour gamut for outdoor clothing
  • Auto Capping & Wiping System – automated head maintenance for consistent quality
  • THK Quiet Guide – precision linear guide for silent, stable carriage movement


Core Features:

Five i3200-A1 Print Heads
28 sqm/hr Production Speed
Smart Touch Control

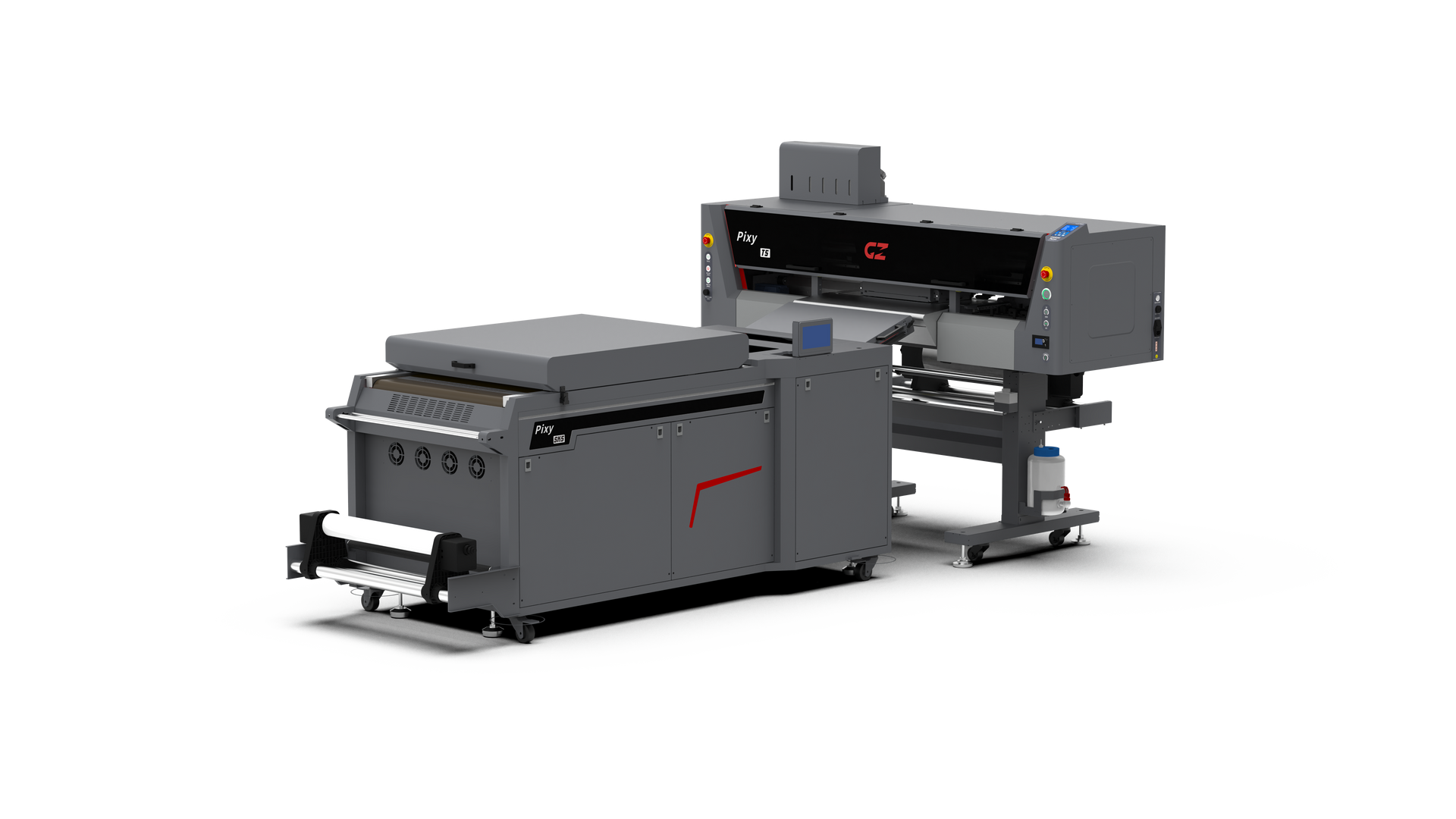

Paired with Pixy SK5 Shaker
Dual White Ink Channels
Works on Any Fabric Colour

Specifications:

Pixy T5

Print Head:

Five Epson i3200-A1 Print Heads

Media Width:

600mm Width

Ink:

GS Original Transfer Pigment Ink

Film Type:

Transfer Film

Cleaning System:

Auto Capping & Wiping System

Head Configuration:

3x K.C.M.Y + 2x White

Ink Supply System:

1.5-Litre Bulk Ink Supply System with White Ink Recirculation

Ink Tank Capacity:

1500ml

Data Interface:

External: Ethernet
Internal: Fiber Optical

Working Climate:

Temp: 18℃ - 30℃
Humidity: 35% - 65%

Software:

Onyx DTF + GZ Printer Manager

N.W. / G.W:

340KGS / 258KGS

Power Requirements:

Single Phase, 50Hz / AC, 220V ± 10%, 4A

Power Consumption:

Dimensions:
(Installed)

Printer: 1995x950x1610 Shaker: 2700x963x1043

Dimensions:
(Packaged)

Printer: 2160x1120x750 Shaker: 2700x1150x1500
LxWxH(mm)1995x950x1610 / 2160x1120x750

Installed / Packed Dimensions:

Printing Speeds:

4- Pass:

6 - Pass:

28 m²/h

720 × 1800 dpi
